S40E Slotting Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

EMM

Extreme Machinery Manufacture Co., Ltd. (Jingjiang)

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name EMM

Model Number S40E

Dimension(L*W*H) 1970*1365*2310mm

Weight 2900kg

Certification CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

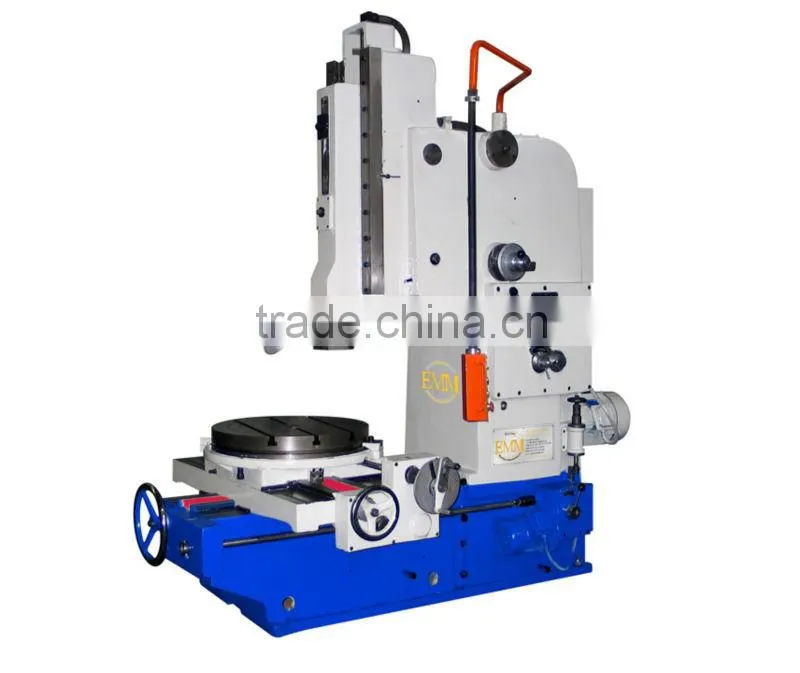

S40E Slotting Machine
Being designed for cutting various planes, formed surface and key way of workpiece, the machine

S40E slotting machine

Description		S40E
Max.slotting length	mm	400
Number of ram reciprocation per minute	No. /min	20,32,50,80
Inclination of ram	°	0—8
Diameter of worktable	mm	φ630
Adjusting vertical distance of slide block	mm	420
Distance from tool holding surface to column front	mm	600
Distance from worktable surface to underside of slide rack	mm	615
Max. longitudinal travel of worktable	mm	620
Max. transverse travel of worktable	mm	560
Max. rotary angle of worktable	(°)	360
Feed range of worktable in longitudinal & transverse direction	mm	0.054-1.24
Rotary feed range of worktable	(°)	0.035-0.805
Max size of slotting tool (Length×High)	mm	25×40
Max. slotting force	KN	8
Max loading weight on worktable	kg	500
T-slot width in the center of worktable	mm	18 H8
Power supply of main electric motor	KW	3
Speed of main motor	r/min	960
Power of motor for rapid traverse	KW	0.75
Speed of motor for rapid traverse	r/min	1390
Net weight (approx)	kg	2900
Dimensions of machine tool	mm	1970×1365×2310
(Length×Width×High)	mm	1970×1365×2310
