Paper Cup Machine--For Both Single Side PE Paper Cup and Double Sides

Paper Cup Machine--For Both Single Side PE Paper Cup and Double Sides thumbnail-1
Paper Cup Machine--For Both Single Side PE Paper Cup and Double Sides thumbnail-2
Paper Cup Machine--For Both Single Side PE Paper Cup and Double Sides thumbnail-3
Paper Cup Machine--For Both Single Side PE Paper Cup and Double Sides thumbnail-4
Paper Cup Machine--For Both Single Side PE Paper Cup and Double Sides thumbnail-5
Paper Cup Machine--For Both Single Side PE Paper Cup and Double Sides thumbnail-6
Paper Cup Machine--For Both Single Side PE Paper Cup and Double Sides photo-1
Paper Cup Machine--For Both Single Side PE Paper Cup and Double Sides photo-2
Paper Cup Machine--For Both Single Side PE Paper Cup and Double Sides photo-3
Paper Cup Machine--For Both Single Side PE Paper Cup and Double Sides photo-4
Paper Cup Machine--For Both Single Side PE Paper Cup and Double Sides photo-5
Paper Cup Machine--For Both Single Side PE Paper Cup and Double Sides photo-6
US$ 1 - 1 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Paper Cup Machine
Processing Type:
Paper Folding Machine
Contact Supplier Request Quote Chat Now
Ruian Victory Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Paper Cup Machine
Processing Type Paper Folding Machine
Place of Origin Zhejiang, China
Brand Name VICTORY
Model Number SZB/2W
Voltage 220/380V 50/60HZ
Power(W) 4.5KW
Dimension(L*W*H) 2500*1300*1700mm
Weight 1400kg
Certification CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Product Description

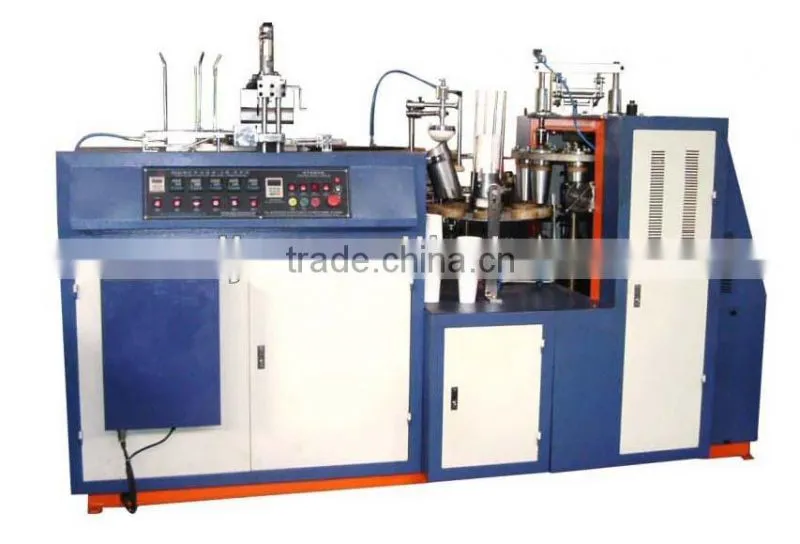

   Paper Cup Machine--For both Single Side PE Paper cup and Double Sides





Paper Cup Machine--For both SINGLE SIDE PE PAPER CUP AND DOUBLE SIDES.(The Sealing System Is Ultrasonic) is an equipment can produce both for Single side PE paper cup and Double sides PE paper cup. Compared to the original SZB/W single side PE paper cup forming machine, this machine has up to a better quality and beautiful appearance with an ultrasonic welding function. This cup is suitable for both hot and cold drinking, such as coca cola, ice cream and coffee etc.



Paper Cup Machine--For both Single Side PE Paper cup and Double Sides



Main Technical Parameter



CE-Standard Double Sides PE Paper Cup Machine



Model

SZB/2W-9

SZB/2W-12

SZB/2W-18(Special model)

SZB/2W-32(Special model)

Production capacity

45-55PCS/min

40-50PCS/min

35-45PCS/min

30-40PCS/min

Required paper

150-400gsm Single Side PE Paper or Double Sides PE Paper

150-400gsm Single Side PE Paper or Double Sides PE Paper

150-400gsm Single Side PE Paper or Double Sides PE Paper

150-400gsm Single Side PE Paper or Double Sides PE Paper

Cup’s Range

(A) 50 -80MM ,(B)35-90MM (C) 35-55MM , (D)4 -10 MM

(A) 50 -90MM ,(B)35-115MM (C) 35-70MM , (D)5 -10 MM

(A) 60 -128MM ,(B)80 -140MM (C) 50 -75MM , (D)5 -10 MM

(A) 60 -128MM ,(B)80 -180MM (C) 50 -75MM , (D)5 -10 MM

Total power

220/380V 50/60HZ 4.5KW

Air supply requirement

Working pressure: 0.4-0.6working gas volume: 0.5m3 /per minute

Weight

1400kg

1500 kg

1700kg

1850kg

Overall dimensions (L*W*H)



2500*1300* 1700mm

2650*1300* 1700mm

2850*1300* 1900mm



3000*1400* 2000mm



Remark :



(A) Stand for Top Diameter                (B) Stand for Height

(C) Stand for Bottom Diameter          (D) Stand for Knurling Parts





Paper Cup Machine--For both Single Side PE Paper cup and Double Sides





Samples:

Paper Cup Machine--For both Single Side PE Paper cup and Double SidesPaper Cup Machine--For both Single Side PE Paper cup and Double SidesPaper Cup Machine--For both Single Side PE Paper cup and Double Sides





Packaging & Shipping

Paper Cup Machine--For both Single Side PE Paper cup and Double Sides









Our Services



The goods should be of good quality. But another important thing is the after service.

Machines are machine, so they will have problems,even small problems.

It is hard for customers to solve all the problems.

Our company will provide you good after services.We can help you solve the problem through video, email, phone.

If needed, we can also let our engineer go to your country to solve the problem.

We hope all the customer will satisfied with our machine and services.
