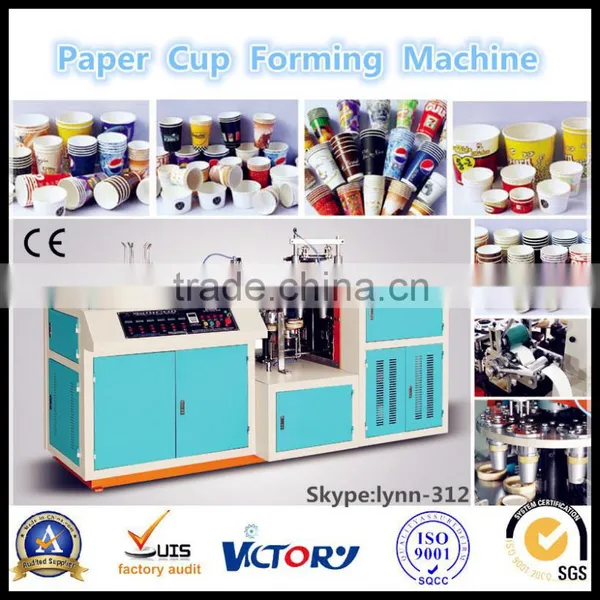

Help Center2014 Hot Sale Single Side PE Paper Cup Price, Automatic Paper Cup Forming Machine
Related Products
-
Ultrasonic Double PE Coated Paper Cup Machine, Fast Paper Cup Machine, Automatic High Quality Paper Cup MachineUS$ 1 - 1MOQ: 1 Set -
SZB/W Single Side PE Paper Cup Forming Machine(the Sealing System is Heating) Paper Cup Making Machine CostUS$ 1 - 1MOQ: 1 Set
-
Disposable Paper Cup Forming Machine With CE, Disposable Paper Cup Making Machine With UltrasonicUS$ 1 - 1MOQ: 1 Set
-
Automatic Paper Cup Forming Machine, Ice Cream Paper Cup Forming Machine With UltrasonicUS$ 1 - 1MOQ: 1 Set
-
SZB/2W Double Sides PE Paper Cup Forming MachineUS$ 1 - 1MOQ: 1 Set
This automatic paper cup forming machine is developed on the original basis, and enjoys the high-speed automatic paper cup shaper of two national patents. It is the idea equipment of producing paper cup and other food package machine. It enjoys light, convenience, save electricity and utility etc. This machine runs a whole procedure of paper feeding, body sealing, oiling, bottom punching, heating, knurling, curling, cup discharge and cup counter.
Main Technical Parameter
Model |
SZB/W-9 |
SZB/W-12 |
SZB/W-18 (Special model) |
SZB/W-22 (Special model) |
Production capacity |
45-55PCS/min |
40-50PCS/min |
35-45PCS/min |
30-40PCS/min |
Required paper |
150-320gsm Single Side PE Paper |
|||
Cup’s Range |
(A) 50 -80mm , (B) 35-90mm (C) 35-55mm (D) 4 -10mm |
(A) 50 -90mm (B) 35-115mm (C) 35-70mm (D) 5 -10mm |
(A) 60 -128mm , (B) 80 -140mm (C) 50 -75mm (D) 5 -10 mm |
(A) 60 -128mm (B) 80 -180mm (C) 50 -75mm (D) 5 -10 mm |
Total power |
220/380V 50/60HZ 4.5KW |
|||
Weight |
1400kg |
1500 kg |
1700kg |
1850kg |
Overall dimensions (L*W*H) |
2500*1300* 1700mm |
2650*1300* 1700mm |
2850*1300* 1900mm |
3000*1400* 2000mm |
Remark :
(A) Stand for Top Diameter (B) Stand for Height
(C) Stand for Bottom Diameter (D) Stand for Knurling Parts
The Technological Figure of Automatic Paper Cup Forming Machine
1. Outside Package: Standard Export Wooden Case;
2. Inside Package: Plastic Film.
The goods should be of good quality. But another important thing is the after service.
Machines are machine, so they will have problems,even small problems.
It is hard for customers to solve all the problems.
Our company will provide you good after services.We can help you solve the problem through video, email, phone.
If needed, we can also let our engineer go to your country to solve the problem.
We hope all the customer will satisfied with our machine and services.
Who We Are?
We are Ruian Victory Machinery Co., Ltd, which is a member of China Packing Technology Association. It has advanced technical equipment and rich in manufacturing experience. Since established in 1987, our company has kept developing by quality, improving by technology, and enlarging by service. From establishment to now, our company has got many awards from local government and superior department.
Our Certisfication
Our Factory
If you were interested in our Paper Cup Machine, Welcome to Contact to me!
