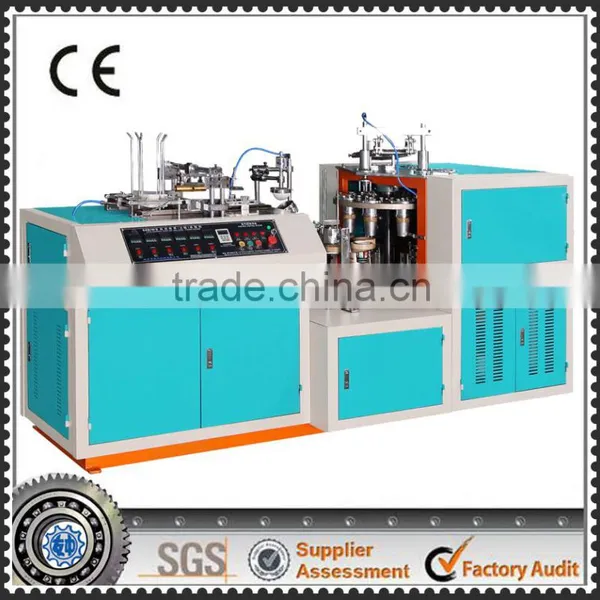

Help CenterSZB/W Single Side PE Paper Cup Forming Machine(the Sealing System is Heating) Paper Cup Making Machine Cost
Related Products
-
Disposable Paper Cup Forming Machine With CE, Disposable Paper Cup Making Machine With UltrasonicUS$ 1 - 1MOQ: 1 Set -
Automatic Paper Cup Forming Machine, Ice Cream Paper Cup Forming Machine With UltrasonicUS$ 1 - 1MOQ: 1 Set
-
SZB/2W Double Sides PE Paper Cup Forming MachineUS$ 1 - 1MOQ: 1 Set
-
High Speed and Quality Double Sides PE Paper Cup Forming MachineUS$ 1 - 1MOQ: 1 Set
-
Single Side PE Paper Cup Making Machine, Disposable Paper Cup Making MachineUS$ 1 - 1MOQ: 1 Set
Paper Cup Making Machine is developed on the original basis, and enjoys the high-speed automatic paper cup shaper of two national patents. It is the idea equipment of producing paper cup and other food package machine. It enjoys light, convenience, save electricity and utility etc. This machine runs a whole procedure of paper feeding, body sealing, oiling, bottom punching, heating, knurling, curling, cup discharge and cup counter.
Main Technical Parameter
Model |
SZB/W-9 |
SZB/W-12 |
SZB/W-18 (Special model) |
SZB/W-22 (Special model) |
Production capacity |
45-55PCS/min |
40-50PCS/min |
35-45PCS/min |
30-40PCS/min |
Required paper |
150-320gsm Single Side PE Paper |
|||
Cup’s Range |
(A) 50 -80mm , (B) 35-90mm (C) 35-55mm (D) 4 -10mm |
(A) 50 -90mm (B) 35-115mm (C) 35-70mm (D) 5 -10mm |
(A) 60 -128mm , (B) 80 -140mm (C) 50 -75mm (D) 5 -10 mm |
(A) 60 -128mm (B) 80 -180mm (C) 50 -75mm (D) 5 -10 mm |
Total power |
220/380V 50/60HZ 4.5KW |
|||
Weight |
1400kg |
1500 kg |
1700kg |
1850kg |
Overall dimensions (L*W*H) |
2500*1300* 1700mm |
2650*1300* 1700mm |
2850*1300* 1900mm |
3000*1400* 2000mm |
Remark:
(A) Standard for Top Diameter (B) Standard for Height
(C) Standard for Bottom Diameter (D) Standard for Knurling Part
The Technological Figure of Paper Cup Making Machine
1. Outside Package: Standard Export Wooden Case;
2. Inside Package: Plastic Film.
The goods should be of good quality. But another important thing is the after service. Machines are machine, so they will have problems, even small problem. It is hard for customers to solve all the problems.
Our company will provide you good after services. We can help you solve the problem through video, email, phone.
If needed, we can also let our engineer go to your country to solve the problem. We hope all the customerwill satisfied with our machine and services.
If you were interested in our SZB/W Single Side PE Paper Cup Forming Machine(the Sealing System is Heating) , WELCOME to contact to me!
