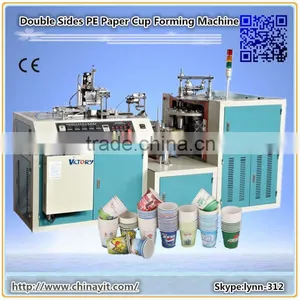

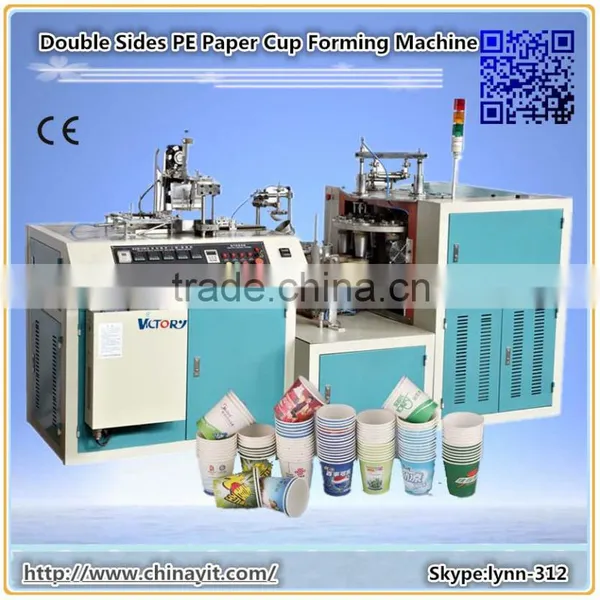

SZB/2W Ultrasonic Paper Cup Machine is an equipment can produce both for Single side PE paper cup and Double sides PE paper cup. Compared to the original SZB/W single side PE paper cup forming machine, this machine has up to a better quality and beautiful appearance with an ultrasonic welding function. This cup is suitable for both hot and cold drinking, such as coca cola, ice cream and coffee etc.
Main Technical Parameter
Model |
SZB/2W-9 |
SZB/2W-12 |
SZB/2W-18 (Special Model) |
SZB/2W-22 (Special Model) |
Production capacity |
45-55pcs/min |
40-50pcs/min |
35-45pcs/min |
30-40pcs/min |
Required Paper |
150-400gsm Single or Double PE Coated Paper |
|||
Cup’s range |
(A) 50-80mm (B) 35-90mm (C) 35-55mm (D) 4-10mm |
(A) 50-90mm (B) 35-115mm (C) 35-70mm (D) 5-10mm |
(A) 60-128mm (B) 80-140mm (C) 50-75mm (D) 5-10mm |
(A) 60-128mm (B) 80-180mm (C) 50-75mm (D)5-10mm |
Total power |
220/380V 50/60HZ 4.5KW |
|||
|
Air supply requirement |
Working pressure: 0.4-0.6 working Gas volume: 0.5 m³/per minute |
|||
Weight |
1400kg |
1500kg |
1700kg |
1850kg |
|
Overall dimensions (L*W*H) |
2500*1300*1700mm |
2650*1300*1700mm |
2850*1300*1900mm |
3000*1400*2000mm |
Remark:
(A) Stand for Top Diameter (B) Stand for Height
(C) Stand for Bottom Diameter (D) Stand for Knurling Part
1. Outside Package: Standard Export Wooden Case;
2. Inside Package: Plastic Film.
The good should be of good quality. But aother important thing is the after service. Machines are machine, so they will have problems, even small problems. It is hard for customers to solve all the problems.
Our company will provide you good after services. We can help you solve the problem through video, email, phone, 24 hours hot line.
If needed, we can also let our engineer go to yourcountry to solve the problem. We hope all the customer will satisfied with our machine and services.
Victory Machinery Co., Ltd of Rui'an City, Zhejiang Province, which is a member of China Packing Technology Association, is located in Jiangnan Industrial Development Zone, Rui'an City. It has advanced technical equipment and rich in manufacturing experience. Since established in 1987, our company has kept developing by quality, improving by technology, and enlarging by service. From establishment to now, our company has got many awards from local government and superior department.

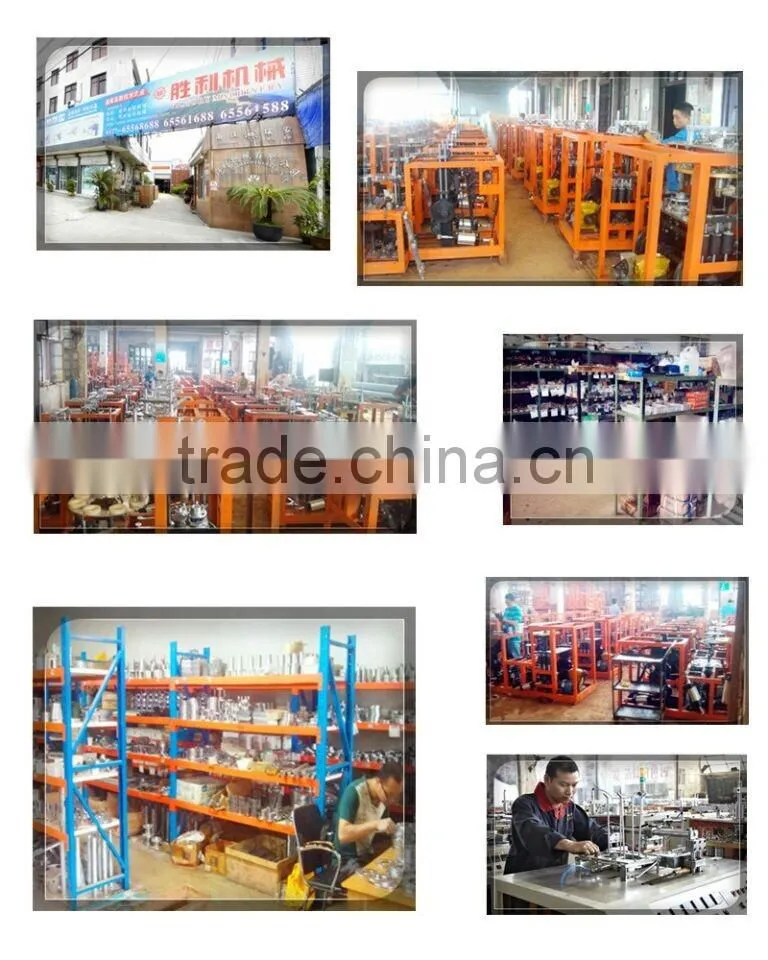

Welcome to Visit our Factory
May we ask you some questions so that we can give you the best price and related machine?
1. Which kind of paper cup do you want to make?
Single PE paper cup (for hot drink) or Double PE paper (for hot & icy drink)
2. What is the size of the paper cup?
3. Do you buy the machine for your own factory?
4. Have you bought any paper cup machine before?
5. How many sets do you want?
Note:
We can manufacture a special one for you of your own requirement!
So if you were interested in our Ultrasonic Paper Cup Machine, welcome to contact with me!
