Home > Products > Paper Roll Stacker > 200kg 3500mm Electric Paper Roll Truck Stacker

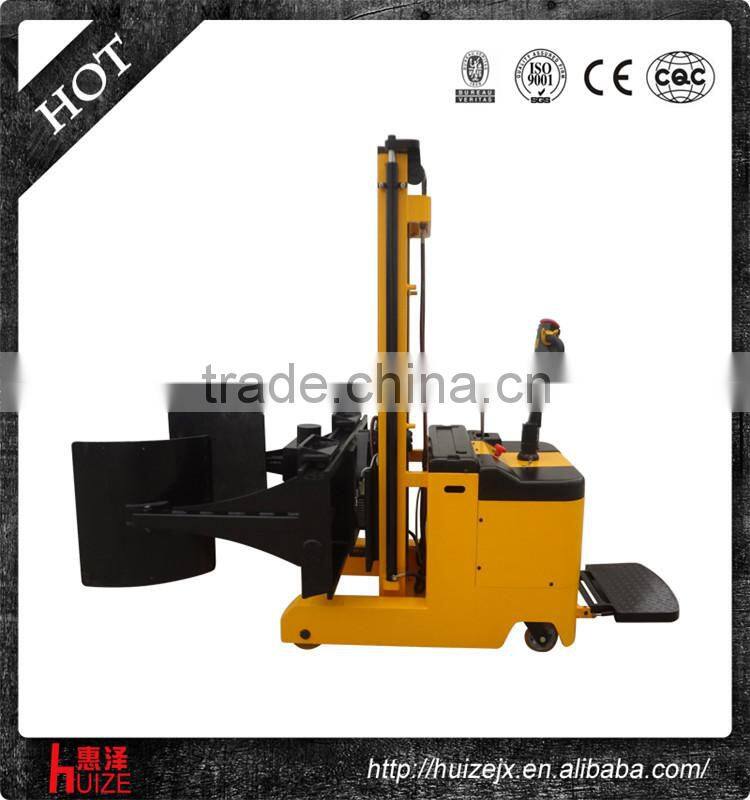

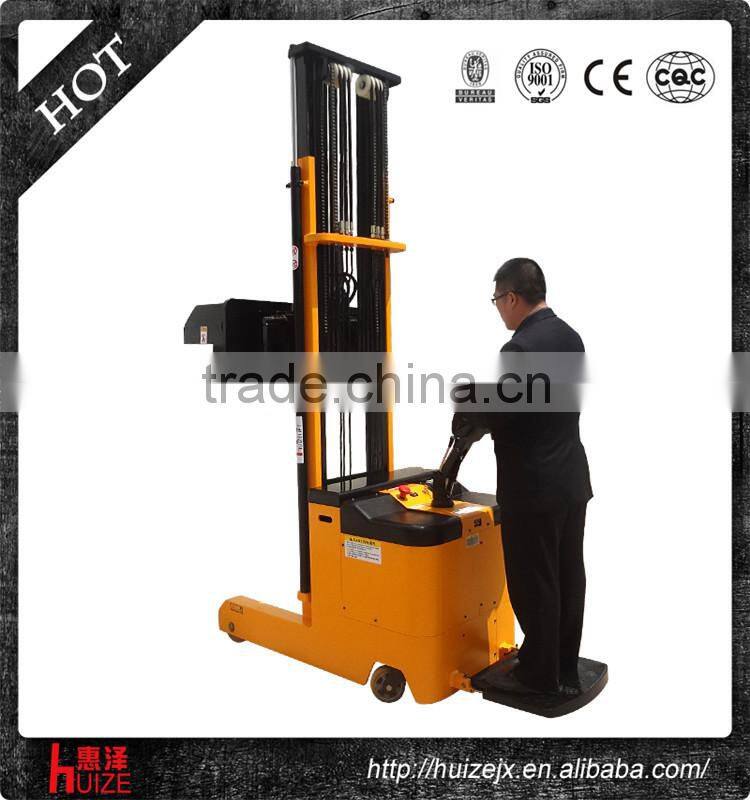

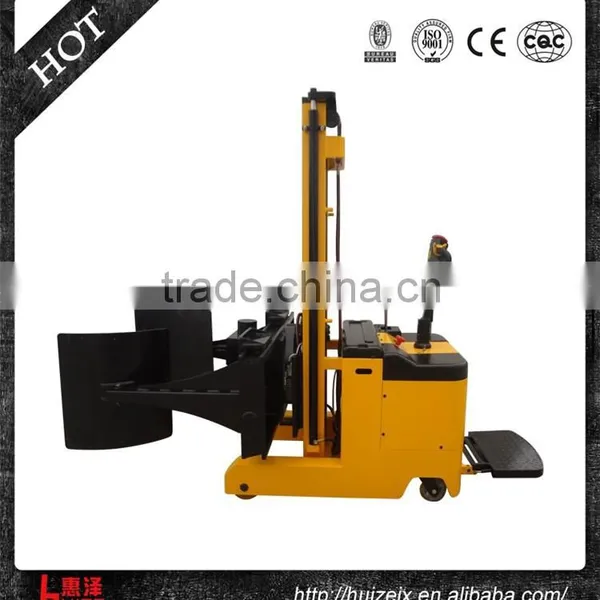

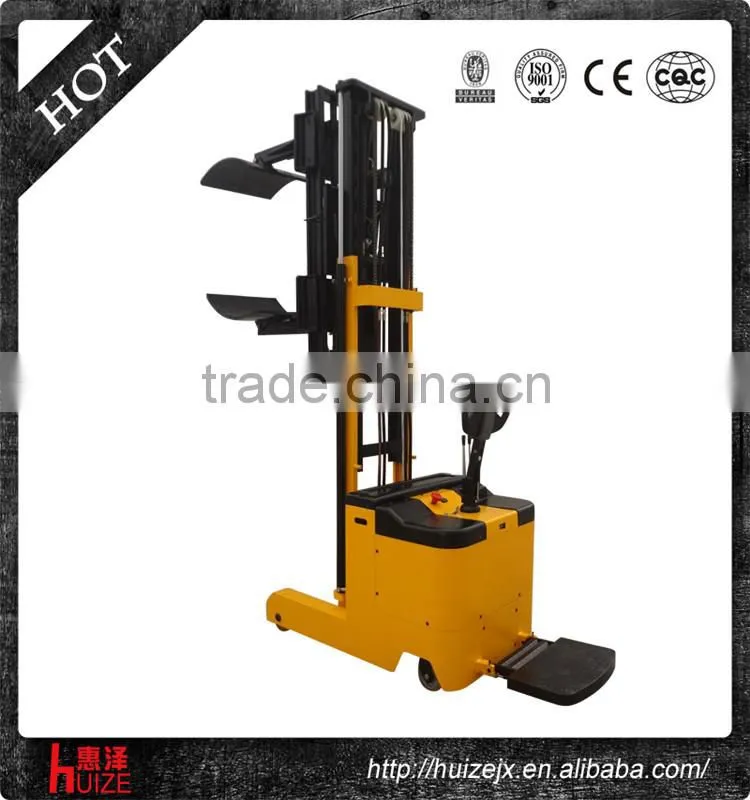

200kg 3500mm Electric Paper Roll Truck Stacker
- 1000 Set / Sets per Month
- Shanghai
- T/T D/P D/A Credit Card PayPal
- Lithium Ion Battery Recycling Machine For Black Mass And Metal
- Cement dry ash bulk machine telescopic ring cloth bag DN300/600 thickened wear-resistant
- Homogenization tank B200 external fluidization plate homogenization tank inflation equipment
- B400 Electro-hydraulic sector valve Pneumatic sector valve Block material sector valve can be customized
- Bulk material bulk hangar bottom cement clinker sand aggregate loading inside the wear-resistant ceramics
- Air transport chute XZ400 cement plant ash chute dry ash ore powder transport equipment
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Huize | Model Number: | HZFDDDDZ-01 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
200kg 350mm Electric Paper Roll Truck Stacker
we are 9 years experienced manufacturer
For Product Character
1.Adopt advantaged special control system, walk stably, manipulate nimbly
2.Mutifunctional control hadle, beautiful apperance and easy operation
3.Fault self checking function,CVT
4.Electric Walking,Electric Lifting,Automatic Clamp&Tilt
Useful
1.All kinds of Round Drums
2.Plastic Drums
3.Open Drums
4. Paper Roll
Certificate
ISO9001,CE,SGS
Min Order: 1 sets
Port: Shanghai, Ningbo, Qingdao
Payment: TT, LC
Delivery: 10-15 workingdays after received 30% deposit
Packing: STANDARD EXPORT PACKING
Feature
Product Name | Paper Roll Stacker | |
Load Capacity | 200kg | |
Lifting Height | 3500mm | |
Mast | Double Mast | |
Power | Battery | |
Manipulation | Standing Steer Type | |
Braking Type | Eletromagenetic Braking | |
Tilting Type | Hydraulic Tilting | |
Tilting Angle | 90° | |
Clamping Type | Hydraulic Clamping | |
Hydro Cylinder | Single | |
Color | Red,Yellow,Blue,Gray | |
Surface Treatment | Durable Power Coat Paint | |
Wheel | ||
Wheel Type | Polyurethane | |
No. & Size of Driving Wheel | 1 pcs Φ250*80 | |
No.&Size of Loading Wheel | 2 pcs Φ150*50 | |
No.&Size of Balance Wheel | 2 pcs Φ150*50 | |
Size | ||
Aisle Width | 1500mm | |
Min Aisle Width for Turning Around | 3000mm | |
Turning Radius | 2500mm | |
Performance | ||
Lowering Height | 540mm | |
Driving Speed ( With/without Load) | 4/6 km/h | |
Lifting Speed (With/Without Load) | 40/45 mm/s | |
Lowering Speed (With/Without Load) | 50/45mm/s | |
Drive | ||
Driving Motor | 1.2kw | |
Lifting Motor | 2.5kw | |
Battery | 24V/210AH | |
Recharging Times for Battery | 750 times | |
Size of Charger | 24V30A | |
Driving Wheel Type | AC Horizontal | |
Package | Bubble Wrapping + Wooden Pallet |
