13-China HuiZe Made Full Electric Clamping and Flipping Paper Truck

13-China HuiZe Made Full Electric Clamping and Flipping Paper Truck thumbnail-1
13-China HuiZe Made Full Electric Clamping and Flipping Paper Truck photo-1
US$ 13,567 - 13,867 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HuiZe brand fork lift
Model Number:
HZFDDDDZ-02
Contact Supplier Request Quote Chat Now
Taizhou Huize Machine Limited Company
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHANGHAI PORT CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HuiZe brand fork lift
Model Number HZFDDDDZ-02
Lift Drive / Actuation Electric Motor

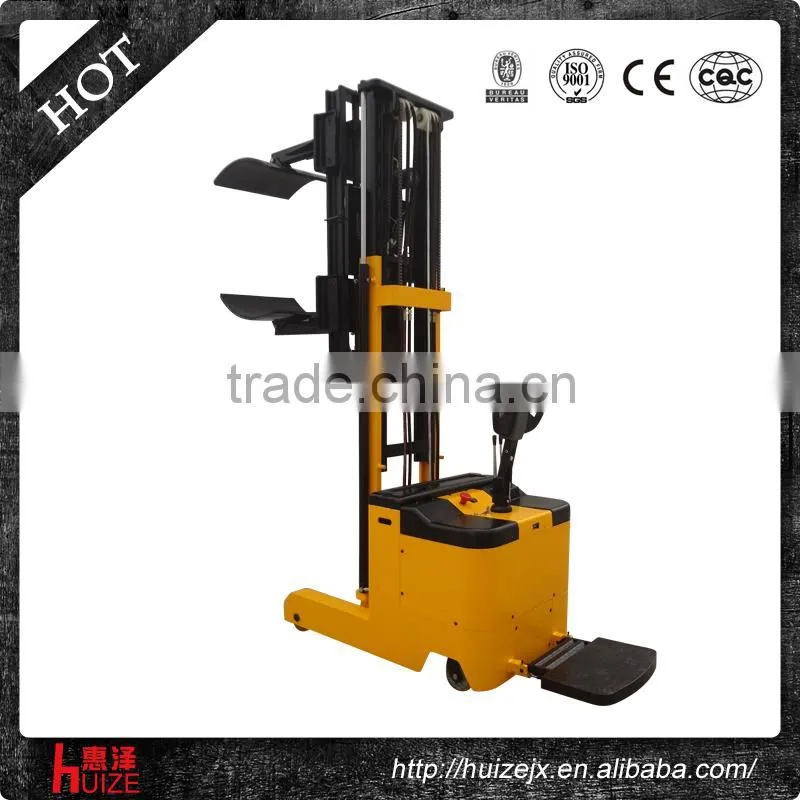

13-China HuiZe Made Full electric clamping and flipping paper truck



13-2-ORDERNo130002-MODEL :HZFDDDDZ-02  product cost

FDDDDZ-200-2.5-90-210-0

1

Characteristic

1.1

Name



Full electric clamping and flipping paper truck

2.1

Model



HZFDDDDZ-02

3.1

Mast series



Double

4.1

Dynamic form



Battery

5.1

Operation type



Standing

6.1

Braking mode



Electromagnetic braking

7.1

Load capacity

Q(Kg)

200

8.1

Flipping way



Electric rotation

9.1

Hydraulic cylinder



Single

10.1

Color



Red, yellow

11.1

Surface treatment



Paint

2

Application

12.2

Main application



Remove and shift in the warehouse and workshop in paper

 industry

3

Wheel

13.3

Wheel type



Polyurethane

14.3

The number of driving wheel / balance wheel / loading wheel



1/2/2

4

Size

15.4

Lifting height

h3(mm)

2500

16.4

Fixture minimum height

h2(mm)

540

17.4

Overall height when fixture up to maximum height

h4(mm)

3000

18.4

Overall length

L1(mm)

2245

19.4

Overall width

b1(mm)

1429

20.4

Fixture size

Φf

Φ1000

21.4

Flipping angle



Unidirectional turn 90°

22.4

Overall height

h1(mm)

1780

23.4

Front wheel size

mm

Φ150*50

24.4

Driving wheel size

mm

φ250*80

25.4

Balance wheel size

mm

Φ150*50

26.4

Channel width

Ast(mm)

1500

27.4

Minimum channel width truck turning around

Ast(mm)

3000

28.4

Turning radius

Wa(mm)

2500

5

Performance

29.5

Walking speed, loaded / unloaded

Km/h

4/6

30.5

Lifting speed, loaded / unloaded

mm/s

40/45

31.5

Falling speed, loaded / unloaded

mm/s

50/45

32.5

Climbing gradient, loaded/unloaded

%

6/8

33.5

Braking distance, loaded / unloaded

mm

500/400

6

Driving

34.6

Driving motor power

KW

1.2

35.6

Lifting motor power

KW

2.5

36.6

Battery voltage / capacitor

V/Ah

24/210

37.6

Battery repeated charging times



750

38.6

Battery weight

Kg

187

39.6

Charger specification



24V30A

7

Weight

40.7

Gross weight (including package) / net weight

Kg

864/860

41.7

Charger gross weight (including package) / net weight

Kg

6.4/6

8

Production and delivery

42.8

Monthly production capacity

Set

80

43.8

Delivery time per one set

Day

20

44.8

Delivery time per ten sets

Month

1

9

Packaging and transport

45.9

Packing method



Overall packaging

46.9

Packaging



Angle iron + bubble wrap

47.9

Package size

L/B/H(mm)

2300*1500*1800

48.9

Charger package size

L/B/H(mm)

420*210*190

49.9

Matching boxes of each product



2

50.9

Number of 20-foot containers

Set

7

51.9

Number of 40-foot containers

Set

14

10

Others

52.10

Product certification



CE

53.10

Product declaration name



Other handling and loading equipment

54.10

FOB Shanghai

USD/set

13267

55.10

HS code



8428909090

56.10

Order No



130002

 13-China HuiZe Made Full electric clamping and flipping paper truck13-China HuiZe Made Full electric clamping and flipping paper truck13-China HuiZe Made Full electric clamping and flipping paper truck13-China HuiZe Made Full electric clamping and flipping paper truck13-China HuiZe Made Full electric clamping and flipping paper truck13-China HuiZe Made Full electric clamping and flipping paper truck

We are one biggest professional manufacture all kinds of fork lift,electric stacker,

Pallet truck  crane  boom lift plat form electric pallet truck  reach forill  fiuck  lift table drum truck and so on

 products in china.

1.our facory main export to europe market and middle east market and USA market.

2.Our all produts passed CE SGS ISO9001 BV certificates.

3.Our factory since 2006.

 So pls take free and choose your like models with pcs with colors if you like our factory products.

     Your kindly response will be appreciate!











13-China HuiZe Made Full electric clamping and flipping paper truck13-China HuiZe Made Full electric clamping and flipping paper truck13-China HuiZe Made Full electric clamping and flipping paper truck

Taizhou huize machinery limited company is china biggest professional Manufacture

all kinds of fork lift,electric stacker,pallet truck,crane,plat form,lift table,

boom lift,drum truck,paper drum lift,pallet return lift and so on products.

Our factory since 2006.

There are 9 reasons of choosing HUIZE machinery limited company:

1, HZ is the NO. one brand of mechanical truck ,

2, delicate appearance and good quality strictly conform to  ISO production system,

3, the products  exit factory only after the 5 delivery test items.

4, Manufacture center work carefully .

5, the company specialized in producing electric truck and electric lifting truck .

 6, patent protection and brand authoring.

7 Key design key control technology.

8, humanized design and easy to operate.

9, beautiful color , reliable ,and longtime use .

 Our factory have 20000 meters workroom and have 200 work members.

Company achievements:4A integrity enterprise of jiangsu province ,

product conform to ISO900one and CE , utility model patent certification.

13-China HuiZe Made Full electric clamping and flipping paper truck13-China HuiZe Made Full electric clamping and flipping paper truck13-China HuiZe Made Full electric clamping and flipping paper truck13-China HuiZe Made Full electric clamping and flipping paper truck

13-China HuiZe Made Full electric clamping and flipping paper truck

China HUIZE fork lift factory team story:



Taizhou huize machinery limited company is china biggest professional Manufacture all kinds

 of fork lift,electric stacker,pallet truck,crane,plat form,lift table,boom lift,drum truck,paper drum lift,pallet return lift and so on products.Our factory since 2006.



There are 9 reasons of choosing HUIZE machinery limited company:

1, HZ is the NO. one brand of mechanical truck ,2, delicate appearance and good quality strictly conform to

 ISO production system,

3, the products  exit factory only after the 5 delivery test items.

4, Manufacture center work carefully .

5, the company specialized in producing electric truck and electric lifting truck .

6, patent protection and brand authoring.

7 Key design key control technology.

8, humanized design and easy to operate.

9, beautiful color , reliable ,and longtime use .



 Our factory have 20000 meters workroom and have 200 work members.Company achievements:

4A integrity enterprise of jiangsu province ,product conform to ISO900one and CE ,

 utility model patent certification. Detail Pls take free and check ABOUT US
