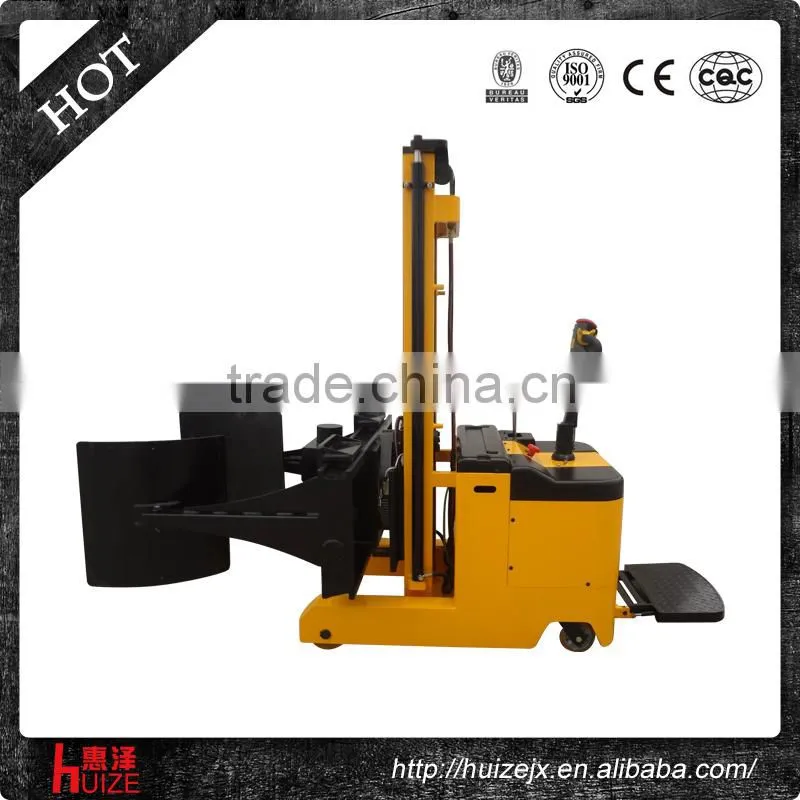

15-china huize Full electric clamping and flipping paper truck

13-1-ORDERNo130001-MODEL :HZFDDDDZ-01 product cost

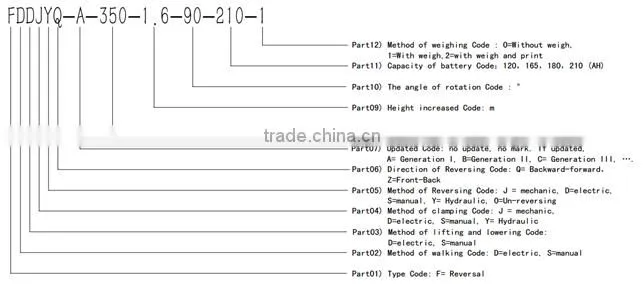

FDDDDZ-200-1.6-90-165-0

1

Characteristic

1.1

Name

Full electric clamping and flipping paper truck

2.1

Model

HZFDDDDZ-01

3.1

Mast series

Single

4.1

Dynamic form

Battery

5.1

Operation type

Standing

6.1

Braking mode

Electromagnetic braking

7.1

Load capacity

Q(Kg)

200

8.1

Flipping way

Electric rotation

9.1

Hydraulic cylinder

Single

10.1

Color

Red, yellow

11.1

Surface treatment

Paint

2

Application

12.2

Main application

Remove and shift in the warehouse and workshop in paper industry

3

Wheel

13.3

Wheel type

Polyurethane

14.3

The number of driving wheel / balance wheel / loading wheel

1/2/2

4

Size

15.4

Lifting height

h3(mm)

1600

16.4

Fixture minimum height

h2(mm)

540

17.4

Overall length

L1(mm)

2245

18.4

Overall width

b1(mm)

1429

19.4

Fixture size

Φf

Φ1000

20.4

Flipping angle

Unidirectional turn 90°

21.4

Overall height

h1(mm)

2000

22.4

Front wheel size

mm

Φ150*50

23.4

Driving wheel size

mm

φ250*80

24.4

Balance wheel size

mm

Φ150*50

25.4

Channel width

Ast(mm)

1500

26.4

Minimum channel width truck turning around

Ast(mm)

3000

27.4

Turning radius

Wa(mm)

2500

5

Performance

28.5

Walking speed, loaded / unloaded

Km/h

4/6

29.5

Lifting speed, loaded / unloaded

mm/s

40/45

30.5

Falling speed, loaded / unloaded

mm/s

50/45

31.5

Climbing gradient, loaded/unloaded

%

6/8

32.5

Braking distance, loaded / unloaded

mm

500/400

6

Driving

33.6

Driving motor power

KW

1.2

34.6

Lifting motor power

KW

2.5

35.6

Battery voltage / capacitor

V/Ah

24/165

36.6

Battery repeated charging times

750

37.6

Battery weight

Kg

150

38.6

Charger specification

24V20A

7

Weight

39.7

Gross weight (including package) / net weight

Kg

852/848

40.7

Charger gross weight (including package) / net weight

Kg

6.2/5.8

8

Production and delivery

41.8

Monthly production capacity

Set

80

42.8

Delivery time per one set

Day

20

43.8

Delivery time per ten sets

Month

1

9

Packaging and transport

44.9

Packing method

Overall packaging

45.9

Packaging

Angle iron + bubble wrap

46.9

Package size

L/B/H(mm)

2300*1500*2050

47.9

Charger package size

L/B/H(mm)

420*210*190

48.9

Matching boxes of each product

2

49.9

Number of 20-foot containers

Set

7

50.9

Number of 40-foot containers

Set

14

10

Others

51.10

Product certification

CE

52.10

Product declaration name

Other handling and loading equipment

53.10

Deliver Time

days

25days after china huize recieved T/T

54.10

HS code

8428909090

55.10

Order No

130001

Taizhou huize machinery limited company is china biggest professional Manufacture all kinds of

fork lift,

electric stacker,pallet truck,crane,plat form,lift table,boom lift,drum truck,paper drum lift,pallet

return lift and so on products.Our factory since 2006.

There are 9 reasons of choosing HUIZE machinery limited company:

1, HZ is the NO. one brand of

mechanical truck ,

2, delicate appearance and good quality strictly conform to  ISO production system,

3, the products  exit factory only after the 5 delivery test items.4, Manufacture center work carefully .

5, the company specialized in producing electric truck and electric lifting truck .

6, patent protection and brand authoring. NO

7 Key design key control technology.

8, humanized design and easy to operate.

9, beautiful color , reliable ,and longtime use .

Our factory have 20000 meters workroom and have 200 work members.Company achievements:

4A integrity enterprise of jiangsu province ,product conform to ISO900one and CE , utility model

patent certification.
