22kV Copper Core Xlpe Insulated PVC Sheath Eletric Power Cable Price

Name: 22kV Copper Core Xlpe Insulated PVC Sheath Eletric Power Cable Price
Brand: taifa
SKU: 129216453

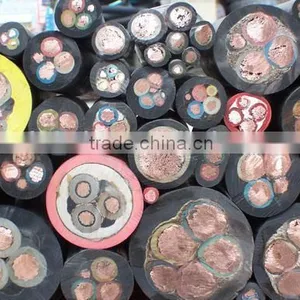

22kV Copper Core Xlpe Insulated PVC Sheath Eletric Power Cable Price thumbnail-1

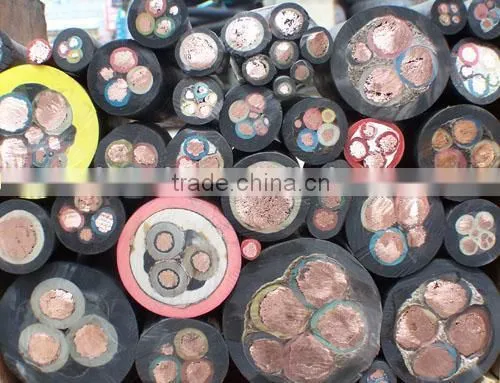

22kV Copper Core Xlpe Insulated PVC Sheath Eletric Power Cable Price photo-1

US$ 0.2 - 100 MOQ: 1 Kilowatt

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

taifa

Model Number:

power cable

Contact Supplier Request Quote Chat Now

Henan Taifa Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name taifa

Model Number power cable

Insulation Material PVC

Type Low Voltage

Application Industrial

Conductor Material Copper

Jacket PVC

22kV copper core xlpe insulated PVC sheath eletric power cable price

Product Description

1. Products applications:

PVC insulated Power cables are fit for A.C rated voltages 600/1000V power transmission and distribution system.

2. Products standard:BS 6346

3. Products characteristics:

--Long-term maximum working temperature of conductor should not be higher than 70°C, laying temperature should not be lower than 0 °C.

--Once short-circuit (the Max. duration 5s), the maximum conductor temperature does not be over 160 °C.

--Laying bending radius: Single-core and armored cables laying bending radius should not be less than 20 times of cable’s outer diameter value, however, multi-cores unarmored/armored cables laying bending radius should not be less than 15 times of cable’s outer diameter value.

4. Products types and names:

Cu	Al	Names
Cu/PVC/PVC	Al/PVC/PVC	PVC insulated and sheathed power cables
Cu/PVC/AlTA/PVC	Al/PVC/AlTA/PVC	PVC insulated and sheathed power cables with Aluminum tape armored
Cu/PVC/AlWA/PVC	Al/PVC/AlWA/PVC	PVC insulated and sheathed power cables with Aluminum wires armored
Cu/PVC/SWA/PVC	Al/PVC/SWA/PVC	PVC insulated and sheathed power cables with Steel wires armored

5. Cable properties and use instructions:

--For unarmored cable, is suitable for laying in indoors, cable channel and conduit etc., such cables can’t bear strong mechanical force.

--For STA armored cable, is suitable for underground installation , which can withstand certain mechanical pressure,but can’t withstand mechanical tension,on the contrary, for SWA armored cable, is suitable for vertical installation, which can withstand certain mechanical tension, but can’t withstand mechanical pressure.

--For PVC sheath not only has excellent chemical corrosion resistance, but also has the properties of flame retardant and non water-absorption.

-- For single-core armored cables, non-magnetic material or Aluminum tape is main armored material, which only applies to D.C system.

Model,name and application

Type		Voltage level	Number of cores	Description	Application
Cu Core	Al Core	Voltage level	Number of cores	Description	Application
YJV ZR-YJV	YJLV ZR-YJLV	0.6/1kV	1 core 2 core 3 core 4 core 5 core 3+1 core 4+1 core	Cu(Al)Core, XLPE Insulated, PVC Sheathed Power Cable. Cu(Al)Core, XLPE Insulated, PVC Sheathed flame- retardant Power Cable	for laying in doors,Pipeline and in tunnels,but unable to bear pulling force and pressure
YJV22 ZR-YJV22	YJLV22 ZR-YJLV22	0.6/1kV	1 core 2 core 3 core 4 core 5 core 3+1 core 4+1 core	Cu(Al)Core, XLPE Insulated, Steel Tape Armored and PVC Sheathed Power Cable . Cu(Al)Core, XLPE Insulated, Steel Tape Armored and PVC Sheathed flame- retardant Power Cable	for laying in doors,in tunnels and direct under ground,able to bear pulling force and pressure.
