Hot selling BS5467 eletrical copper cable Steel Wire Armoured Power Cable

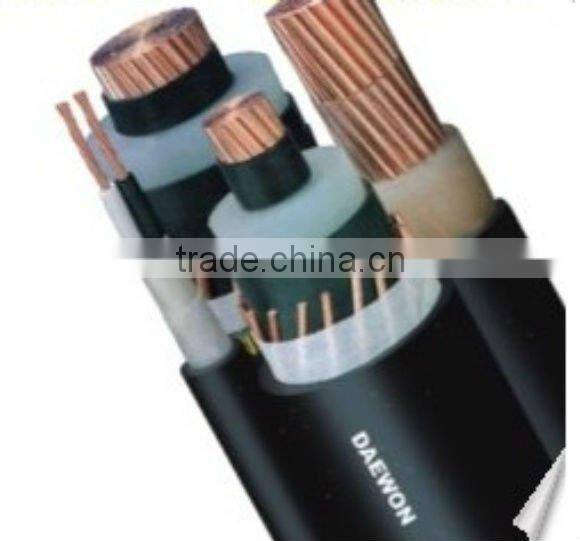

1 low voltage cable power cable Low voltage (0.6/1 kv) single core or multi-core copper or aluminium conductor pvc inusulation steel tape armored or galvanized steel wire armored or unarmored pvc outer sheath power cable.

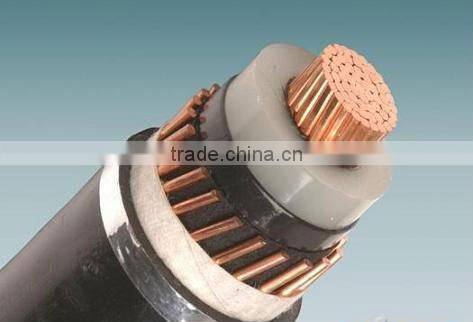

2. medium voltage cabel power cable Voltage grade is up to 35kv, cross-section area can be up to 1000 sqmm (copper or aluminiun conductor). Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature should be not more than 250 degrees. 1kv-35 kv multi-cores copper or aluminium conductor xlpe insulation copper tape or copper wire screen galvanized steel wire armored pvc or pe sheath power cable
3 high voltage cable power cable High voltage (35kv~220kv) copper or aluminium conductor xlpe insulation metal sheath (lead or corrugated aluminium) hdpe or pvc outer sheath power cable. Laying conditions: for lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force.
Al/CU Conductor XLPE/PVC Insulated Thin/Thick steel armored PE Sheathed Power Cable. AL/CU,XLPE/PVC,SWA/DSTA,PVC/PE Relative manufacturing standards: IEC60505, BS, DIN,ASTM,JIS or other standards.
Application: It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower.
It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable. Using features:
1. Rated voltage: Uo/U: 26/35kV, 21/35kV, 12/20 kV (24 kV), 8.7/10kV, 8.7/15kV, 6/6kV, 6/10kV and 0.6/1kV.
2. No. Of core: Single-core, Two-core,Three-core,Four-core,Five-core,Six-core.
3. The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit (Max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degree.
4. D. C. Resistance of the conductor complies with the stipulations of international standar.
5. The environment temperature should be no lower than zero degree when lay. Otherwise it should be preheated.
6. The cable is laid without horizontal drop limit. The Min. Bending radius of cables should be no smaller than 12 times of cable outer diameter.
7. Working Frequency Voltage Test: For cable with Uo of 3.6kV or lower: 2.5Uo+2kV/5min without puncture. For cable with Uo of 3.6Kv~18kV: 3.5Uo/5min without puncture. For cable with Uo of 21kV and 26 kV: 2.5Uo/30min without puncture.
8. Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable
This series includes:
Copper (aluminum) conductor, XLPE/PVC insulated ,PVC sheathed power cables Copper (aluminum) conductor, XLPE/PVC insulated, PE sheathed power cables Copper (aluminum) conductor, XLPE/PVC insulated, steel tape armoring(DSTA) PVC sheathed power cables Copper (aluminum) conductor, XLPE/PVC insulated, steel tape armoring(DSTA), PE sheathed power cables Copper (aluminum) conductor, XLPE/PVC insulated, steel wire armoring(SWA), PVC sheathed power Cables Copper (aluminum) conductor, XLPE/PVC insulated, steel wire armoring(SWA), PE sheathed power cables

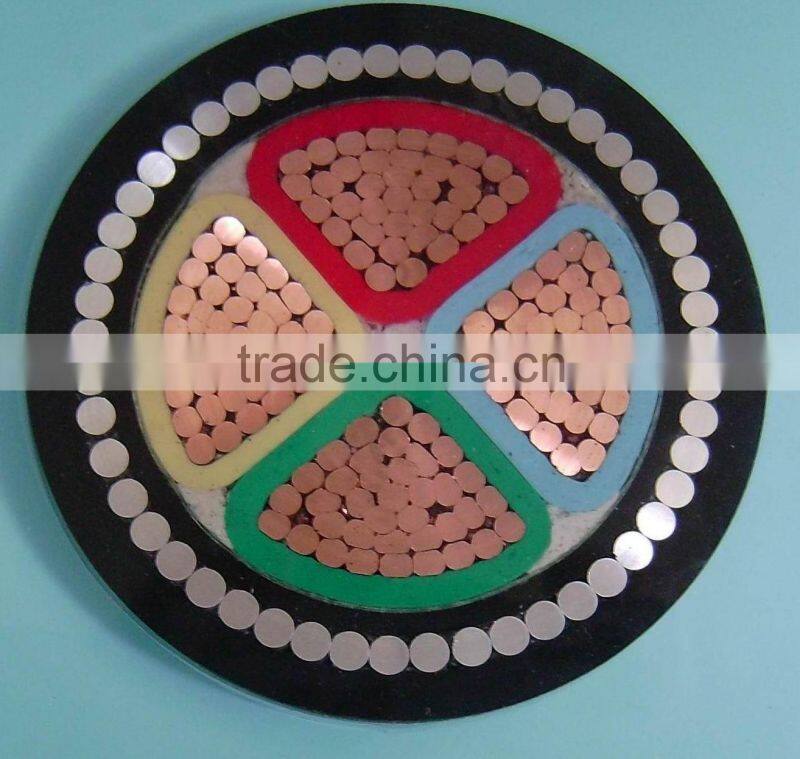

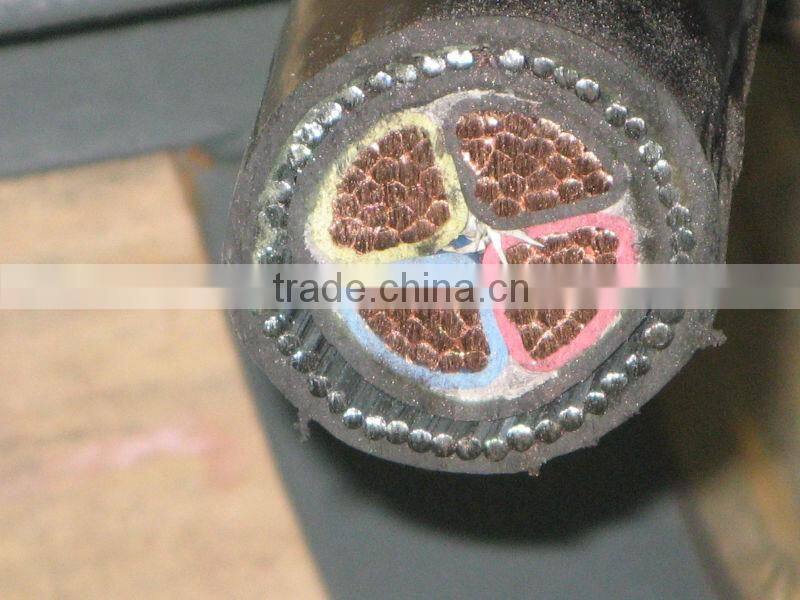

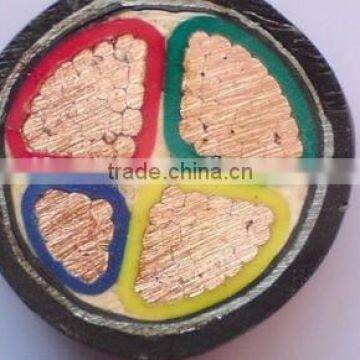

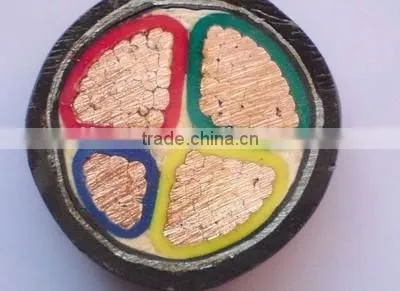

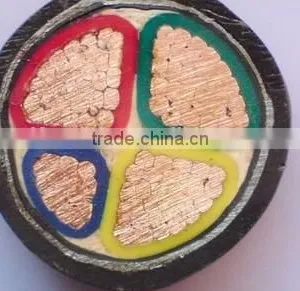

-Conductor: Solid or stranded copper -Insulation: Cross-linked polyethylene/ polyvinyl chloride ( XLPE or PVC) -Circuit Identication: The insulation shall be red, black or other colors. -Filler: Polypropylene with lapped binding tape -Inner Sheath: Polyvinyl chloride (Black) -Armor: Galvanized steel wire or double steel tape armor -Core-covering: Binding tape -Outer Sheath: Polyvinyl chloride/ (Black)
Our Service
1. Sufficient support for our tendering representatives.
2. OEM service available based on official & legal authorization.
3. Strict quality control system
Data sheet:
| Type |
Name
|
Application | |
|
Cu Conductor |
Al Conductor |
||
|
YJV YJY |
YJLV YJLV |
XLPE Insulated,PVC or PE S heathed Power Cable | For laying in door,tunnel,channel and underground.Unable to bear external mechanical force,but bear the traction force during laid. |
|
YJV22 YJV23 |
YJLV22 YJLV23 |
XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable |
For laying in tunels in door,tunnel,channel and underground.Able to bear external mechanical force,but unable to bear large pulling force. |
|
YJV32 YJV33 |
YJLV32 YJLV33 |
XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable |
For laying in shaft with large difference of level.Able to bear external mechanical force,and moderable pulling force. |
|
YJV42 YJV43 |
YJLV42 YJLV43 |
XLPE Insulate,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable |
Able to bear positive pressure and pulling force |
|
1st class |
0.6/1 |
1.8/3 |
3.6/6 |
6/10 |
8.7/15 |
12/20 |
18/30 |
21/35 |
|||
2nd class |
1/1 |
3/3 |
6/6 |
8.7/10 |
12/15 |
18/20 |
- |
26/35 |
||||
1 Core |
Section area(mm2) |
1.5-800 |
25-800 |
25-800 |
25-800 |
35-800 |
50-800 |
50-800 |
50-800 |
|||
2 Core |
Section Area(mm2) |
1.5-185 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|||
3 Core |
Section area(mm2) |
1.5-400 |
25-400 |
25-400 |
25-400 |
35-400 |
50-400 |
50-400 |
50-400 |
|||
4 Core |
Section Area(mm2) |
2.5-400 |
25-400 |
/ |
/ |
/ |
/ |
/ |
/ |
|||
5 Core |
Section area(mm2) |
2.5-400 |
25-400 |
/ |
/ |
/ |
/ |
/ |
/ |
