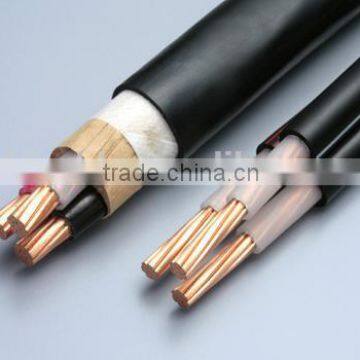

Copper Power cable 185mm2 xlpe insulated power cable for construction
1. Application
The XLPE insulated power cable has the high mechanical strength, the electrical specification fine, bears characteristics and so on chemistry corrosion.
2. Standard
Standard of power cable:IEC, ASTM,BS,CNS(GB),DIN and AS/NZS or other standards as request.
3. Construction of power cable:
Conductor:Copper or Aluminium
Insulation:PVC or XLPE
Inner sheath:PVC
Armoured:Galvanized steel tape or galvanized steel wire
Outer Sheath:PVC or PE
4. Characters of power cable:
a.Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C
b.Installing temperature of cable should not be less than 0°C
c.Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec.
d.Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
e.Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flamer retardant.
5. Description & Application:
xlpe insulated power cable
TYPE |
Description of power Cable |
Main Applications of power cable |
|
CU core |
AL core |
||
VV |
VLV |
Copper/Aluminium core,PVC insulated,PVC sheathed power cable |
Non-armoured PVC cable are suited for laying indoors,In cable trench,On cable racks and in pipes. Unable bear external pressures and tensions. |
VY |
VLY |
Copper/Aluminium core,PVC insulated,PE sheathed power cable |
|
VV22 |
VLV22 |
Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cable |
Steel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces. |
VV23 |
VLV23 |
Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable |
|
VV32 |
VLV32 |
Copper/Aluminium core,PVC insulated,thin steel wire armored,PVC sheathed power cable |
Thin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces. |
VV33 |
VLV33 |
Copper/Aluminium core,PVC insulated,thin steel wire armored,PE sheathed power cable |
|
VV42 |
VLV42 |
Copper/Aluminium core,PVC insulated,thick steel wire armored,PVC sheathed power cable |
Thick steel wire armoured PVC cables are suited for vertical installation and can be laid water or sea-bottom.Can bear greater positive pressures and tension forces. |
VV43 |
VLV43 |
Copper/Aluminium core,PVC insulated,thick steel wire armored,PE sheathed power cable |
|
XLPE Insulated electric cable
TYPE |
NAME |
|
CU core |
AL core |
|
YJV/YJY |
YJLV/YJLY |
XLPE insulated,PVC/PE sheathed power cable |
YJV22/YJV23 |
YJLV22/YJLV23 |
XLPE insulated,steel tape armored,PVC/PE sheathed power cable |
YJV32/YJV33 |
YJLV32/YJLV33 |
XLPE insulated,thin steel wire armored,PVC/PE sheathed power cable |
YJV42/YJV43 |
YJLV42/YJLV43 |
XLPE insulated,thick steel wire armored,PVC/PE sheathed power |
