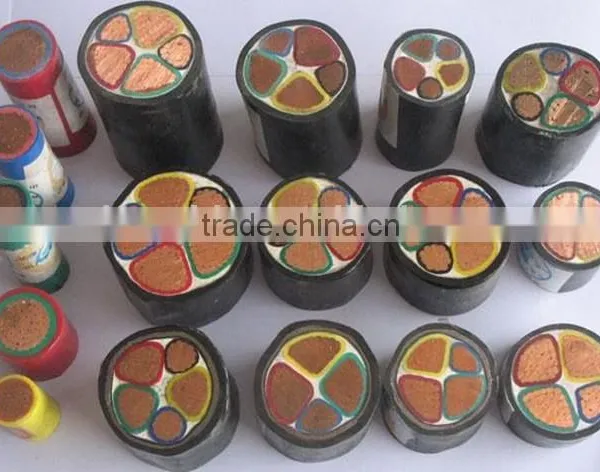

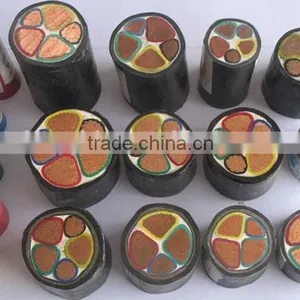

Help Center35KV Cu/Al Conductor PVC Insulated PVC Sheathed Eletrical Power Cable
Related Products
-
0.6/1KV Copper Conductor PVC Insulated Power Cable 120mm2US$ 0.5 - 100MOQ: 5 Kilometers -
Best Selling UL Standard XLPE Stranded Copper Cable Eletric Power Cable XMVK CableUS$ 0.1 - 66MOQ: 1 Kilometer
-
Superior Quality 33KV Copper Conductor XLPE Insulated PVC Sheathed Eletric Power CableUS$ 0.31 - 100MOQ: 1 Kilometer
-
Best Quality 3 Core XLPE Insulated Steel Wire Armored PVC Sheathed Copper Power Cable 3X50mm2US$ 0.1 - 100MOQ: 1 Kilometer
-
Low Price 4x4mm2 XLPE Insulated PVC Sheathed Stranded Copper Power CableUS$ 0.01 - 66MOQ: 2 Kilometers
Power Cables:
0.6/1KV Cu/Al Conductor PVC Insulation PVC Sheath Power Cable
1. The applications: Rated voltage (U0/U) 0.6/1KV in transmission & transformation line & for water-proofing purpose .
2. Standards: IEC60502-1 2004 ISO9001:2008
3. Product Features:
1) No necessary to heat up in advance while installing above 0oC.
2) Max. continuous normal operating Temperature: 70oC (PVC Sheathed Cable).
3) Max. Permissible temperature at short circuit (5s. at longest): 160oC.
4) Permissible bending radius:
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
Detailed Description
Our company can produce both flame retardant and non-flame retardant series of PVC power cables. Our products can be produced according to our works specifications which are equivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are superior to standards as stated above..
The flame-retardant cable covers all kinds of low-smoke, free-halogen, low-smoke halogen free and three classes of A, B, C. We can design and manufacture special PVC cables according to the other standards require by the customers, such as heavy section cut part conductors, water-resistant, defend termites, defend mouse, and so on.
| Type | Name | Application | Long-time Permissible Working Temperature (°C) |
| 60227IEC01 05 BV BLV | Copper/Aluminum conductor PVC insulated wires | Fixed laid in the circumstance of indoors, Conduit etc. | 70 |
| 60227IEC07 (BV-90) | Heat resistant copper conductor PVC insulated wire at 90°C | Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits. | 90 |
| BVR | Copper conductor PVC insulated flexible cable | Be for laying permanent place where flexible required. | 70 |
| 60227IEC10 (BVV) | Copper conductor PVC insulated PVC sheathed round wire | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. | 70 |
| BLVV | Aluminum conductor PVC insulated PVC sheathed round wires | ||
| BVVB | Copper conductor PVC insulated PVC sheathed flat wires | ||
| BLVVB | Aluminum conductor PVC insulated PVC sheathed flat wires | ||
| 60227IEC02(RV) | Copper conductor PVC insulated flexible connector wire | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required | 70 |
| 60227IEC42(RVB) | Copper conductor PVC insulated flat flexible connector wire | ||
| RVS | Copper conductor PVC insulated flexible twisting connector wire | ||
| 60227IEC52(RVV) 60227IEC53 | Copper conductor PVC insulated PVC sheathed round flexible connector wire |
