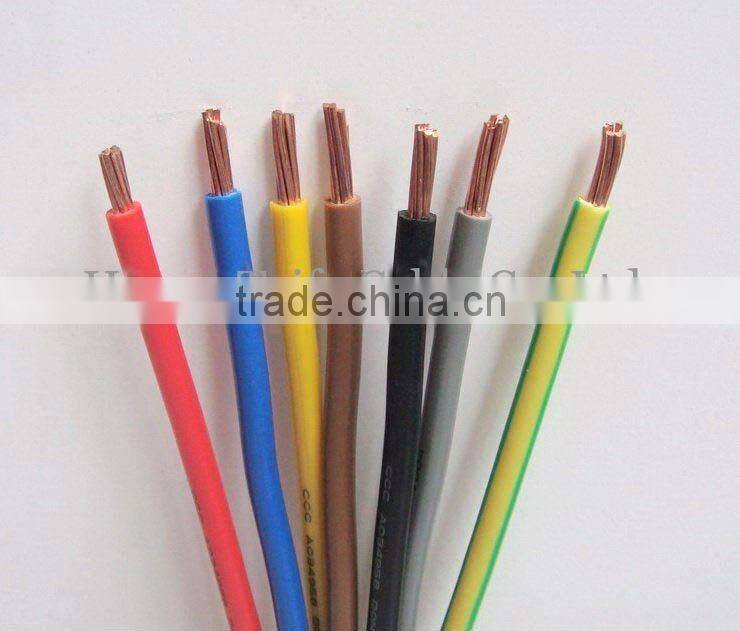

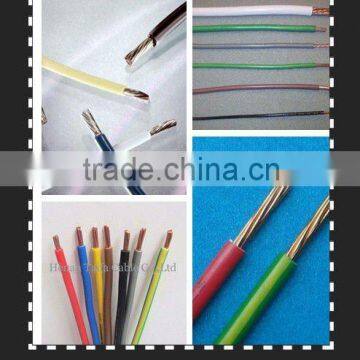

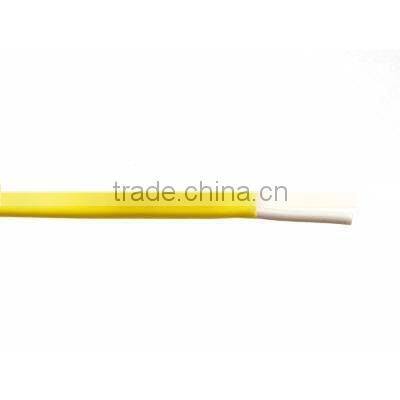

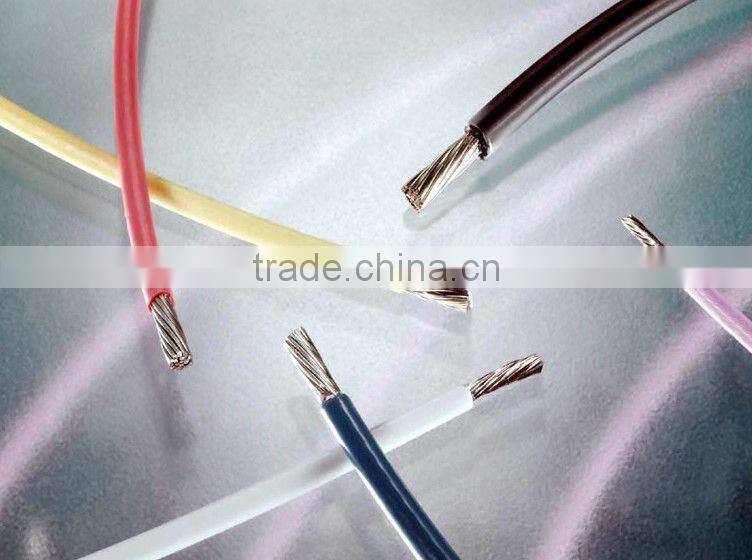

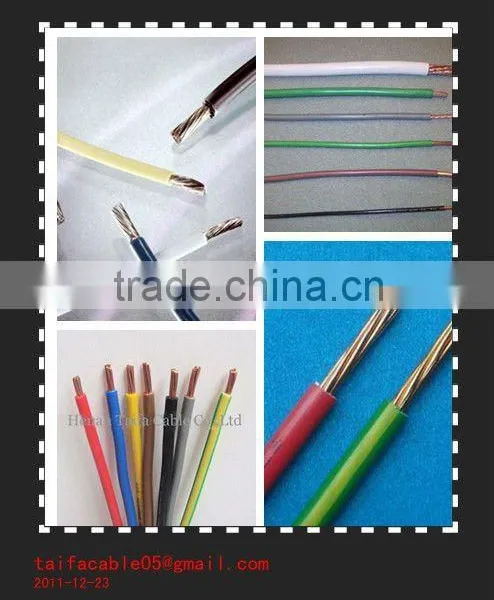

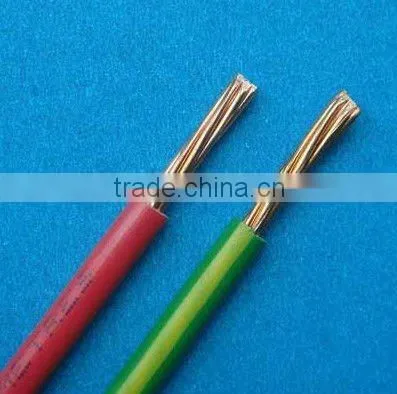

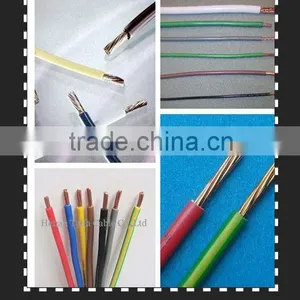

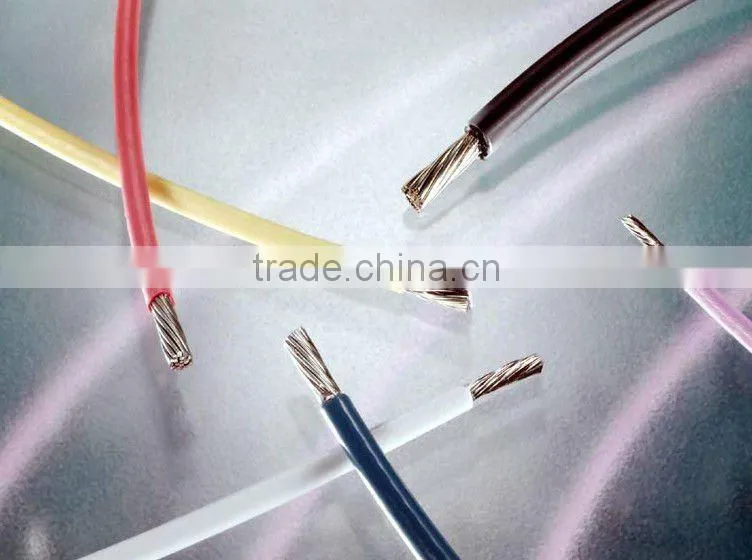

Good Choice and 30 Manufacturer 450/750V BS 7211 H07Z-R/H07Z-U Wire
US$ 0.1 - 99
MOQ: 5 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
taifa
Model Number:
H07Z-U
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Core Aluminium Conductor PVC Insulated and Sheathed and Armoured AYFY AYW CableUS$ 0.01 - 23.5MOQ: 2 Meters -
Best-selling Twisted Electric Wire Cable for House Hold RVS CableUS$ 1 - 100MOQ: 5 Kilometers
-
Control Flexible Cable 7x1.5mmUS$ 0.1 - 99MOQ: 1000 Meters
-
ISO9001,2000 Approval 6242Y Twin and Earth CableUS$ 0.1 - 10MOQ: 1000 Meters
-
Good Quality and Hot-selling Self Supporting Cable 2x35mm 2x10mmUS$ 0.1 - 50MOQ: 5 Kilometers
Place of Origin
Henan, China
Brand Name
taifa
Model Number
H07Z-U
Type
Insulated
Application
Other, construction
Conductor Material
Copper
Conductor Type
Solid
Insulation Material
Other, LSZH
Specifications
Standards: CENELEC HD 22.9. BS 7211Construction:
1- Solid or Stranded Copper Conductor
2- Special LSOH insulation
|
PVC INSULATED FLEXIBLE ROUND MULTI-CORE electric wire | |||
| SIZE/MM2 | STRUCTURE/MM | OVERALLDIAMETER/MM | |
| 2CORE | 0.75 | 24X0.2 | 7.6 |
| 1 | 32X0.2 | 7.8 | |
| 1.5 | 30X0.25 | 8.8 | |
| 2.5 | 49X0.25 | 11 | |
| 3CORE | 0.75 | 24X0.2 | 8 |
| 1 | 32X0.2 | 8.4 | |
| 1.5 | 30X0.25 | 9.6 | |
| 2.5 | 49X0.25 | 11.5 | |
| 4 | 56X0.3 | 12.5 | |
| 6 | 84X0.3 | 13.5 | |
| 10 | 126X0.32 | 16.5 | |
| 16 | 126X0.4 | 20 | |
| 25 | 196X0.4 | 30.25 | |
| 4CORE | 0.75 | 24X0.2 | 8.6 |
| 1 | 32X0.2 | 9.2 | |
| 1.5 | 30X0.25 | 11 | |
| 2.5 | 49X0.25 | 12.5 | |
| 4 | 56X0.3 | 13 | |
| 6 | 84X0.3 | 15.8 | |
| 10 | 126X0.32 | 17.6 | |
| 16 | 126X0.4 | 21.5 | |
| 25 | 196X0.4 | 33.5 | |
| 5CORE | 0.75 | 24X0.2 | 9.4 |
| 1 | 32X0.2 | 11 | |
| 1.5 | 30X0.25 | 12 | |
| 2.5 | 49X0.25 | 13.5 | |
| 4 | 56X0.3 | 14.5 | |
| 6 | 84X0.3 | 16.4 | |
| 10 | 126X0.32 | 20.1 | |
| 16 | 126X0.4 | 24.5 | |
| 25 | 196X0.4 | 37 | |
H07Z-U, H07Z-R HALOGEN FREE PVC Wire
Code: H07Z-U / H07Z-R |
| Nominal Cross Section | No. of Wires & Diameter | Thickness of Insulation | Average Overall Diameter | Approx. Total Weight | Conductor DC Resistance at 20°c | Max. Current Carrying Capacity at 30°c |
| mm2 | No.×mm | mm | mm | kg/km | Ω/km | Air A |
| H07Z-U | ||||||
| 1.5 | 1.35 | 0.7 | 2.8 | 20.0 | 12.1 | 25 |
| 2.5 | 1.73 | 0.8 | 3.4 | 31.2 | 7.41 | 34 |
| 4 | 2.19 | 0.8 | 3.8 | 45.1 | 4.61 | 45 |
| 6 | 2.68 | 0.8 | 4.3 | 63.8 | 3.08 | 57 |
| H07Z-R | ||||||
| 1.5 | 7 × 0.51 | 0.7 | 3.0 | 21.5 | 12.1 | 25 |
| 2.5 | 7 × 0.66 | 0.8 | 3.6 | 32.9 | 7.41 | 34 |
| 4 | 7 × 0.83 | 0.8 | 4.1 | 47.7 | 4.61 | 45 |
| 6 | 7 × 1.02 | 0.8 | 4.7 | 67.8 | 3.08 | 57 |
| 10 | 7 × 1.34 | 1.0 | 5.9 | 109.2 | 1.83 | 75 |
| 16 | 7 × 1.70 | 1.0 | 7.0 | 167.6 | 1.15 | 100 |
| 25 | 7 × 2.20 | 1.2 | 8.4 | 262.3 | 0.727 | 130 |
| 35 | 7 × 2.55 | 1.2 | 9.4 | 348.1 | 0.524 | 160 |
| 50 | 7 × 3.00 | 1.4 | 10.9 | 471.6 | 0.387 | 200 |
