Core Aluminium Conductor PVC Insulated and Sheathed and Armoured AYFY AYW Cable

Core Aluminium Conductor PVC Insulated and Sheathed and Armoured AYFY AYW Cable thumbnail-1
Core Aluminium Conductor PVC Insulated and Sheathed and Armoured AYFY AYW Cable photo-1
US$ 0.01 - 23.5 MOQ: 2 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
taifa CABLE
Model Number:
AYY/AYFY/AYWY
Contact Supplier Request Quote Chat Now
Henan Taifa Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name taifa CABLE
Model Number AYY/AYFY/AYWY
Insulation Material PVC
Type Medium Voltage
Application Industrial
Conductor Material Aluminum
Jacket PVC

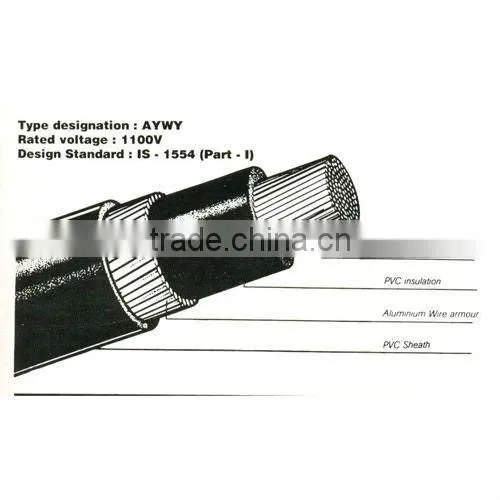

Core Aluminium Conductor PVC Insulated and Sheathed and Armoured AYFY AYW  cable



Nominal Area of Cond'tor Sq.mm Unarmoured Armoured Max.D.C. Conductor Resistance at 20°C  Ohm/KM A.C.Current Rating
Nominal Thickness of PVC
ins. mm		 Appx Overall Dia.  mm Appx. wt Kg/km Nominal Thickness of PVC
ins.    Mm		 Nominal Armour Size mm W       F Appx Overall Dia.  mm Appx wt Kg/km In Air at 40°C In Air at 40°C
PVC insulation Amps
2C    3C
HRPVC insulation Amps
2C    3C
PVC insulation Amps
2C    3C
HRPVC insulation Amps
2C    3C
10 1.0 10 110 1.3 1.4 13 220 3.080 56       47 67       56 59       51 67      58
16 1.0 12 155 1.3 1.4 15 280 1.910 72       64 86       77 75       66 86      75
25 1.2 13 190 1.5 1.4 16 330 1.200 99       84 119     101 97       86 111     98
35 1.2 14 230 1.5 1.4 17 380 0.868 120     105 144     126 120     100 137     114
50 1.4 16 290 1.7 1.4 19 460 0.641 150     130 180     156 145     120 165     137
70 1.4 17 370 1.7 1.4 20 550 0.443 185     155 222     186 170     140 194     160
95

1.6

 20 480 1.9 4X0.8 22 620 0.320 215     190 258     228 205     175 234     200
120 1.6 21 590 1.9 4X0.8 24 720 0.253 240     220 288     264 230     195 262     222
150 1.8 23 700 2.1 4X0.8 25 850 0.206 270     250 324     300 265     220 302     251
185 2.0 25 850 2.3 4X0.8 27 1010 0.164 305     290 366     348 300     240 342     274
240 2.2 28 1060 2.5 4X0.8 30 1245 0.125 350     335 420     402 335     270 382     308
300 2.4 30 1280 2.7 4X0.8 33 1495 0.100 395     380 474     456 370     295 422     336
400 2.6 34 1640 3.0 4X0.8 37 1860 0.0778 455     435 546     522 410     325 467     371
500 3.0 38 2070 3.4 4X0.8 41 2310 0.0605 490     480 588     576 435     345 496     393
630 3.4 43 2640 3.9 4X0.8 45 2920 0.0469 560     550 672     660 485     390 553     445
800 3.4 49 3295 3.9 4X0.8 52 3710 0.0367 640     630 768     756 530     440 604     502
1000 3.4 51 3945

3.9

 4X0.8 54 4375 0.0291 740     720 888     864 580     490 661     559


Core Aluminium Conductor PVC Insulated and Sheathed and Armoured AYFY AYW cableCore Aluminium Conductor PVC Insulated and Sheathed and Armoured AYFY AYW cableCore Aluminium Conductor PVC Insulated and Sheathed and Armoured AYFY AYW cableCore Aluminium Conductor PVC Insulated and Sheathed and Armoured AYFY AYW cable
