Specifications
Overhead cable1.Strict QC
2.ISO9001:2008
3.Competitive price
4.Fast delivery

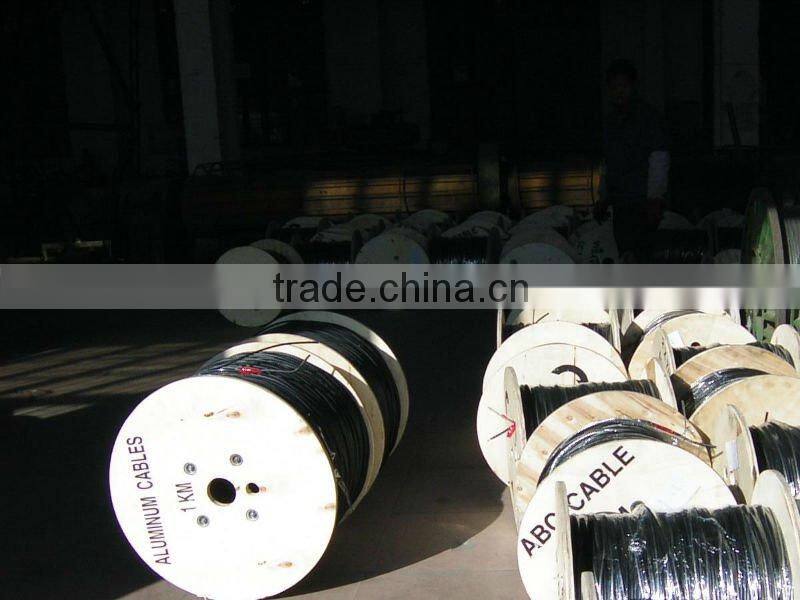

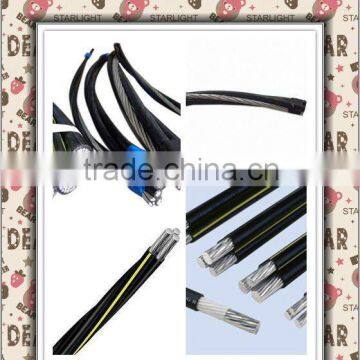

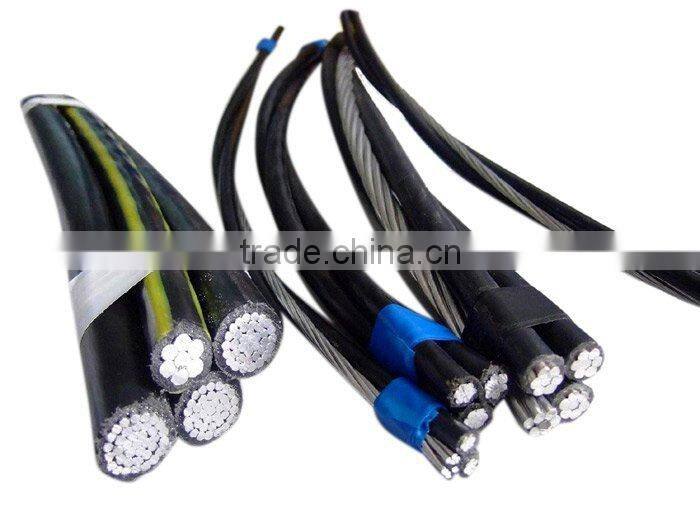

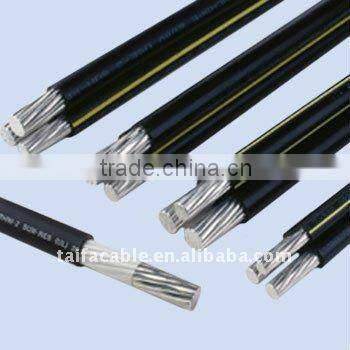

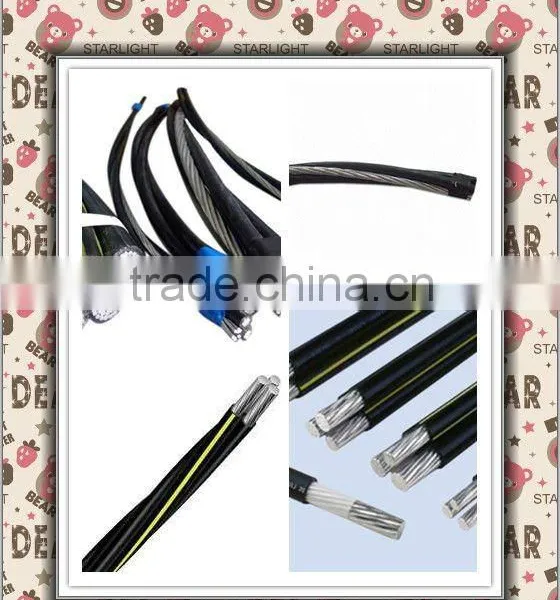

Good quality and hot-selling Self supporting cable 2x35mm 2x10mm
Applications:
Used to supply 3 phase power, usually from a pole- mounted transformer, to the user's service head where connect to the service entrance cable. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for PE insulated Conductors or 90°C for crosslinked polyethylene (XLPE) insulated conductors.
Construction:
Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded 6201, AAC, or ACSR. One conductor is manufactured with an extruded ridge for phase identification.
Installation:
For service at 600 volts or less (phase to phase) at a maximum conductor temperature of 75ºC for Polyethylene insulation or 90ºC for Cross-Linked (XLPE) insulation
Specifications
Quadruplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.
B-230 Aluminum Wire, 1350-H19 for electrical purposes
B-231 Aluminum Conductors, concentric-lay-stranded
B-232 Aluminum Conductors, concentric-lay-stranded, coated steel reinforced(ACSR)
B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
B-498 Zinc-coated Steel Core Wire for Aluminum Conductors, steel reinforced(ACSR/AZ)
Triplex Service Drop cable meets or exceeds all aplicable requierements of
ANSI/ICEA S-76-474.
Remarks:
1) Designated sizes are : ACSR 6/1 diameter equivalent and AAC with equivalent
resistivity per ASTMB-399 for 6201.
2) Conductor temperature of 90°C for XLPE 75°C for PE; ambient temperatures of
40°C; emissivity 0.9; 2ft./sec/wind in sun.
Main Export Markets:
Eastern Europe
North America
Mid East/Africa
Central/South America
Asia
Western Europe
Australasia
The advantages of our company:
1) Our company is a professional supplier of various kinds of cables for over 10 years.
2) The quality of our products are guaranteed. They are all with CCC, CE, CB and RoHS certificates.
3) The price is averagely 10%~20% lower than the other competitors. Because our factory is located
in a small town. The labor and raw materials cost are relatively low there.
4) Huge Inventory Allows Us To Ship Your Order Immediately
5) Our employees are all capable and professinal. They can offer you the Prompt Courteous Service.
6) We ship worldwide.
Package:
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2) Outer packing:carton box, pull box, wooden case
3) Other packing requirement according to client's' request
If you are interesting in or need which of them pls feel free to contact with us. Everything we do is trying to make your business more successful.
