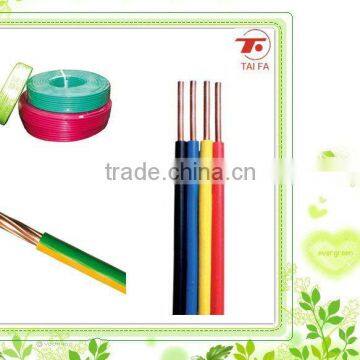

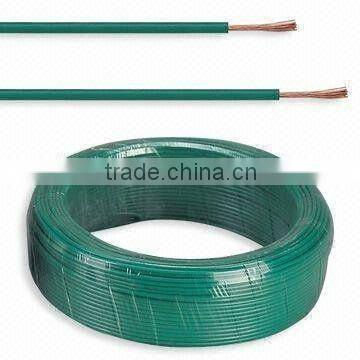

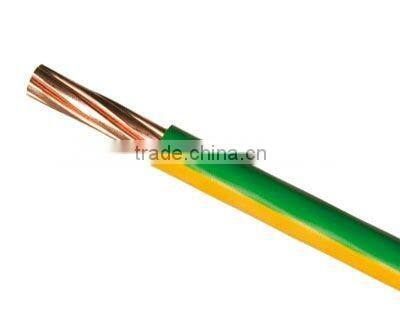

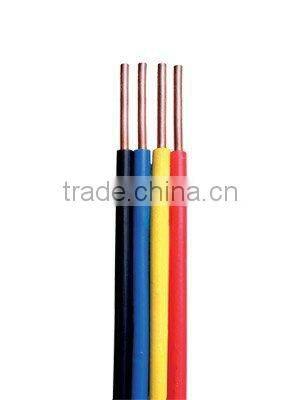

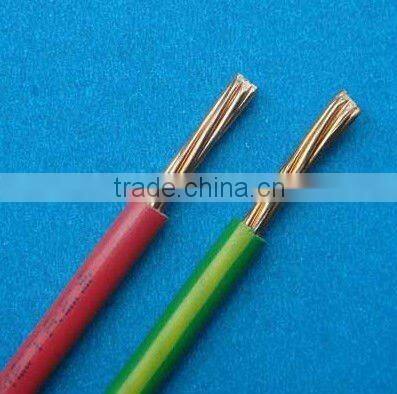

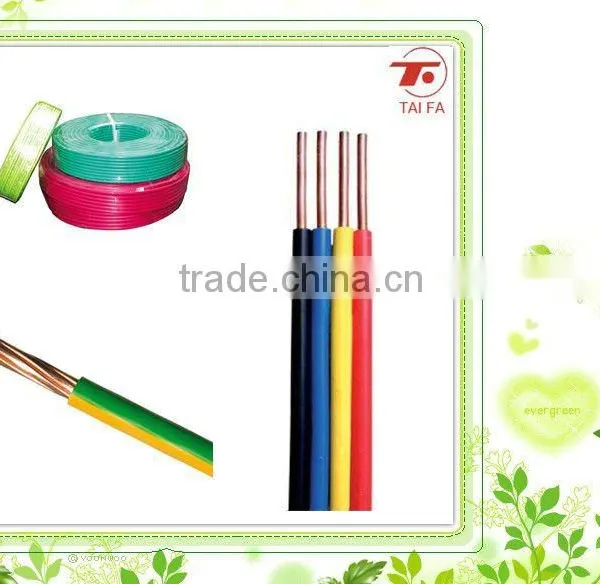

high quality and good performance LV H07V2-K/H05V2-K /H07V2-R cable

Nominal

cross-section

mm²

Conductor

Type

Upper limit

Of O.D.

mm

Max. D.C.

resistance

at 20°C

Ω/km

Min. insulation resistance

at 70°C

MΩ·km

Approx.

ampacity

A

Reference

weight

of cable

kg/km

1.5

1.5

2.5

2.5

4.0

4.0

6.0

6.0

10

16

25

35

50

70

95

120

150

185

240

300

400

1

2

1

2

1

2

1

2

2

2

2

2

2

2

2

2

2

2

2

2

2

3.3

3.4

3.9

4.2

4.4

4.8

4.9

5.4

6.8

8.0

9.8

11.0

13.0

15.0

17.0

19.0

21.0

23.5

26.5

29.5

33.5

12.1

12.1

7.41

7.41

4.61

4.61

3.08

3.08

1.83

1.15

0.727

0.524

0.387

0.268

0.193

0.153

0.124

0.0991

0.0754

0.0601

0.0470

0.011

0.010

0.010

0.009

0.0085

0.0077

0.0070

0.0065

0.0065

0.0050

0.0050

0.0040

0.0045

0.0035

0.0035

0.0032

0.0032

0.0032

0.0032

0.0030

0.0028

25

25

34

34

44

44

58

58

79

111

146

180

282

281

344

397

456

519

592

685

799

20.0

21.5

31.8

34.8

46.8

50.3

66.5

71.0

116.0

180

277

375

536

706

977

1231

1503

1870

2457

3053

3948
