Specifications
1.Factory built in 19912.ISO9001
3.One year Product Warranty
4.Products in stock

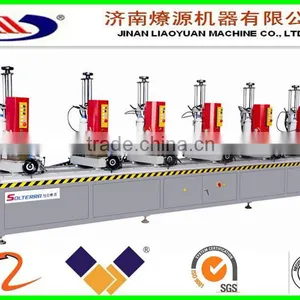

Multi Spindle Drilling Machine for Aluminium Profile Made In China
Jinan Liaoyuan Machinery Co., Ltd. is a leading and professional machinery manufacturer in China, which established in 1991. We have passed the ISO9001:2008 Certification and CE Certification.We regard industry healthy development as duty, products quality as basic and clients' satisfaction as target.
1.High quality, Fair Price, Fast Delivery.
2.OEM Service, Trail Order
3.The Color, The logo, The package according to your request,
4.We are the Manufacturer,We have many engineers for the solutions for the new market to keep the trend of the world.
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company for Aluminum win-doors and curtain wall.
Product Details:
Super quality! Lowest price!! Best service!!!
As a Manufaturer, We are looking forward to finding the agents of our products all over the world!!
Equipment Features:
1. Used for drilling holes on aluminum profiles and curtain wall profiles, expecially apply for long workpieces and mass production.
2. The processing Max. profile section size is 250*250mm, and the max. processing length is 5000mm.
3. Multi-head boring anchor can be fixed to meet multi-holes processing requirement.
4. Feeding system adopts hydraulic-damping cylinder, which ensures a smooth feeding.
5. Imported PLC control system makes a possible machine heads' linkage.
Main Specification and Technical Parameters:
| Mode | LZZ6-13 |
| Power Supply | 380V 50Hz |
| Cutting Motor Power | 4*0.75kw |
| Max Drilling Hole Diameter | 13mm |
| Max. Distance Between Two Drilling Holes | 5000mm |
| Min. Distance Between Each Group Holes | 300mm |
| Power Unit Quantity | 4 |
| Max. Moving Distance at Horizontal Direction of Drilling Head | 120mm |
| Moving Distance at Vertical Direction | 150mm |
| Worktable Size (L*W) | 300*220mm |
| Drilling Head Feeding Travel | 125mm |
| Feeding Pressure | 0.5~0.8MPa |
| Max. Processing Profile Section Size | 250*250mm |
| Overall Dimension(L*W*H) | 5500*1100*1800mm |
| Weight | about 880kg |
The Machine Picture:
Auminum window processing equipments
Package and shipping
Company Profile
Jinan Liaoyuan Machine Co.,Ltd Attend Annual Exhibition
Machine for Aluminum doors and windows
1.Aluminum cnc four corner crimping Machine
2.Aluminum Notching Saw
3.Aluminum multi head copy router
With Fully ISO9001 Approved, For more information about the certificate,please
feel free to contact me!!
After-sale service
