Specifications
1.ISO9001:20082.Window Machine Manufacturer with more than 20 years' experience
3.Factory audited by SGS

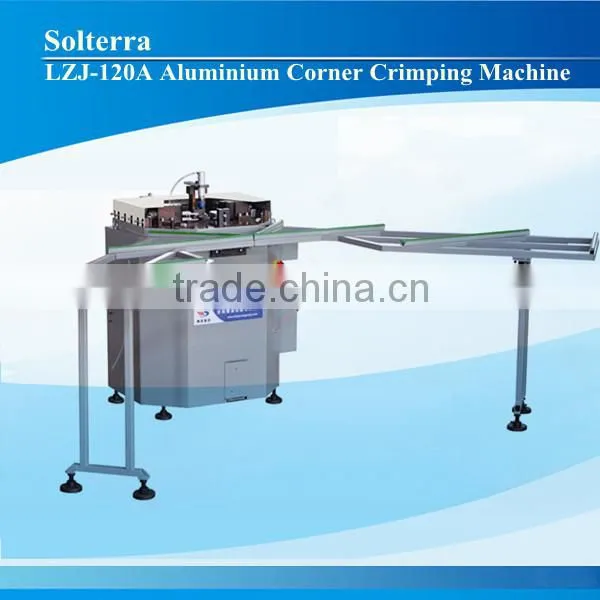

Aluminum Windows Manufacturing Machine Corner Crimping Machine
1.High quality, Fair Price, Fast Delivery.
2.OEM Service, Trail Order
3.The Color, The logo, The package according to your request,
4.We are the Manufacturer,We have many engineers for the solutions for the new market to keep the trend of the world.
5.Product Video Can be sent to you for check.
| Name | Aluminum Windows Manufacturing Machine Corner Crimping Machine |
| Model | LZJ-120A |
| Brand | SOLTERRA |
| Certificates | ISO9001:2008,SGS |
| Warranty | The Warranty time is one year, Engineers available to the service |
| Delivery time | Within 12-16 working days after receiving the down payments |
| Payment terms | L/C,T/T,Western union |
As a factory, We are looking forward to finding the agents of our products all over the world!!
Equipment Features:
1.The frame is specially jointed by steel with high quality and durable .
2.Adopt new mechanical linkage device,realized complete synchronous corner combining.
3.Synchro feeding structure make the adjustment very easy
4.Screw thread regulates the distance tertween up and down crimping blade ensures regulated blades easily.
5.It is collocate single cutter of many points crimping cutter ensure reliably crimping for aoll kinds of profiles.
Main specification and technical parameter:
| Power supply | 380V 50Hz |
| Main Motor mput power | 1.1KW |
| Rated oil pump pressure | 16Mpa |
| Motor rotational speed | 1400r/min |
| Profile processing height | Max 120mm |
| Profile processing width | 90mm |
| Total combining pressure | 0.3~0.8Mpa |
| Air consumption | 2L/min |
| General pressure of corner combining | 48KN |
| The adjustable range of the main location block | 70mm |
| Overall dimension | 1000*1200*1200mm |
| weight | 350kg |

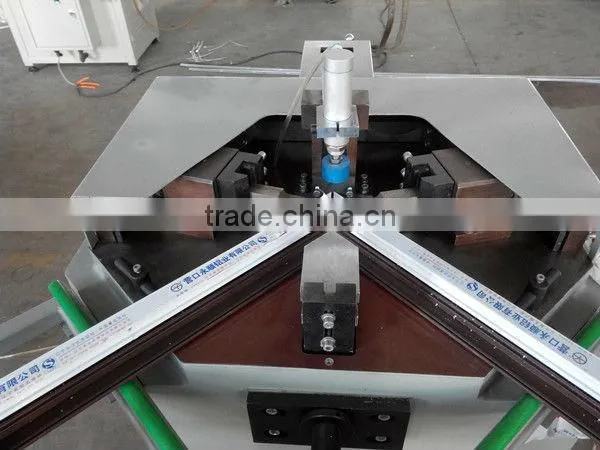

Machine Images
We will use high standard export wooden case for the long-term shipping, also customers' specific requirement can be available.
Liaoyuan Machine established in the 1990s. Liaoyuan Machine is located in Jinan city of China, originally started to make pvc/aluminum window & door machine from 1991 year. We are the only one chinese company who enjoy the capacity from spare parts casting, machine design, technology innovation and machine assembling, which are totally achieved at your factory.
In more than 20 years of development, Liaoyuan Machine has energetically explored the resource development space to realize rapid development. Nowadays, Liaoyuan Machine has been developed into a large machine tool production enterprise with a land area of four hectares, a workshop area of 15,000 square meters, more than 350 employees, more than 100 sets of professional production equipment and annual designing and production ability of more than 700 sets of machine tools. In 1998, Liaoyuan Machine was granted the authorized import & export license by the Commission of Foreign Trade and Economic Cooperation of China
Jinan Liaoyuan Machine Co.,Ltd Attend Annual Exhibition
With Fully ISO9001 Approved, For more information about the certificate,please
feel free to contact me!!
Contact Information:
We need to Make the special cutters according to customers' aluminum profile,Please send us the Profiles, or the drawing of the profile,then We will design and make the cutter for you.
