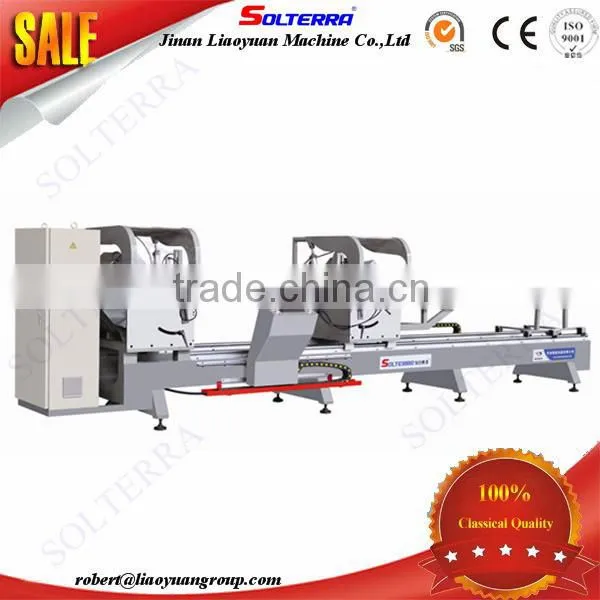

Aluminum Windows CNC Double Head Cutting Machine
This Machine is popular for processing aluminum and upvc windows
1.High quality, Fair Price, Fast Delivery.
2.OEM Service, Trail Order
3.The Color, The logo, The package according to your request,
4.We are the Manufacturer,We have many engineers for the solutions for the new market to keep the trend of the world.
5.Product Video Can be sent to you for check.
| Name | Aluminum Windows CNC Double Head Cutting Machine |
| Model | LJZ2-CNC-500x4200 |
| Brand | Solterra |
| Certificates | ISO9001,SGS |
| Warranty | The Warranty time is One year, With Engineers available to the service |
| Packages | Non fumigation Crate |
| Delivery time | 30 days for 5 sets, 50 days for 10 sets |
| Payment terms | L/C,T/T,Western Union |
Super quality! Lowest price!! Best Service!!!
As a factory, We are looking forward to finding the agents of our products all over the world!!
Features and functions:
1. Used for cutting aluminum profiles for door-window, curtain wall etc.
2. The feeding system adopts the imported linear guide pair, with high accuracy and stability.
3. Right head feeding adopts high helical pitch ball screw-lead motion, with high accurate driving, locating and smooth working.
4. Two saw heads are adjustable and cut profiles at 45°/ 90° freely.
5. Imported carbide saw blade features accurate processing and high endurance.
6. Imported linear guiding pair ensures steady processing accuracy.
7. Saw blade rotates smoothly due to high accurate main spindle.
8. Uniform speed feeding and smooth motion is due to air hydraulic clamping.
9. Auto-opening shield makes the operation more safety.
10. Middle auto-induction profile supporter and following profiles supporter made the loading and clamping convenient.
Main Specification and technical Parameter
Power supply |
380V 50Hz |
Cutting motor power |
2x2.2kW |
Cutting motor rotary speed |
2800r/min |
Air pressure |
0.5~0.8MPa |
Air consumption |
60L/min |
Blade specification |
Φ500xΦ30x4.4xZ120 |
Cutting speed |
Stepless speed regulation 0~3m/min |
Max. cutting length |
4200mm |
Min. cutting length |
375mm |
Cutting width |
Max. 135mm |
Cutting height |
90°: max 300mm 45°: max 200mm |
Max cutting section |
135x300mm |
Cutting angle |
90°, 45° |
Repeat locating length tolerance |
±0.2mm |
Cutting profile surface plane |
≤0.1mm |
Cutting angle tolerance |
Ra12.5µm |
Overall dimension |
5900x1300x1400mm |
Machine Images
Auminum window processing equipments
We will use high standard export wooden case for the long-term shipping, also customers' specific requirement can be available.
Liaoyuan Machine established in the 1990s. Liaoyuan Machine is located in Jinan city of China, originally started to make pvc/aluminum window & door machine from 1991 year. We are the only one chinese company who enjoy the capacity from spare parts casting, machine design, technology innovation and machine assembling, which are totally achieved at your factory.
In more than 20 years of development, Liaoyuan Machine has energetically explored the resource development space to realize rapid development. Nowadays, Liaoyuan Machine has been developed into a large machine tool production enterprise with a land area of four hectares, a workshop area of 15,000 square meters, more than 350 employees, more than 100 sets of professional production equipment and annual designing and production ability of more than 700 sets of machine tools. In 1998, Liaoyuan Machine was granted the authorized import & export license by the Commission of Foreign Trade and Economic Cooperation of China
Jinan Liaoyuan Machine Co.,Ltd Attend Annual Exhibition
With Fully ISO9001 Approved, For more information about the certificate,please
feel free to contact me!!
Contact Information:
We need to know what kind of profile you want to cut, and the Max length of the profiles, and then We will recommend suitable machine for you. Your detailed information will be highly useful for your solutions
