Aluminum windows Multi Head Drilling Machine Made In China
- 360 Set / Sets per Month
- Qingdao
- T/T Credit Card
- Pneumatic spray machine Steel structure special multi-functional high pressure airless spray machine environmental protection and paint saving
- Concrete mixing station machine
- Gypsum block production line
- sale for Temperature plate slotting machine
- Welding rod production line equipment
- 8 hours 4-5 tons of electrode production line equipment
Product Details
Place of Origin: | Shandong, China | Brand Name: | SOLTERRA | Model Number: | LZZ4-13 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Aluminum Multi Head Drilling Machine Made In China
Jinan Liaoyuan Machinery Co., Ltd. is a leading and professional machinery manufacturer in China, which established in 1991. We have passed the ISO9001:2008 Certification and CE Certification.We regard industry healthy development as duty, products quality as basic and clients' satisfaction as target.
1.High quality, Fair Price, Fast Delivery.
2.OEM Service, Trail Order
3.The Color, The logo, The package according to your request,
4.We are the Manufacturer,We have many engineers for the solutions for the new market to keep the trend of the world.
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company for Aluminum win-doors and curtain wall.
As a Manufaturer, We are looking forward to finding the agents of our products all over the world!!
Equipment Features:
1. Used for drilling holes on aluminum profiles and curtain wall profiles, expecially apply for long workpieces and mass production.
2. The processing Max. profile section size is 250*250mm, and the max. processing length is 5000mm.
3. Multi-head boring anchor can be fixed to meet multi-holes processing requirement.
4. Feeding system adopts hydraulic-damping cylinder, which ensures a smooth feeding.
5. Imported PLC control system makes a possible machine heads' linkage.
Main Specification and Technical Parameters:
Mode | LZZ4-13 |
Power Supply | 380V 50Hz |
Cutting Motor Power | 4*0.75kw |
Max Drilling Hole Diameter | 13mm |
Max. Distance Between Two Drilling Holes | 5000mm |
Min. Distance Between Each Group Holes | 300mm |
Power Unit Quantity | 4 |
Max. Moving Distance at Horizontal Direction of Drilling Head | 120mm |
Moving Distance at Vertical Direction | 150mm |
Worktable Size (L*W) | 300*220mm |
Drilling Head Feeding Travel | 125mm |
Feeding Pressure | 0.5~0.8MPa |
Max. Processing Profile Section Size | 250*250mm |
Overall Dimension(L*W*H) | 5500*1100*1800mm |
Weight | about 880kg |

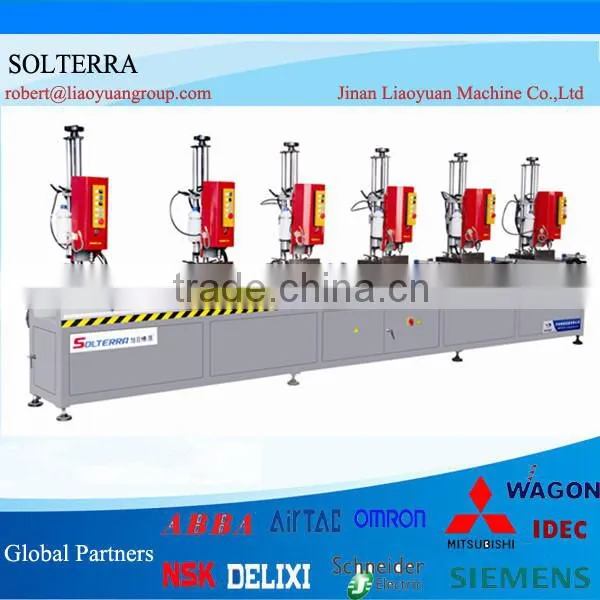

The Machine Picture:
Auminum window processing equipments
We will use high standard export wooden case for the long-term shipping, also customers' specific requirement can be available.
We provide installation service for the machine we manufacture. Typically we provide a qualified and trained installation supervisor to assist the installation crew, supplied by the customer, and to ensure compliance with our design.
Liaoyuan Machine established in the 1990s. Liaoyuan Machine is located in Jinan city of China, originally started to make pvc/aluminum window & door machine from 1991 year. We are the only one chinese company who enjoy the capacity from spare parts casting, machine design, technology innovation and machine assembling, which are totally achieved at your factory.
In more than 20 years of development, Liaoyuan Machine has energetically explored the resource development space to realize rapid development. Nowadays, Liaoyuan Machine has been developed into a large machine tool production enterprise with a land area of four hectares, a workshop area of 15,000 square meters, more than 350 employees, more than 100 sets of professional production equipment and annual designing and production ability of more than 700 sets of machine tools. In 1998, Liaoyuan Machine was granted the authorized import & export license by the Commission of Foreign Trade and Economic Cooperation of China
Jinan Liaoyuan Machine Co.,Ltd Attend Annual Exhibition
With Fully ISO9001 Approved, For more information about the certificate,please
feel free to contact me!!
Contact Information:
Question 1. Are you a Manufacturer or a trading company?
Answer 1. We are not a trading company,We are the top Machine Manufacturer,Which involves Raw materail casting,Machine body processing,Machine assembling,Painting,Machine quality Inspecting and etc.
Q 2. What is the minimum quantity for order ?
A2: Normaly One Set. and We will give some discounts if you can buy one complete set of Machine.
Q3. Do you have stock product ready to deliver?
A 3. We have many machines in stock, So We can guarantee the fast delivery time and make sure you can check the machine on LIVE-DEMONSTRATION at any time.
Q4. How do you deliver the finished products?
A 4, For FCL, We delivered by Sea
For LCL, We delivered by Sea and by Plane for only urgent requirement
For Spare Parts,We delivered by Courier,TNT, FEDEX,DHL,UPS,EMS, and Etc.
Q5,How can you guarantee the after-sales service?
A 5, We have a first-class engineers for the machine installation, tranining, and after-sales, we also have branch office in ovesea to keep the good after-sales service,They have a professional work team with exquisite experience.
Q6, What's delivery time for the machines.
A 6, We will arrange the shipment within 6 days after receiving the payment.
Q7, Do you inspect the finished products?
A7, Yes, Each step of production products will be camed out inspection by QC department before shipping.
