Specifications
1.min cnc engraving machine2.THK linear rail
3.Can optional rotary device
4.water cooling processing system
5.CE

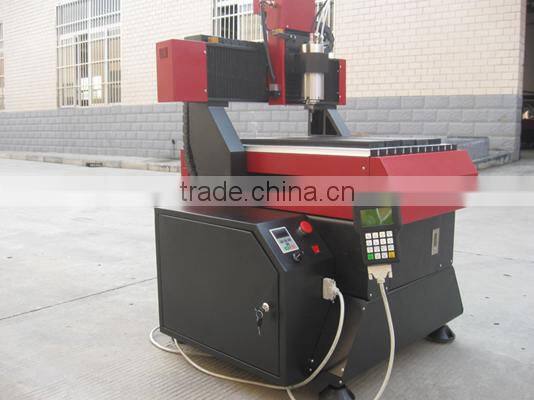

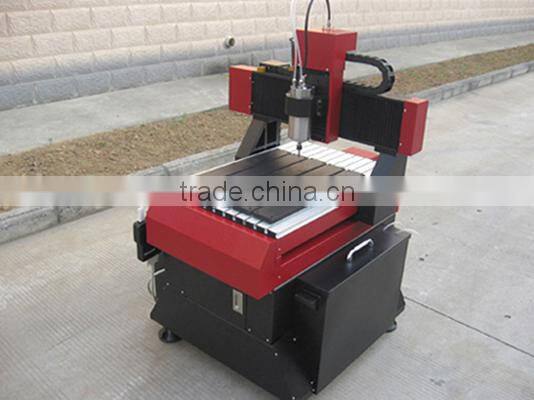

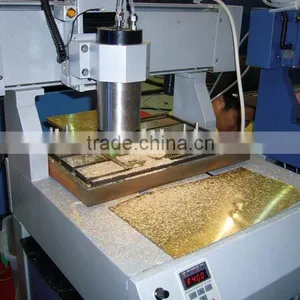

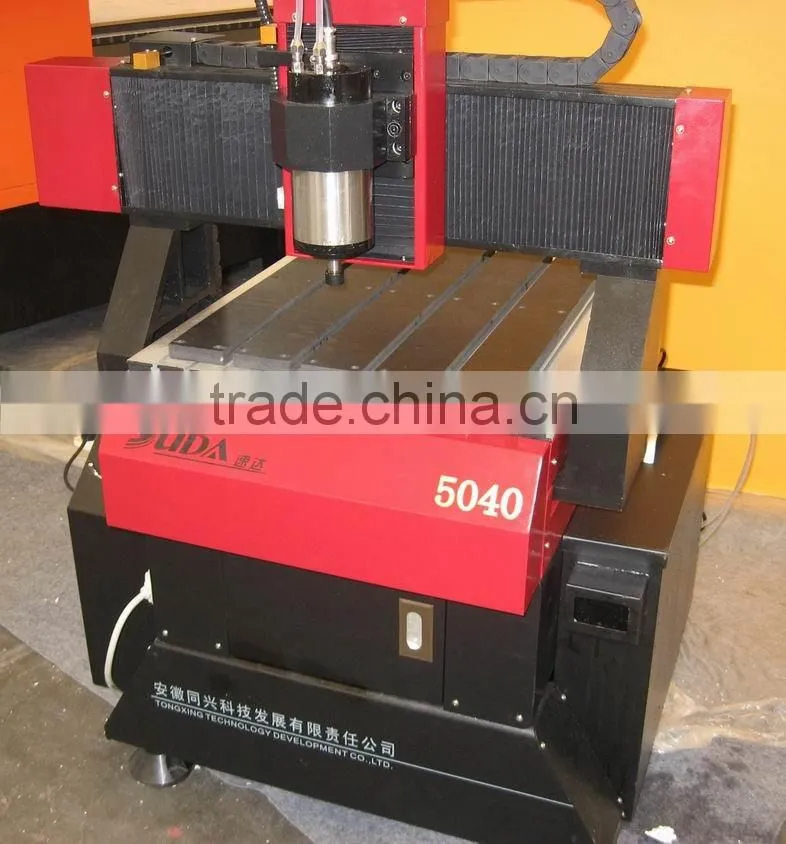

SUDA SPEEDY CNC ENGRAVER
SD4030MV_PERFORMANCE
Integral cast-iron frame.
Rolling ball screw from Germany.
Configured with 800w inverter-driven spindle motor cooled by water.

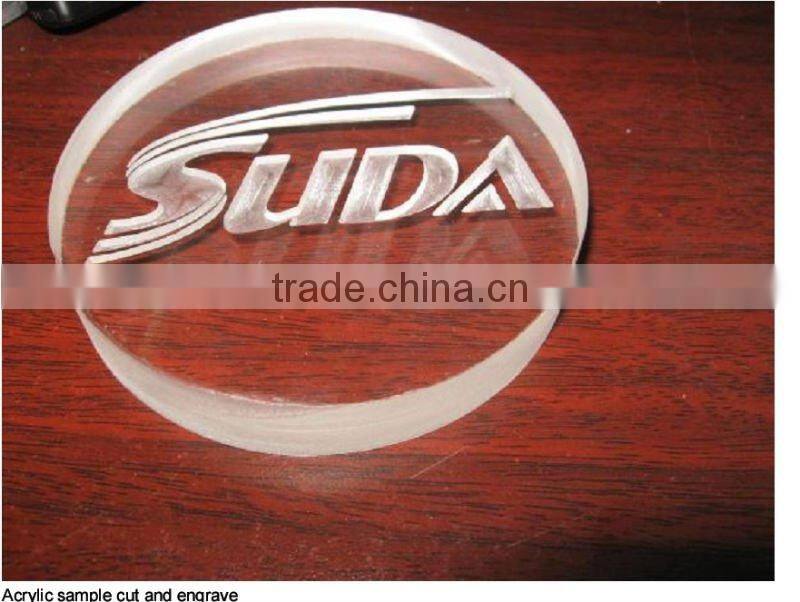

Application:advertising,seals processing,hand crafts,special instruments processing,little moulds processing etc.
Characteristics: Be good at processing small precision instruments,multi-file speed control, speed curve and a straight line independent control;high-speed data transmission;higer power,process metal material in high efficiency.

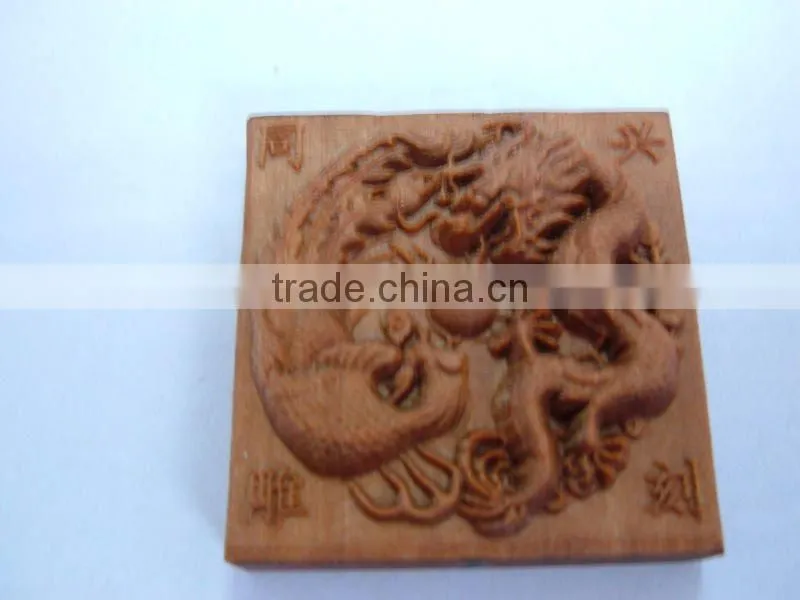

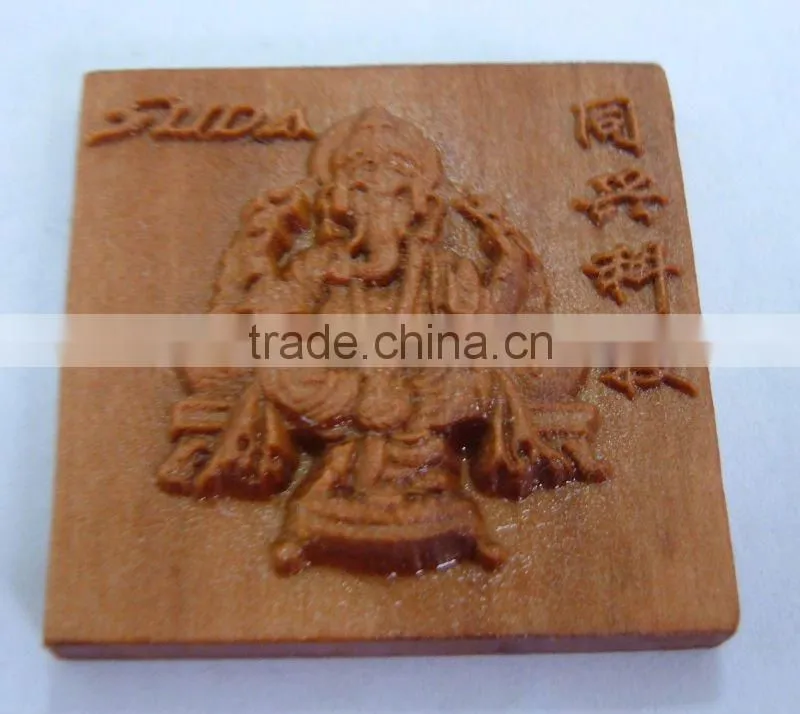

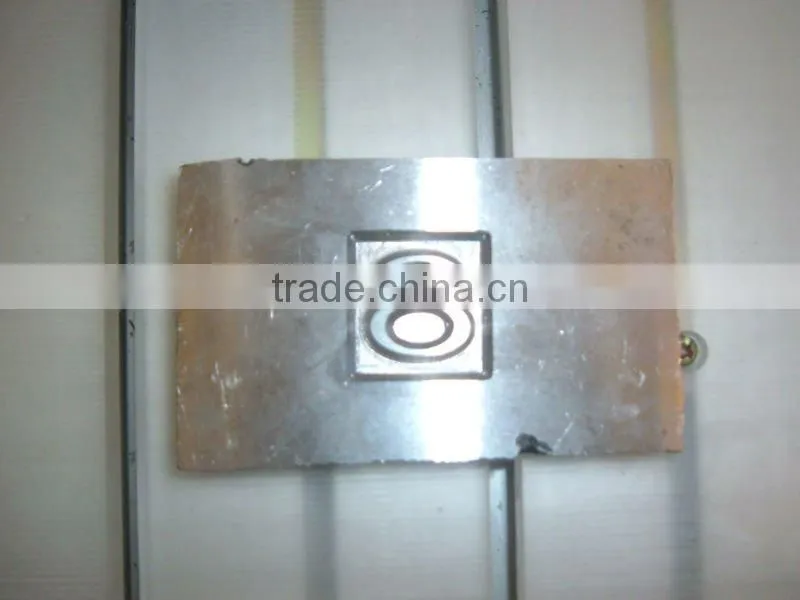

Processed products:stainless steel chest-brand,copper seals,jade seals,making on the working piece,copper electrodes,punching moulds and thermos dies,etc
SD025MV
Model 3025mv cnc milling& engraving machine
Integral cast-iron frame.
Rolling ball screw from Germany.
Configured with 1500w inverter-driven spindle motor cooled by water.
Adopt the most advanced FPGA colored LCM controlling system.
Feature :be good at processing small precision instrument,working without computer,standard configured with 2GB inner mermory capacity,support USB transmitting files,can save massive processing files,power off restoring,breaking point continuation,and auto-feeding blades function.
Brand |
Model |
Working size |
Configuration |
PRICE |
|
Suda speedy cnc engraver series |
SD2616 |
260*160*40mm |
The delicate machine body in integral iron-cast frame,long work lifetime. Adopt rolling ball screw made in Germany. Configured with 800w inverter-driven spindle motor cooled by water.in high quality with competitve price.
|
|
|

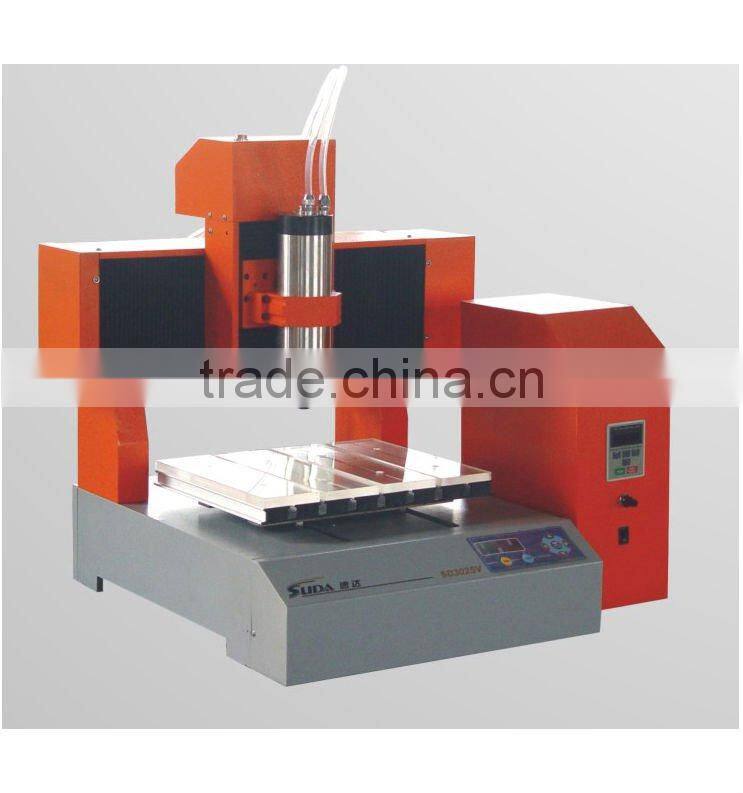

SD325SV |
300*250*40mm |
x.y.z.all axis configured with imported linear square rail,more processing accuracy integral iron-cast frame. Adopt SUDA professional Nccontrolling system,rapid calculation. 800w inverter-driven spindle motor cooled by water. Equipped with independent drive system,and rolling-ball screw from Germany. Compatible with many CAD/CAM software. Can add USB transmitting function,the update charges cost USD50 |
|
||
SD3025MV |
300*250*40mm |
Adopt the most advanced FPGA colored LCM controlling system. Integral cast-iron frame,non deformation Independent control cabinet,safe operation. Configured with 1500w inverter-driven spindle motor cooled by water. configured with 2GB inner mermory capacity,support USB transmitting files,can save massive processing files. x.y.z.all axis configured with THK linear rail frim japan,more stable movement in high accuracy water cooling processing system,splendid cabinet. |
|
||
SD4030 |
400*300*40mm |
Adopt the most advanced FPGA colored LCM controlling system. Integral cast-iron frame,non deformation Independent control cabinet,safe operation. Configured with 1500w inverter-driven spindle motor cooled by water. configured with 2GB inner mermory capacity,support USB transmitting files,can save massive processing files. x.y.z.all axis configured with THK linear rail frim japan,more stable movement in high accuracy configure with cast-iron work table,and water cooling processing system. |
|
||
Rotary device |
3025series and 4030 madel can be mounted rotary . Device optionally to realize multi-functional operation not only for plane but also for cylinder engraving. |
|
|||
Options |
Water cooling processing system |
USD100 |
Vacuum system |
USD500 |
|
Splendid machine cabinet |
USD100 |
Dust collecting system |
USD200 |
||
