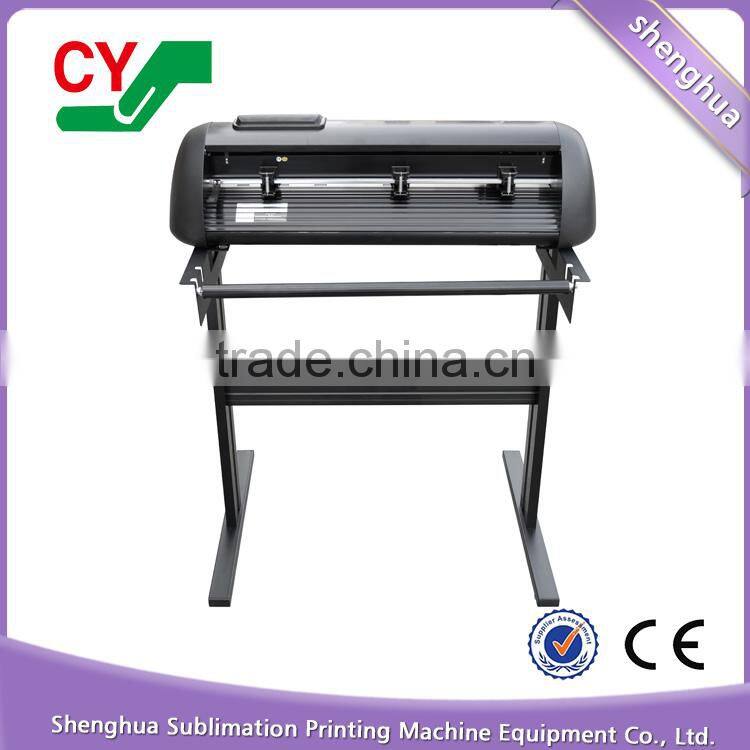

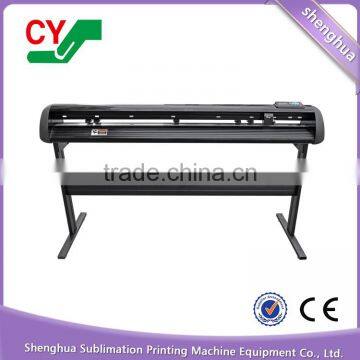

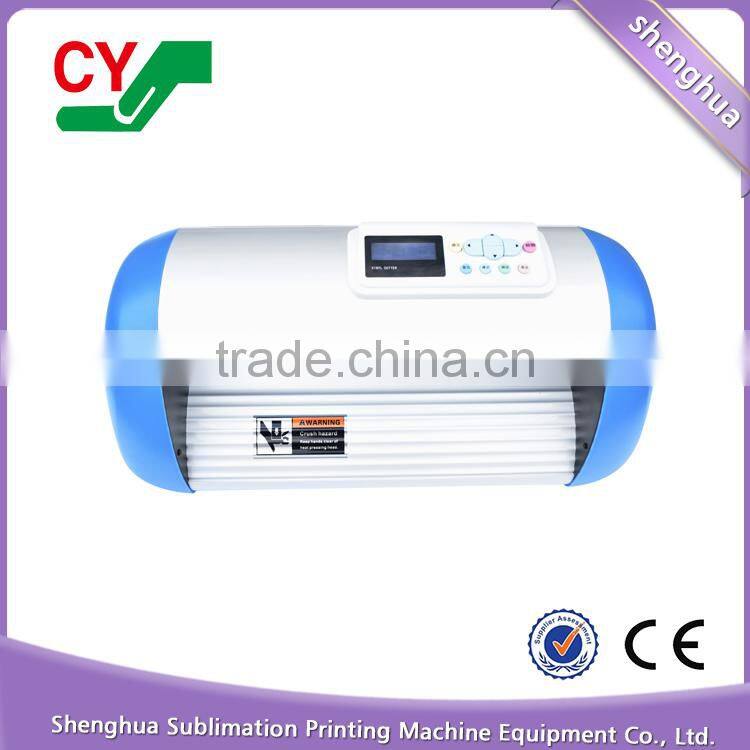

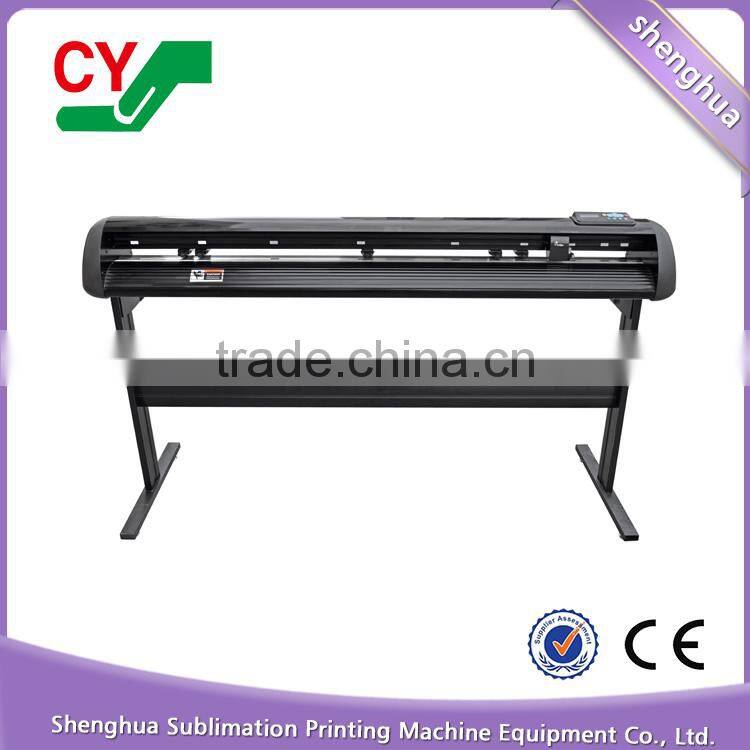

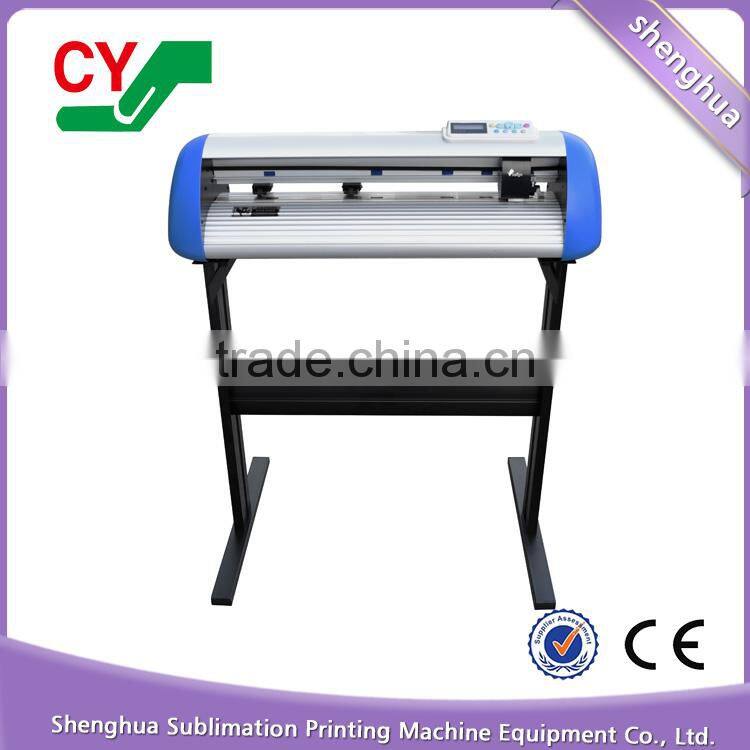

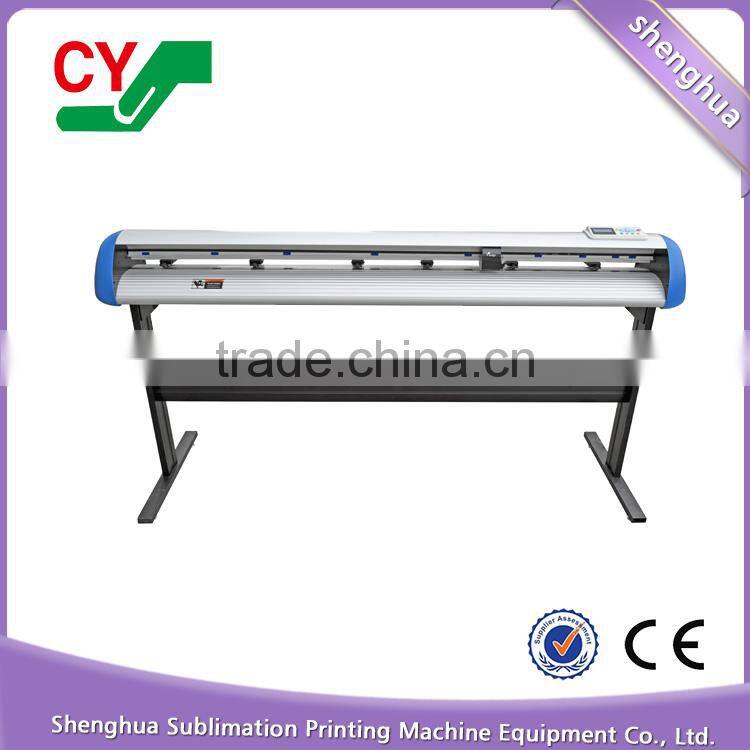

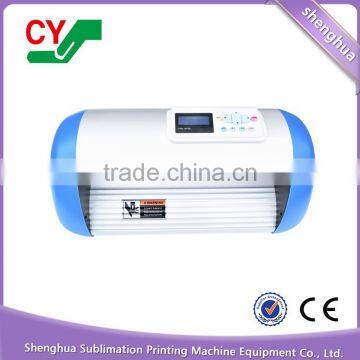

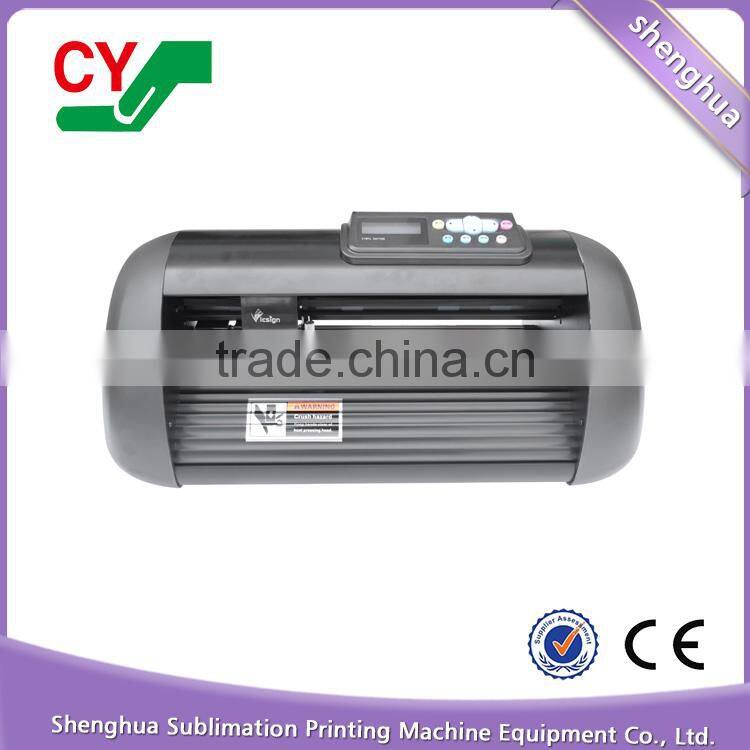

Help CenterHigh Speed Efficient 1200mm Wide Word and Image Vinyl Paper Cutting Plotter
Related Products
-
High Quality Drinking Glass Ceramic Coffee Mug Printing 5 in 1 Mug Heat PressUS$ 180 - 250MOQ: 1 Unit -
Multi-function Heat Transfer Digital Printing 8 in 1 Combo Heat Press MachineUS$ 119 - 299MOQ: 1 Set
-
Professional Big Size Plate Heat Transfer t Shirt Printing Sublimation Heat PressUS$ 475 - 769MOQ: 10 Sets
-
Manual High Quality Multicolor Sublimation t Shirt Big Size Heat Press MachineUS$ 180 - 480MOQ: 1 Set
-
Hot Sale Adjustable Sublimation T-shirt Printing Cheap Heat Press MachineUS$ 88 - 188MOQ: 1 Set
Features:
1.automatic contour cutting
2.use software automatic Flexi11,signmaster and coreldraw plugin
3.Interface: RS232, USB2.0, SD card, U disk
4.pure USB2
5.Buffer memory: 8M
6.cut material: vinyl,cardboard, reflective film,tinfoil,aluminium foil,sticker
7.Cutting force: 1000g
8.Cutting speed: 650mm/s
9.Support computer system: windows 10 ,Windows7, Windows8, Windows XP, Vista
Type |
vinyl cutter cutting plotter machine 630MM |
vinyl cutter cutting plotter machine 1080MM |
vinyl cutter cutting plotter 1200MM |
vinyl cutter cutting plotter machine 1350MM |
|
Media way |
|
Floor stands |
|||
Main board |
16-bit CPU,1MB High-speed CACHE memory |
||||
Control panel |
Over-head,2x8 Liquid Crystal Display,13-button touch thin-film keyboard |
||||
Driver |
High speed stepping motor, micro-step driver |
||||
Max paper feed width |
630mm |
1080mm |
1200mm |
1350mm |
|
Max cutting width |
625mm |
895mm |
1095mm |
1195mm |
|
Max cutting speed |
650mm/s |
||||
Max cutting length |
20000mm<=20 |
||||
Max cutting thickness |
2mm |
||||
Knife press |
0-800g(digital adjustment) |
||||
Mechanical resolution |
0.05mm |
||||
Repeatability |
<+-0.1mm |
||||
Type of tool |
Carbide blade |
||||
Plotting instruction |
All types Diameter 11.4mm plotter pen |
||||
Interface |
USB1.0 Port and Serial Port |
||||
Power supply |
AC110V/220V±10%,50Hz |
||||
Power consumption |
<100VA |
<120VA |
|||
Operating environment |
Temperature:+5~+35,relative temperature 30%~70% |
||||
External size |
1030x275x380mm |
1200x260x1070mm |
1300x260x1070mm |
1500x260x1070mm |
|
