QT4-15 Cement block making machine with Easy Operation and High Capacity
- 20 Set / Sets per Month
- Xiamen China
- T/T
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Cement |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 20 Cement block making machine sets/month | Place of Origin: | Fujian, China | Brand Name: | HYM |
Model Number: | QT4-15 Cement block making machine | Voltage: | 220V 380V | Power: | 22.9kw |
Dimension(L*W*H): | 8200*4350*2700(mm) | Certification: | ISO9001:2000 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1,Cement block making machine
2,Block Making machine
3.Hollow Block Making machine
4.Power:22.9kw
5,Pallet:850*560*20mm
Concrete Brick making machine,brick making machine,concrete brick machine,concrete block making machine,
hollow brick machine,hollow brick making machine, Cement block making machine

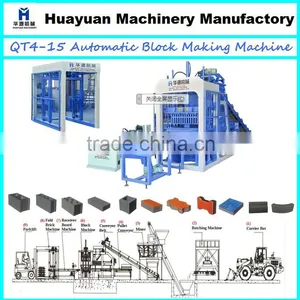

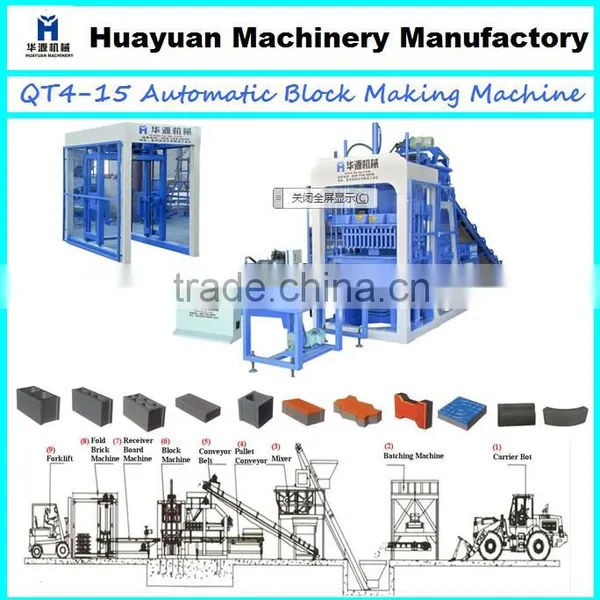

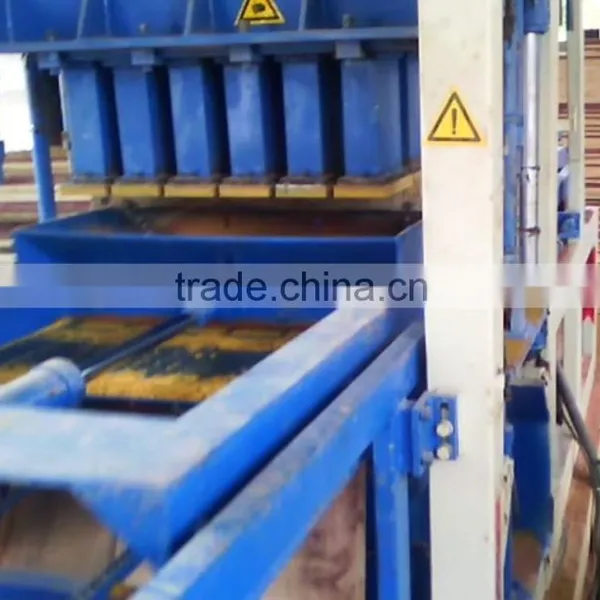

QT4-15 Cement block making machine with Easy Operation and High Capacity
1, Main technical parameters for QT4-15 cement block making machine :
Cycle Time | 15-20(s) | Total Power | 22.9(kw) |
Vibration Type | hydraulic vibration | Motor Frequency | 50HZ |
Machine Dimension | 8200×4350×2700(mm) | Pallet Size | 850×560×20(mm) |
Vibration Force | 58KN | Gross Weight | 6200(kg) |
2,Brick Sizes and capacity of QT4-15 cement block making machine:
Brick | Sizes | Output/ mould | Output/Shift(8hours) | picture |
Blocks | 390x190x190mm | 4 | 5,760-7,680 | |
Porous bricks | 240x115x90mm | 12 | 17,280-23,040 | |
Interlocking block | 200x100x60mm | 15 | 21,600-28,800 | |
Solid bricks | 240x115x53mm | 24 | 34,560-46,080 |
QT4-15 automatic cement block making machine can prodcut all kinds of bricks size.

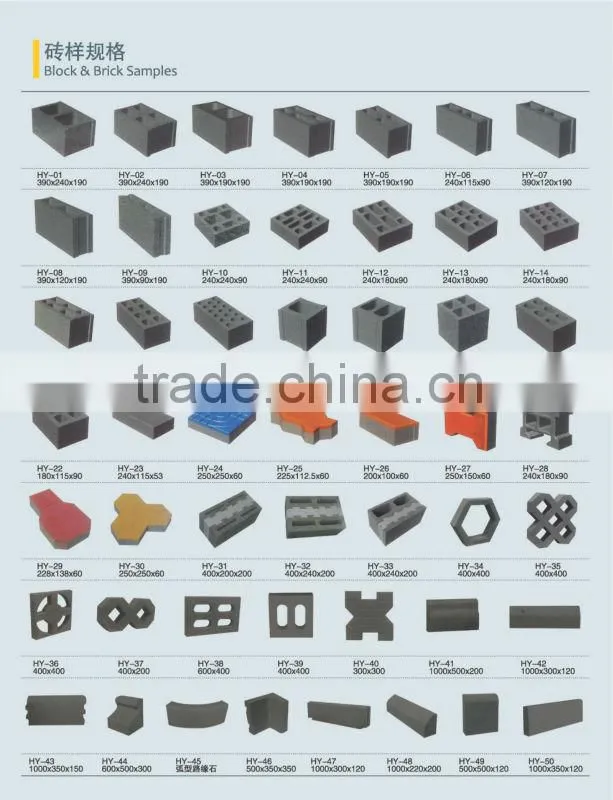

Bricks & Block Sample:
3,Our cement block making machine is highly Technology:

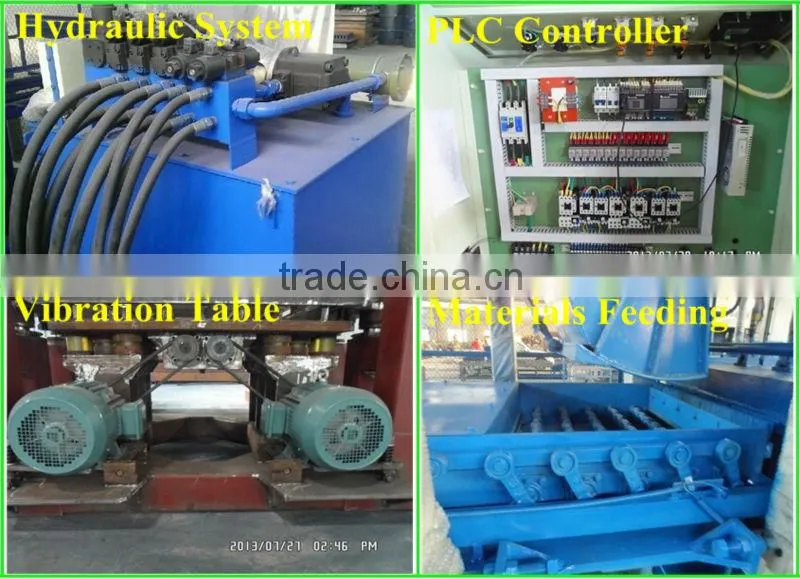

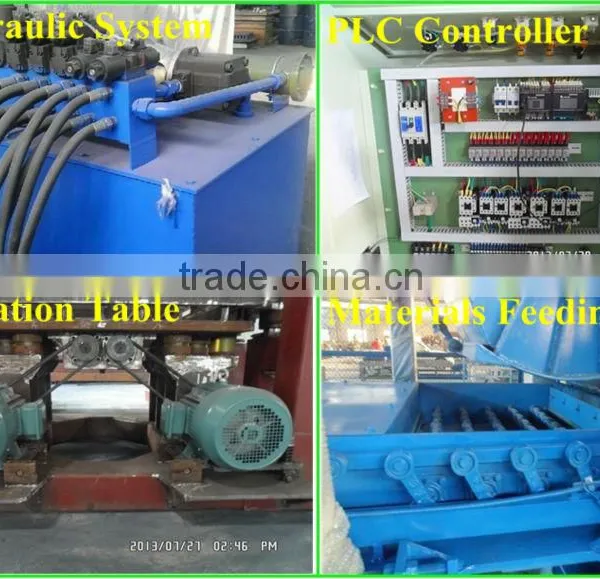

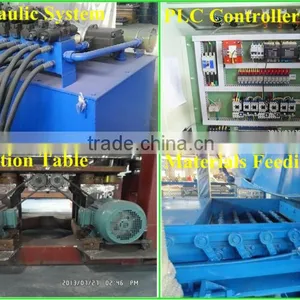

1. Cement block making machine is consists of mechanic, electricity and hydraulic in one machine, and it runs automatically .
in circulation each procedure is interlocked, and the pressure is automatically assigned.
2. Cement block making machine all Useing intellent PLC control system, PCL touch screen , easy to change mechanical action
according to different raw materials.
3. Fault self-diagnosis, comport for remote control guarantees technical support and maintenance.
Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .
multiple uses, it can produce all type of standard building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
4,QT4-15 cement block making machine`s site requirements :
1. QT4-15 cement block making machine Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : five to eight.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight:
(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. Raw material consumption per day:100-130T
6. water consumption per day:3%-5% of raw material Weight.

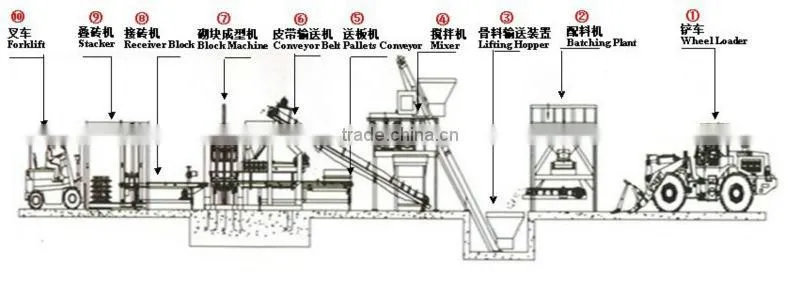

5,The Main Equipments of QT4-15 cement block making machine:

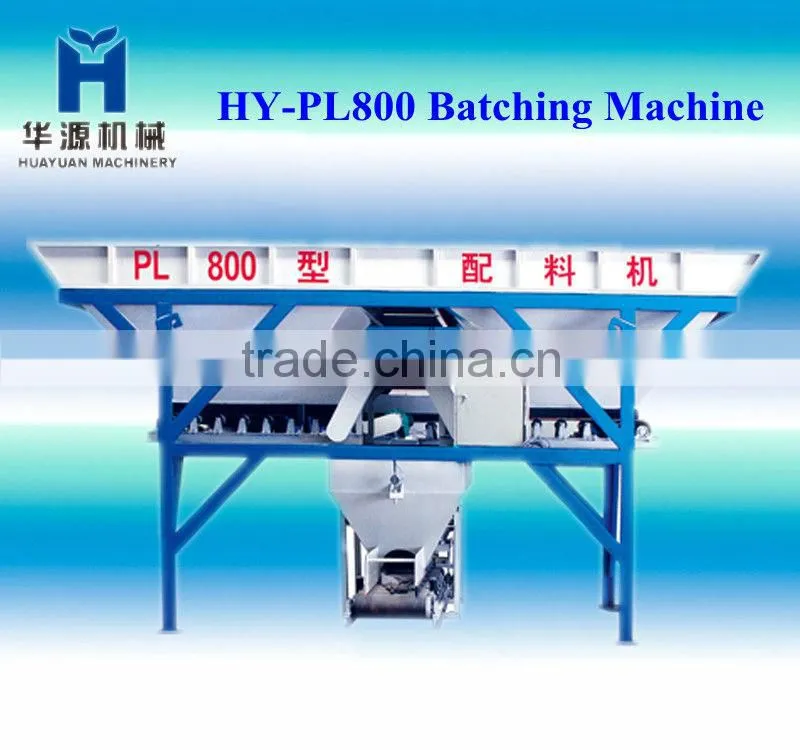

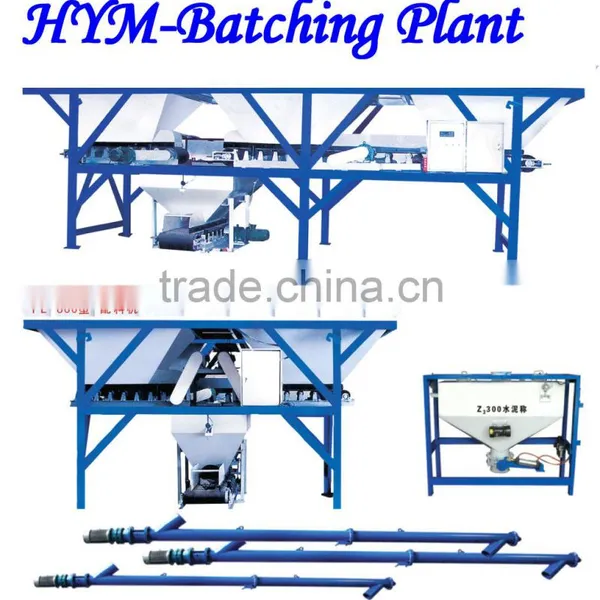

Batching plant PL800 with two bins | ||||
CBM of Weighing Bin | 0.8 m3 | |||
CBM of Aggregate | 2*2m3 | |||
Productivity | 48m3/h | |||
Maximum weighing | 1,500kg | |||
Quantity of Aggregates | 3 | |||
Loading Height | 2,300 | |||
Weighing System | Electronic Weighing System | |||
Power | 6.6kw | |||
Total Weight | 2,350kg | |||
Machine Size(L*W*H) | 5470*1820*2810 mm |

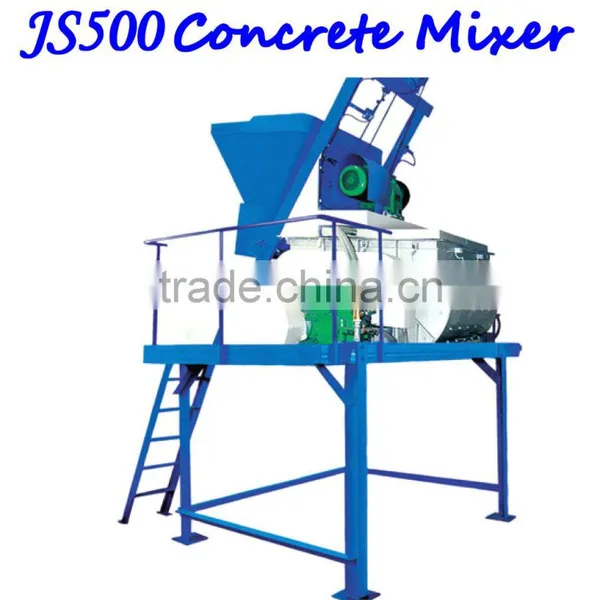

Specification of Concrete mixer JS500 | ||||
Type | JS500 | |||
Capacity of charging | 800 | |||
Capacity of discharge | 500 | |||
Productivity(m3/h) | ≥25 | |||
Maximum diameter of / Cobble | 80 | |||
Bone material (mm) /Crushed stones | 60 | |||
Mixing fan / Turning speed(r/min) | 35 | |||
Quantity | 2*7 | |||
Mixing engine / Type | Y180M-4 | |||
Power(kw) | 18.5 | |||
Mixing engine /Type | YEZ132S-4-B5 | |||
Power(kw) | 5.5 | |||
Pump / Type | 50DWB20-8A | |||
Power(kw) | 0.75 | |||
Hosting speed of material holder | 18 | |||
Outside size(mm) / Transport state | 3050*2300*2680mm | |||
/ Working state | 4461*3050*5225mm | |||
Weight (kg) | 4000 |
QT4-15 cement block making machine: | |||
Cycle Times | 15-20s | ||
Total Power | 22.9(kw) | ||
Motor Frequency | 50Hz | ||
Pallet Size | 850*560*20mm | ||
Rated Pressure | 21.5 (mpa) | ||
Vibration Type | Hydraulic Vibration | ||
Vibtation Force | 58(kn) | ||
Gross Weight | 6200kg | ||
Machine Size | 8200*4350*2000mm | ||
Stacking Machine | 2.25 (kw) |

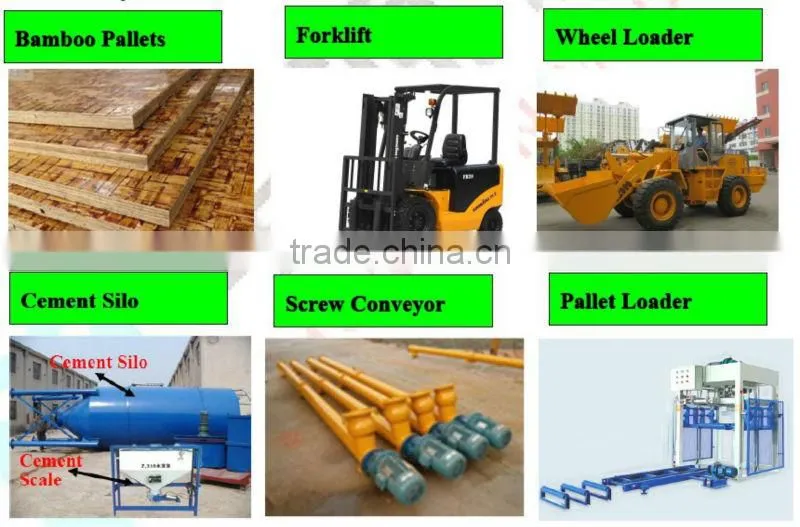

6,The Other Matching Machines of QT4-15 cement block making machine:

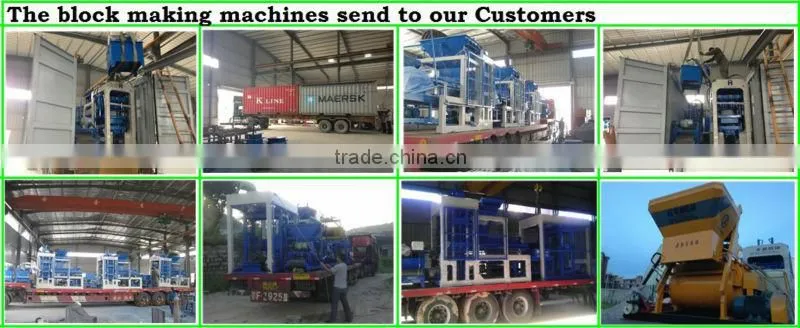

7,Our cement block making machine`s Customers From All over the World:
8, Pls don`t Feel hesitate to Contact Me by Following For more informations of QT4-15 cement block making machine:
