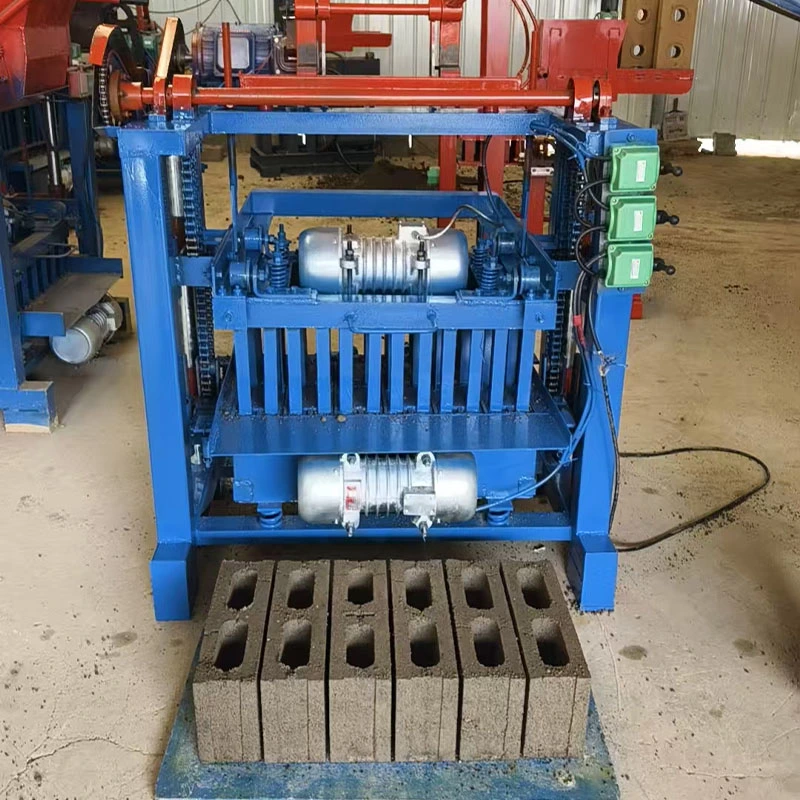

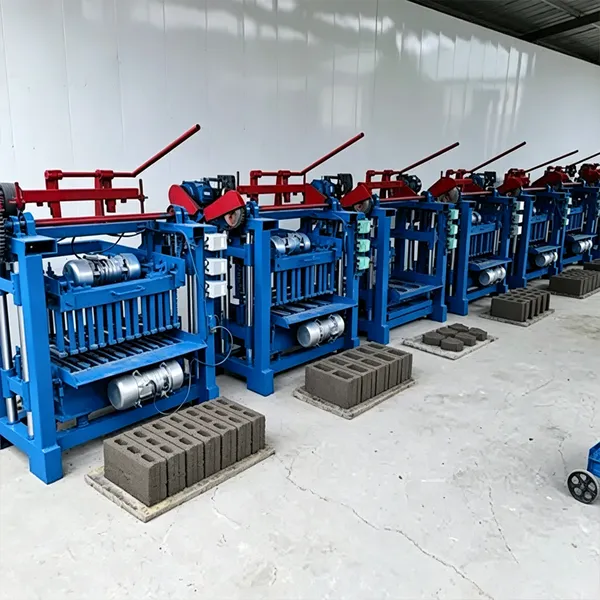

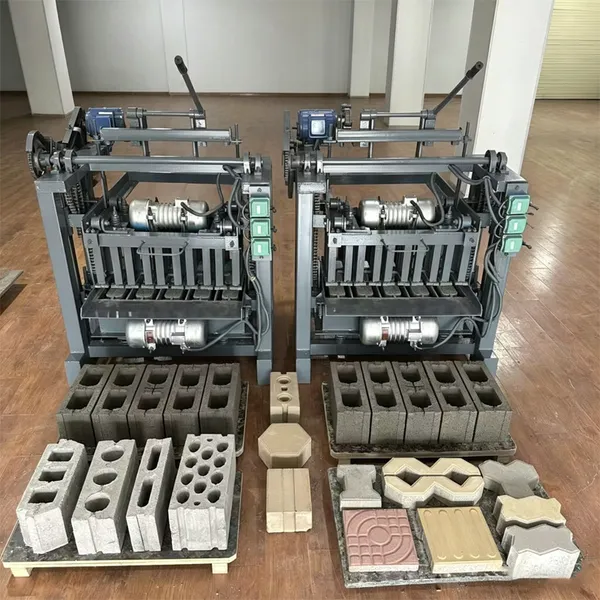

4-35A Semi-Automatic Brick Making Machine
Product Overview
The 4-35A semi-automatic brick making machine is an economical no-burn brick equipment designed for small and medium-sized brick factories, construction sites and start-up customers. With its compact structure, easy operation and multi-purpose features, it has become a well-received entry-level brick making solution in the market. The equipment can use various solid waste raw materials such as fly ash, slag, sand and gravel, construction waste to produce concrete blocks that meet standards, combining environmental protection and economy.
✨ Core Performance Features
High-density brick production from various raw materials: fly ash, slag, sand, stone dust, construction waste, etc.

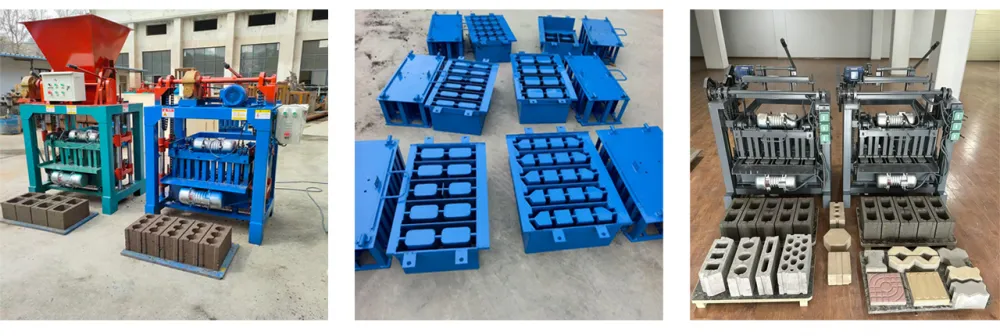

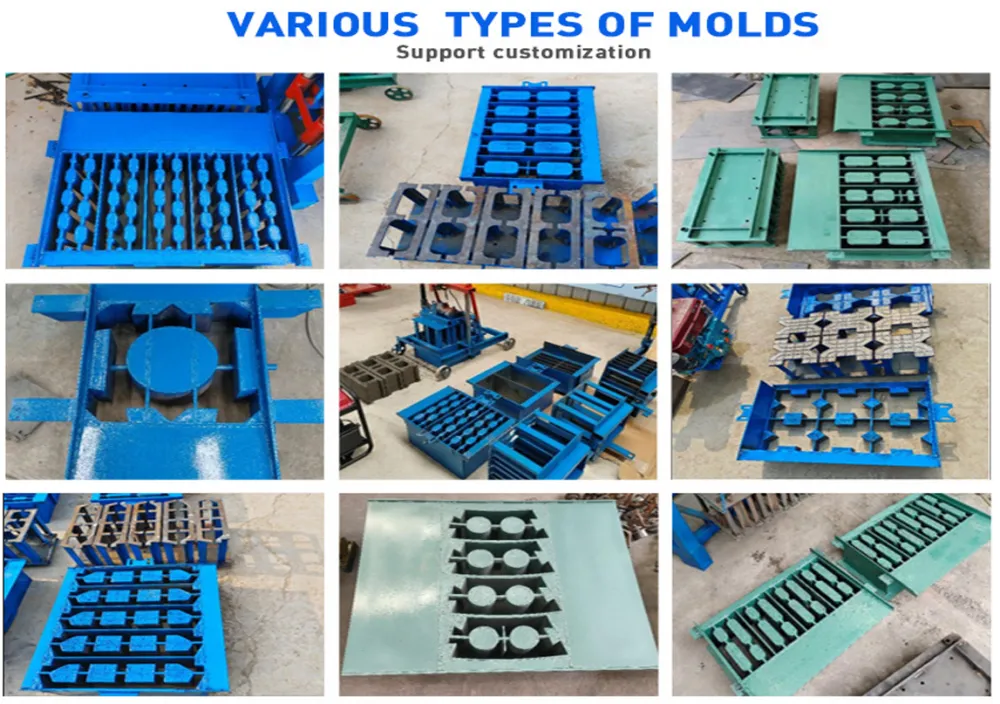

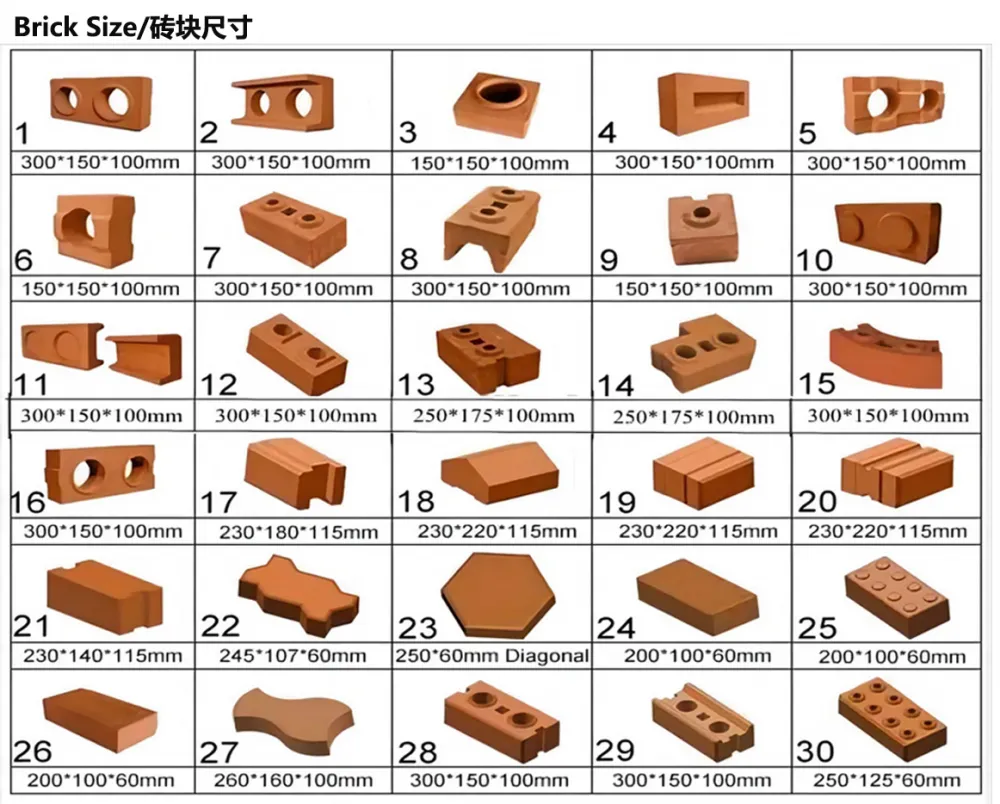

2. Multi-purpose design: make standard bricks, hollow bricks, curbstones, grass bricks by changing molds.
3. Customizable machine and molds to meet your specific needs.
4. Simple operation, no specialized technicians required. Supports hydraulic, vibration, pneumatic pressing methods.
5. Precise mechanical structure + electronic control system for accurate positioning and stable pressing. 6. Durable high-strength steel construction with special welding technology, long service life.

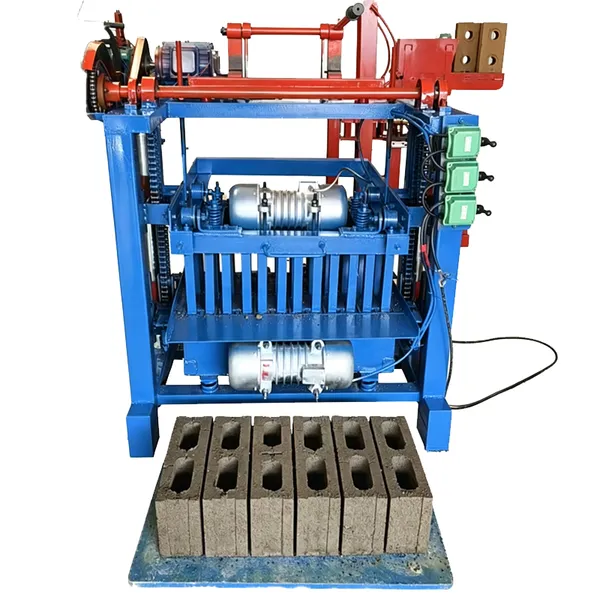

Key Structure and Working Principle
|
1.Reinforced Motor + Dual Vibration Motors: The coordinated upper and lower vibration system quickly compacts the concrete, ensuring the density and strength of the bricks. 2.Manual Demolding Lever/Reversing Switch: Semi-automatic design; material feeding and pressing are completed by the machine, while demolding and plate feeding require manual assistance, reducing equipment costs and maintenance difficulty. 3.Removable Upper/Lower Mold: Different molds can be used to produce bricks of different specifications, offering strong adaptability. |
Product Parameters
| Item | Details |
| Overall Dimensions | 1230×1300×1450 mm |
| Weight | 550 kg |
| Power/Voltage | 6.3 kW (380V, customizable) |
| Forming Cycle | 35 seconds per cycle |
| Production Capacity | 300-400 hollow bricks per 8 hours (depending on specifications) |
| Operators | 1-2 persons |
| Warranty | 1-year full machine warranty, lifetime remote technical support |
(We also offer multiple models to choose from and support customization according to your requirements)
🎯 Application Scenarios
·Small and medium-sized brick factories in towns, individual entrepreneurs
·On-site brick making at construction sites
·Solid waste treatment and environmental-friendly building materials production
·Projects with limited budget and pursuing high cost performance

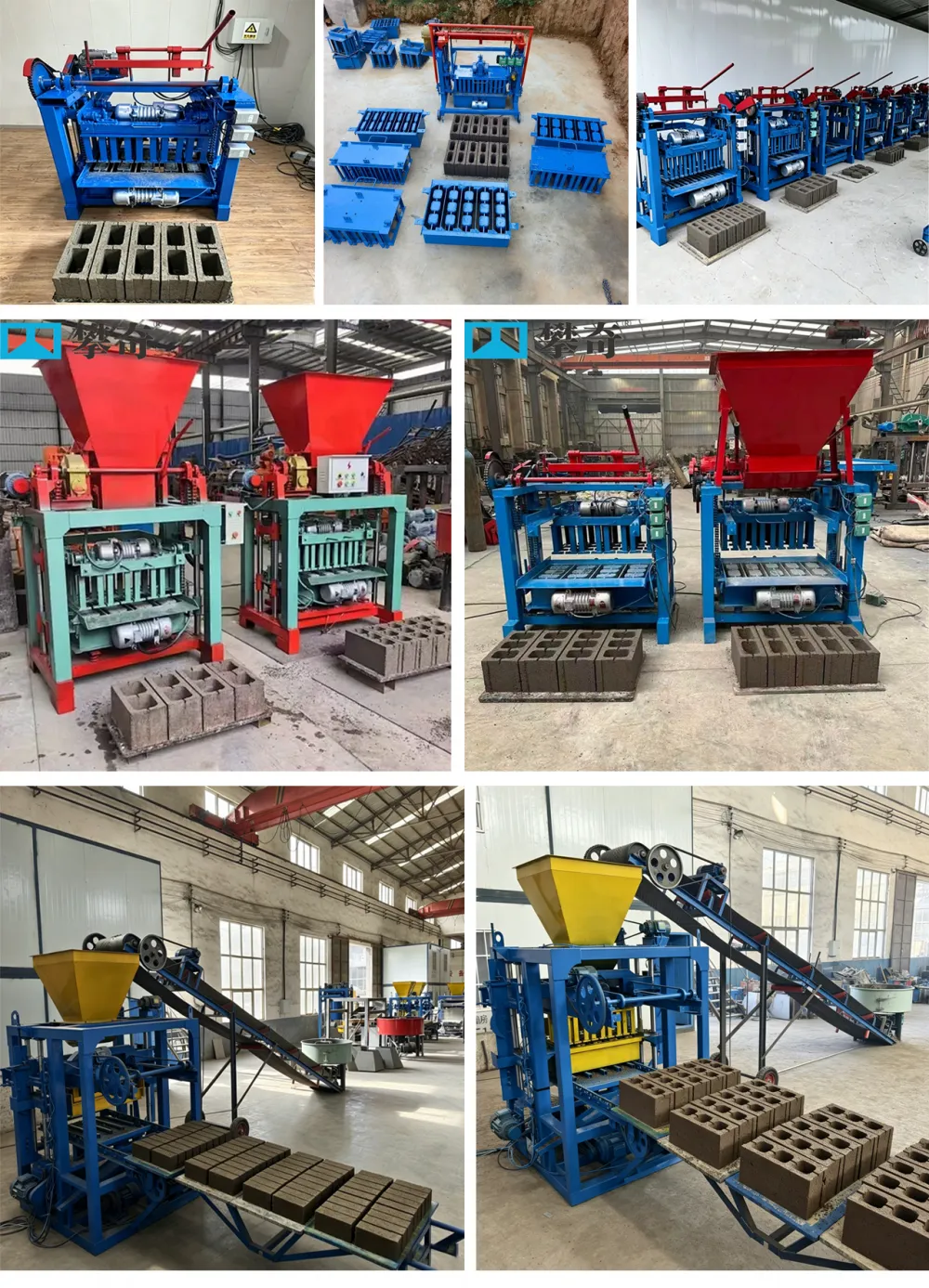

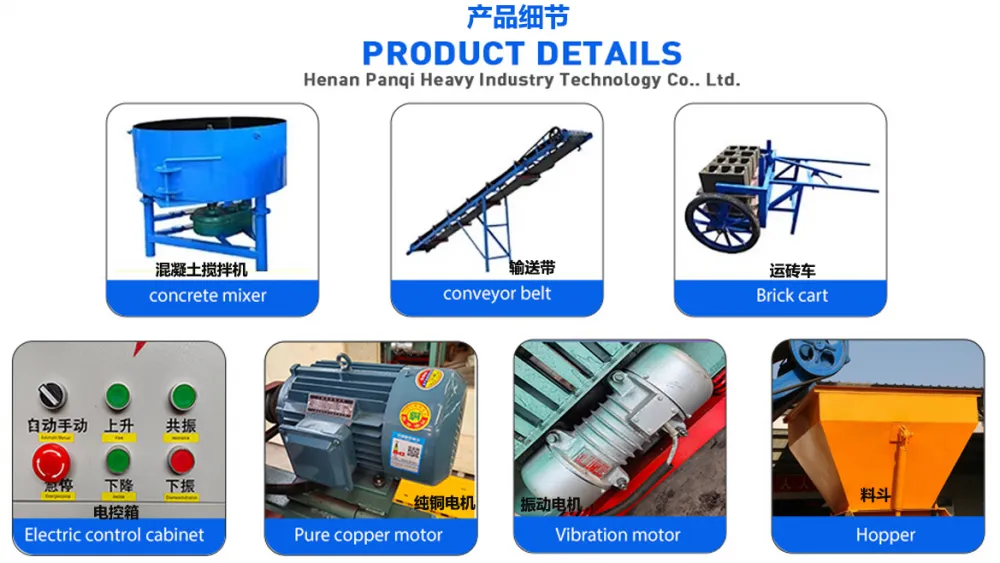

Product Details Core Components
1. Concrete Mixer
Used to mix cement, sand, aggregate, fly ash and other raw materials into a uniform concrete mixture, serving as the essential pre-processing equipment for brick making.
2. Conveyor Belt
Automatically transports the mixed concrete to the hopper of the brick making machine, enabling continuous production and greatly reducing manual labor for feeding.
3. Brick Cart
Designed for transporting finished bricks and pallets, making it easy to move and stack the produced blocks.
4. Electric Control Cabinet
The control center of the entire line, featuring auto/manual mode switch, up/down buttons, and vibration controls. It allows simple and safe operation of all machine actions.
5. Pure Copper Motor
The power core of the equipment. Made with pure copper winding, it delivers strong power, high heat resistance, and long service life, ensuring stable and reliable operation.
6. Vibration Motor
Provides high-frequency vibration force to the brick machine, which compacts the concrete quickly in the mold to guarantee high density and strength of the finished bricks.

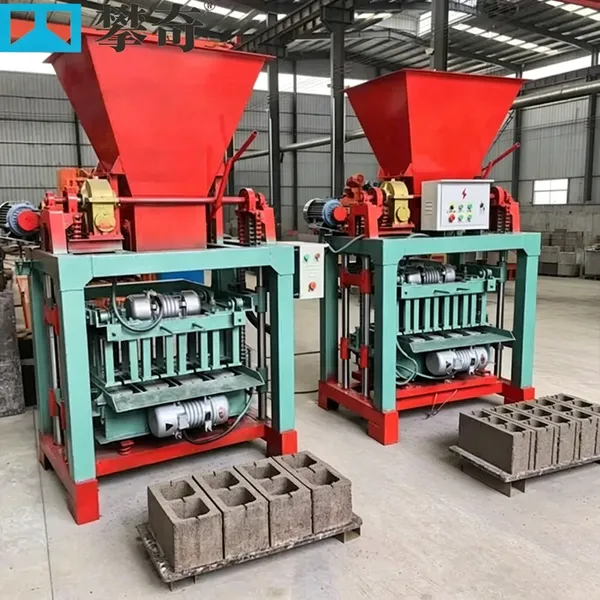

7. Hopper
Receives and stores the concrete material from the conveyor belt, then feeds it evenly into the mold cavity for consistent forming.

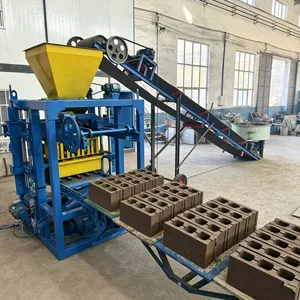

Full Production Line Process
Concrete Mixer → Conveyor Belt → Hopper → Brick Making Machine (Powered by Pure Copper Motor & Vibration Motor, Controlled by Electric Control Cabinet) → Brick Cart for Finished Product Transfer

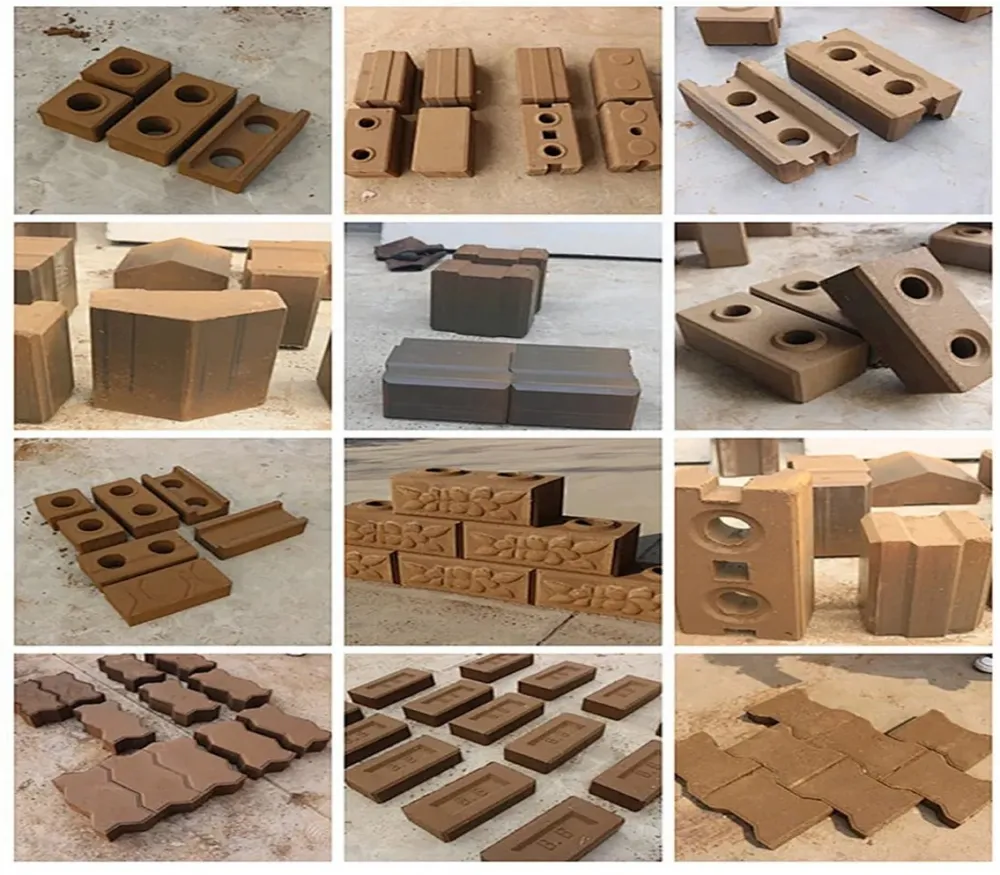

Raw materials for brick making & Effects
Henan Panqi Heavy Industry Technology Co., Ltd. is a professional manufacturer of automatic clay brick machines, established in 2019. With a 10,000-30,000 m² factory and a skilled team, we deliver reliable, high-efficiency brick-making solutions for global clients.
Our automatic clay brick machine features PLC control for precision, producing high-quality red bricks and concrete blocks. It significantly reduces labor costs and boosts output efficiency, backed by our US$5-10 million annual export experience. Built for durability and seamless operation, it handles clay and concrete materials with consistent performance.
FAQ
Q: What types of bricks can this machine produce?
A: It is designed to produce red bricks from clay and various concrete blocks, offering versatility for different construction applications.Q: How automatic is the operation?
A: The machine features fully automated processes, including material feeding, molding, and cutting, requiring minimal human oversight for continuous production.Q: What certifications does the machine have?
A: Other certifications are available; specific details can be provided upon request based on your regional requirements.Q: What power sources are supported?
A: Options include electric or diesel power sources, customizable to match local infrastructure and energy availability.Q: How long is the delivery time after ordering?
A: Delivery typically takes 30-60 days, depending on the model and destination, with shipments from ports like Shanghai or Qingdao.Q: What maintenance is required for optimal performance?
A: Regular maintenance includes lubrication of moving parts and periodic checks; a detailed manual is provided, and support is available for troubleshooting.Q: Can the machine handle different brick sizes?
A: Yes, it is customizable to produce various sizes and shapes of bricks and blocks, with adjustable settings via the PLC control system.Q: Is training provided for operators?
A: Comprehensive training materials and optional on-site support are available to ensure smooth operation and maximize productivity.
