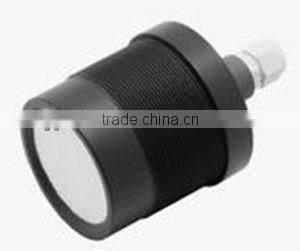

Help Center40KHz Ultrasonic Transducer for Long Distance MeasurementUltrasonic Distance MeterUltrasonic RangerfinderUltrasonic Transducer
Related Products
-
Ultrasonic Flow Meter Price125KHz Ultrasonic TransducerUltrasonic Transducer in Air for Flow MeterUltrasonic Air Flow SensorUS$ 16.26 - 23.58MOQ: 100 Pieces -
1.0MHz Ultrasonic Flow Sensor for Water Flow MeterSensorsHigh Frequency 1MHz Water Flow MeterUltrasonic Water Flow Meter SensorUS$ 21.53 - 27.63MOQ: 10 Pieces
-
High Quality Ultrasonic SensorPiezo Ultrasonic Transducer30KHz Long Range(0.6m - 20m) Ultrasonic Sensor for Distance MeasurementUS$ 110.75 - 116.51MOQ: 10 Pieces
-
1.20MHz Small Ultrasonic Transducer for Flow Rate MeasurementSmall Ultrasonic Flow Copper TransducerSensorsUltrasonic TransducerUS$ 29.33 - 40.46MOQ: 10 Pieces
-
22KHz Piezo Ultrasonic Transducer for Distance MeasurementSensorsLong Range(0.6-30m)Ultrasonic Sensor for Distance MeasurementUS$ 234.63 - 276.88MOQ: 5 Pieces
Specifications

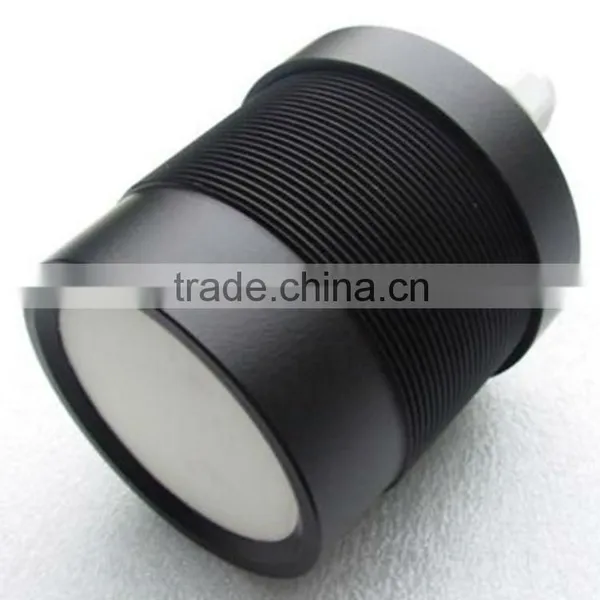

This ultrasonic transducer with 40KHZ,application in position location,approach measurement,traffic measurement and etc.This ultrasonic transducer with 40KHZ,application in position location,approach measurement,traffic measurement,avoiding obstacles and etc.
Application:
1) Position Location ; 2) Approach measurement;
3) Traffic Measurement; 4) Avoiding Obstacles;
Technical parameters:
Center resonant frequency (kHz) |
40KHZ±4% |
Bandwidth |
3kHz |
|
Sensitive 0 dB=200 Vp-p, Cycle: 50, Distance: 1.5 m; |
-66dB min |
Detection distance |
0.35 m—10 m |
Blind zone |
<0.35 m |
Launch angle beam (-3dB full angle) |
14±2° |
Electrostatic capacitance |
3000PF±20% |
Minimum parallel impedance |
180Ω±30% |
Maximum working voltage (Pulse wave - 2% duty cycle) |
<1800V |
Operating temperature |
-20~70°C |
Storage temperature |
-40~85°C |
Protection class |
IP65 |
Housing material |
ABS |
Size (diameter * height, mm) |
Φ68 X 95 |
Cable length |
Could be customized(default as 2 m) |
Weight |
380g |
Above tests were carried out in 25 ° C
