1.20MHz Small Ultrasonic Transducer for Flow Rate MeasurementSmall Ultrasonic Flow Copper TransducerSensorsUltrasonic Transducer
US$ 29.33 - 40.46
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DYP
Model Number:
DYP-UL005
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
22KHz Piezo Ultrasonic Transducer for Distance MeasurementSensorsLong Range(0.6-30m)Ultrasonic Sensor for Distance MeasurementUS$ 234.63 - 276.88MOQ: 5 Pieces -
SensorsUltrasonic Bobble SensorUltrasonic Air-in-line Detector2.5MHz Ultrasonic TransducerUltrasonic Air Bubble Detection SensorUS$ 11.43 - 16.29MOQ: 10 Pieces
-
Air Bubble DetectorUltrasonic Bubble DetectorUltrasonic Gas Bubble DetectorSensors2.5MHz Ultrasonic Transducer for Bubble DetectUS$ 9.05 - 16.29MOQ: 100 Pieces
-
40&200KHz Dual Frequency Depth Measurement Ultrasonic TransducerSensorDual Frequency Submersible Ultrasonic Transducer for DepthUS$ 90.46 - 145.64MOQ: 200 Pieces
-
40/200KHz Ultrasonic Depth for Water MeasurementDual Frequency Waterproof Ultrasonic Transducerultrasonic Depth MeasurementUS$ 139.85 - 145.64MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
DYP
Model Number
DYP-UL005
Usage
Other, Liquid Flow Measuring
Theory
Ultrasonic Sensor
Output
Digital Sensor
Specifications
This small(1.20MHz) ultrasonic transducer is widely used to measure all kinds of liquid flow rate,such as water, gas, fuel etc.This small(1.20MHz) ultrasonic transducer is widely used to measure all kinds of liquid flow rate,such as water, gas, fuel etc.
Technical parameters:
Central resonance frequency (kHz) |
1.2MHZ±5% |
Bandwidth |
±0.1MHz |
|
Sensitive 0 dB=3 Vp-p, Cycle: 8; Distance: 4 cm (self-transmit self-received); |
-34dB min |
Blind zone |
<2cm |
Launch angle beam (-3dB full angle) |
8° |
Electrostatic capacitance |
1000PF±20% |
Minimum parallel impedance |
130Ω±30% |
|
Maximum working voltage (Pulse wave - 2% duty cycle) |
<150V |
Operating temperature |
0~95°C |
Protection class |
IP68 |
Housing material |
Brass |
Above tests were carried out in 25 ° C .

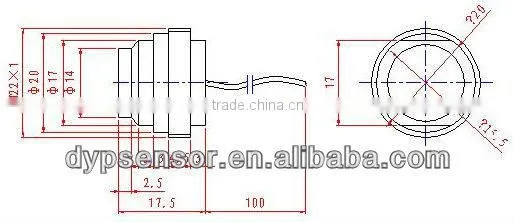

Dimension:
