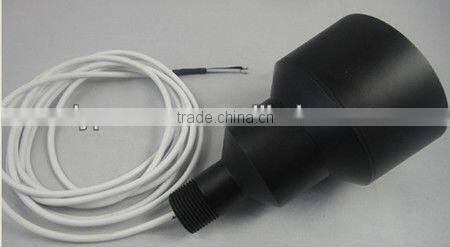

Help Center22KHz Piezo Ultrasonic Transducer for Distance MeasurementSensorsLong Range(0.6-30m)Ultrasonic Sensor for Distance Measurement
Related Products
-
SensorsUltrasonic Bobble SensorUltrasonic Air-in-line Detector2.5MHz Ultrasonic TransducerUltrasonic Air Bubble Detection SensorUS$ 11.43 - 16.29MOQ: 10 Pieces -
Air Bubble DetectorUltrasonic Bubble DetectorUltrasonic Gas Bubble DetectorSensors2.5MHz Ultrasonic Transducer for Bubble DetectUS$ 9.05 - 16.29MOQ: 100 Pieces
-
40&200KHz Dual Frequency Depth Measurement Ultrasonic TransducerSensorDual Frequency Submersible Ultrasonic Transducer for DepthUS$ 90.46 - 145.64MOQ: 200 Pieces
-
40/200KHz Ultrasonic Depth for Water MeasurementDual Frequency Waterproof Ultrasonic Transducerultrasonic Depth MeasurementUS$ 139.85 - 145.64MOQ: 10 Pieces
-
High Frequency 200KHz Active Ultrasonic Transducer for Fish Finder200KHz Ultrasonic Sensor for Distance Measurement in WaterUS$ 22.2 - 29.13MOQ: 100 Pieces
Specifications
This ultrasonic transducer was widely used in locating,flow measurement,approach measurement, traffic measurement,etc.This ultrasonic transducer with 22KHZ±4% frequency, and was widely used in locating,flow measurement,approach measurement, traffic measurement,etc.
Application:
1) Position Location;
2) Approach measurement;
3) Traffic Measurement;
4) Avoiding Obstacles;
Technical parameters:
Center resonant frequency (kHz) |
22KHZ±4% |
Bandwidth |
2kHz |
|
Sensitive 0 dB=20 Vp-p, Cycle: 20, Distance: 1m; |
-60dB min |
Detection distance |
0.6 m —30m |
Blind zone |
<0.6 m |
Launch angle beam (-3dB full angle) |
14±2°° |
Electrostatic capacitance |
5000PF±20% |
Minimum parallel impedance |
300Ω±30% |
Maximum working voltage (Pulse wave - 2% duty cycle) |
<4000V |
Operating temperature |
-20~70°C |
Protection class |
IP68 |
Housing material |
PVC+F4 |
Size (diameter * height, mm) |
φ110 X 190 |
Cable length |
Could be customized(default as 3.5 m) |
Weight |
1.6kg |
Above tests were carried out in 25 ° C .
Dimension:
