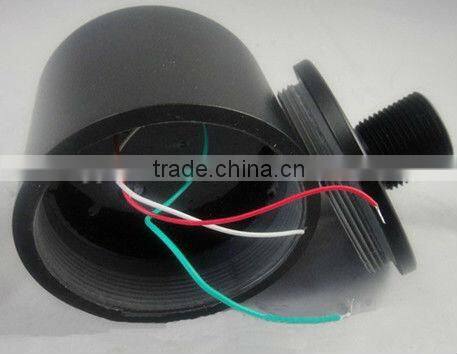

High Quality Ultrasonic SensorPiezo Ultrasonic Transducer30KHz Long Range(0.6m - 20m) Ultrasonic Sensor for Distance Measurement
US$ 110.75 - 116.51
/ Piece
10 Pieces(Min. Order)
- shenzhen
- Credit Card
You May Like
-
1.20MHz Small Ultrasonic Transducer for Flow Rate MeasurementSmall Ultrasonic Flow Copper TransducerSensorsUltrasonic Transducer
-
22KHz Piezo Ultrasonic Transducer for Distance MeasurementSensorsLong Range(0.6-30m)Ultrasonic Sensor for Distance Measurement
-
SensorsUltrasonic Bobble SensorUltrasonic Air-in-line Detector2.5MHz Ultrasonic TransducerUltrasonic Air Bubble Detection Sensor
-
Air Bubble DetectorUltrasonic Bubble DetectorUltrasonic Gas Bubble DetectorSensors2.5MHz Ultrasonic Transducer for Bubble Detect
-
40&200KHz Dual Frequency Depth Measurement Ultrasonic TransducerSensorDual Frequency Submersible Ultrasonic Transducer for Depth
-
40/200KHz Ultrasonic Depth for Water MeasurementDual Frequency Waterproof Ultrasonic Transducerultrasonic depth measurement
Product Details
| Place of Origin | Guangdong, China | Brand Name | DYP | |
| Model Number | DYP-UL010 | Usage | Other, Distance Measurement | |
| Theory | Ultrasonic Sensor | Output | Digital Sensor |
Product Description
Specifications
This ultrasonic transducer is used for distance measurement in air,and with a long detection range,which is 0.60 m - 20 m.This ultrasonic transducer is used for distance measurement in air,and with a long detection range,which is 0.60 m - 20 m. It is widely used in position location,approach measurement , traffic measurement, avoiding obstacles,etc.
Electrical parameters:
Center resonant frequency (kHz) | 30KHz ± 4.0Khz |
Bandwidth | 3kHz |
Detection distance | 0.6~20m |
Blind Zone | <0.6m |
Launch angle beam (-6dB full angle) | 14 ± 2 ° |
Sensitive | -65dB min |
Electrostatic capacitance | 7000PF ± 20% |
Minimum parallel impedance | 200 Ω± 30% |
Maximum working voltage (Pulse - 2% duty cycle) | <2000V |
Operating temperature | -20 ~70 ° C |
Storage temperature | -40 ~85 ° C |
Protection level | IP65 |
Size (diameter * height, mm) | Φ90x103 |
Installation | Fixed with screw |
Case Material | ABS |
Cable length | 3 M (could be customized) |
Weight | 1.5kg |
Above tests were carried out in 25 ° C

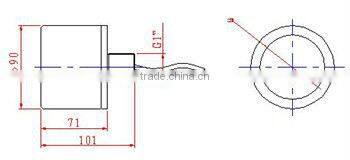

Dimensions:
