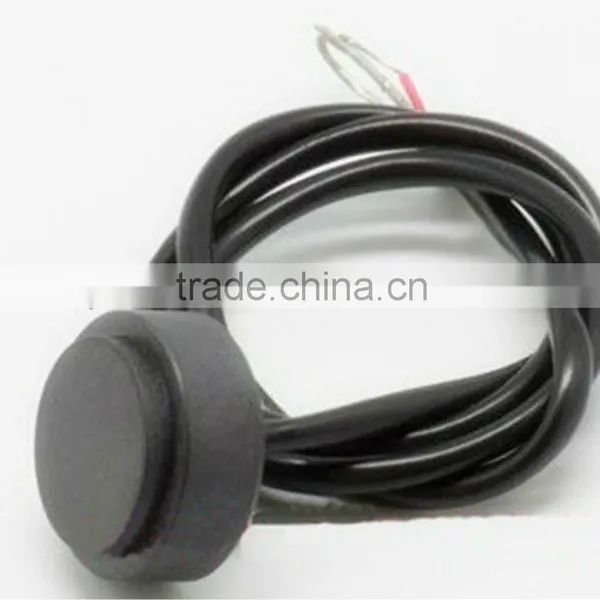

1.0MHz Ultrasonic Flow Sensor for Water Flow MeterSensorsHigh Frequency 1MHz Water Flow MeterUltrasonic Water Flow Meter Sensor
US$ 21.53 - 27.63
/ Piece
10 Pieces(Min. Order)
- shenzhen
- Credit Card
You May Like
-
High Quality Ultrasonic SensorPiezo Ultrasonic Transducer30KHz Long Range(0.6m - 20m) Ultrasonic Sensor for Distance Measurement
-
1.20MHz Small Ultrasonic Transducer for Flow Rate MeasurementSmall Ultrasonic Flow Copper TransducerSensorsUltrasonic Transducer
-
22KHz Piezo Ultrasonic Transducer for Distance MeasurementSensorsLong Range(0.6-30m)Ultrasonic Sensor for Distance Measurement
-
SensorsUltrasonic Bobble SensorUltrasonic Air-in-line Detector2.5MHz Ultrasonic TransducerUltrasonic Air Bubble Detection Sensor
-
Air Bubble DetectorUltrasonic Bubble DetectorUltrasonic Gas Bubble DetectorSensors2.5MHz Ultrasonic Transducer for Bubble Detect
-
40&200KHz Dual Frequency Depth Measurement Ultrasonic TransducerSensorDual Frequency Submersible Ultrasonic Transducer for Depth
Product Details
| Place of Origin | Guangdong, China | Brand Name | DYP | |
| Model Number | DYP-UL006 | Usage | Other, Flow meter sensor | |
| Theory | Ultrasonic Sensor | Output | Digital Sensor |
Product Description
Specifications
It is widely used to measure all kinds of liquid flow rate. Such as water, gas, fuel etc.DYP-UL006 ultrasonic water flow sensor is waterpoof and widely used to measure all kinds of liquid flow rate,such as water, gas, fuel etc.
Electrical Parametes:
Centre working frequency (MHz) | 1.0MHz±4% |
Bandwidth | ±0.2MHz |
overall sensitivity 0 dB=3 Vp-p;cycle:8; distance:8cm(self transmitter and self receive) | -26dB min |
Measure Distance | 0.10-5m |
Blind zone | <0.10m |
Beam angle(-3dBfull angle) | 6° |
electrostatic capacity | 1200PF±20% |
Minimal parallel impedance | 110Ω±30% |
Maxim operating voltage (Pulse Duty cycle ratio 2%) | <300V |
Operating temperature | 0~100°C |
Maxim pressure | 1.6MPa |
Housing Material | PPS |
Protection class | IP68 |
Above tests were carried out in 25 ° C .

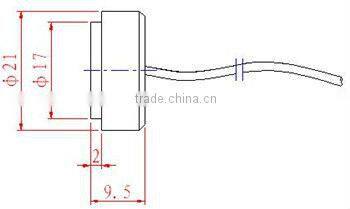

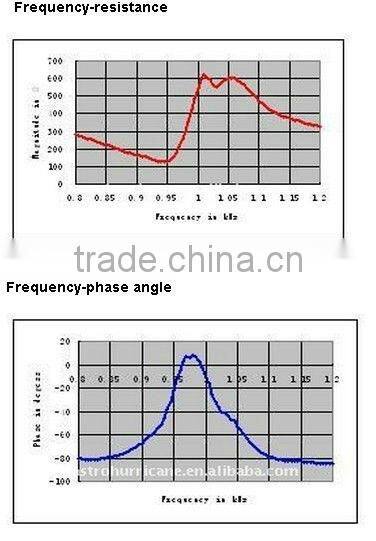

Dimensions and Test Diagram :
