Home > Electrical & Electronics > Sensor > Pressure Sensor > 75KHz Ultrasonic TransducerUltrasonic Water MeterUnderwater Ultrasonic TransducerUltrasonic ProbeSensorsUltrasonic Level Sensor
75KHz Ultrasonic TransducerUltrasonic Water MeterUnderwater Ultrasonic TransducerUltrasonic ProbeSensorsUltrasonic Level Sensor
US$ 25.21 - 32.52
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DYP
Model Number:
DYP-UL013
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
40KHz Ultrasonic Transducer for Long Distance MeasurementUltrasonic Distance MeterUltrasonic RangerfinderUltrasonic TransducerUS$ 73.98 - 93.53MOQ: 100 Pieces -
Ultrasonic Flow Meter Price125KHz Ultrasonic TransducerUltrasonic Transducer in Air for Flow MeterUltrasonic Air Flow SensorUS$ 16.26 - 23.58MOQ: 100 Pieces
-
1.0MHz Ultrasonic Flow Sensor for Water Flow MeterSensorsHigh Frequency 1MHz Water Flow MeterUltrasonic Water Flow Meter SensorUS$ 21.53 - 27.63MOQ: 10 Pieces
-
High Quality Ultrasonic SensorPiezo Ultrasonic Transducer30KHz Long Range(0.6m - 20m) Ultrasonic Sensor for Distance MeasurementUS$ 110.75 - 116.51MOQ: 10 Pieces
-
1.20MHz Small Ultrasonic Transducer for Flow Rate MeasurementSmall Ultrasonic Flow Copper TransducerSensorsUltrasonic TransducerUS$ 29.33 - 40.46MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
DYP
Model Number
DYP-UL013
Usage
Level Sensor
Theory
Ultrasonic Sensor
Output
Digital Sensor
Specifications
This ultrasonic transducer(with 75khz) is used for level measurement,the detection distance is 0.25 m - 6 m.This ultrasonic transducer(with 75khz) is used for level measurement,the detection distance is 0.25 m - 6 m. Mainly used in level sensor,automatic sensor,etc.
Technical parameters:
Center resonant frequency (kHz) |
75KHZ±4% |
Bandwidth |
6kHz |
|
Sensitive 0 dB=200 Vp-p, Cycle: 50, Distance: 40cm; |
-60dB min |
Detection distance |
0.25 m—6.0 m |
Blind zone |
<0.25 m |
Launch angle beam (-3dB full angle) |
14±2° |
Electrostatic capacitance |
2000PF±20% |
Minimum parallel impedance |
200Ω±30% |
Maximum working voltage (Pulse wave - 2% duty cycle) |
<800V |
Operating temperature |
-20~70°C |
Protection class |
IP65 |
Housing material |
ABS |
Size (diameter * height, mm) |
Φ38 X 38 |
Cable length |
Could be customized(default as 3 m) |
Weight |
40kg |

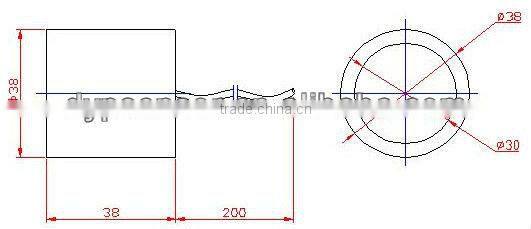

Structure diagram
