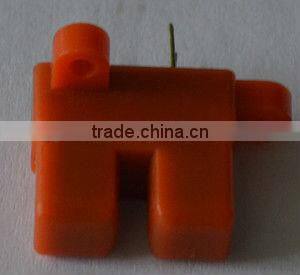

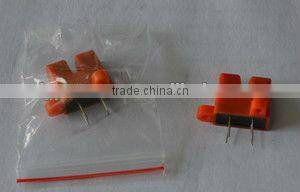

2.5MHz Ultrasonic Transducer for Bubble DetectSmall Ultrasonic Transducer for Bubble DetectUltrasonic Bubble DetectorSensors
US$ 7.25 - 9.31
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DYP
Model Number:
DYP-UL001
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
75KHz Ultrasonic TransducerUltrasonic Water MeterUnderwater Ultrasonic TransducerUltrasonic ProbeSensorsUltrasonic Level SensorUS$ 25.21 - 32.52MOQ: 100 Pieces -
40KHz Ultrasonic Transducer for Long Distance MeasurementUltrasonic Distance MeterUltrasonic RangerfinderUltrasonic TransducerUS$ 73.98 - 93.53MOQ: 100 Pieces
-
Ultrasonic Flow Meter Price125KHz Ultrasonic TransducerUltrasonic Transducer in Air for Flow MeterUltrasonic Air Flow SensorUS$ 16.26 - 23.58MOQ: 100 Pieces
-
1.0MHz Ultrasonic Flow Sensor for Water Flow MeterSensorsHigh Frequency 1MHz Water Flow MeterUltrasonic Water Flow Meter SensorUS$ 21.53 - 27.63MOQ: 10 Pieces
-
High Quality Ultrasonic SensorPiezo Ultrasonic Transducer30KHz Long Range(0.6m - 20m) Ultrasonic Sensor for Distance MeasurementUS$ 110.75 - 116.51MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
DYP
Model Number
DYP-UL001
Usage
Other, for bubble detect
Theory
Ultrasonic Sensor
Output
Digital Sensor
Specifications

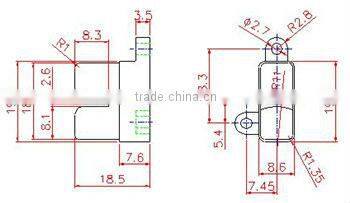

Small ultrasonic transducer for bubble detect with 2.5MHz,detection range is 2.6 mm.Structure diagram:
Technical parameters:
Central resonance frequency (kHz) |
2.5MHZ±10% |
Bandwidth(-6dB) |
10% |
|
Sensitive 0 dB=6 Vp-p, Continuous-wave, Distance: 2.6 mm; |
-12dB min |
Detection range |
2.6 mm |
Electrostatic capacitance |
320PF±20% |
Minimum parallel impedance |
100Ω±30% |
Maximum working voltage (continuous-wave) |
<20V |
Operating temperature |
-20~70°C |
Protection class |
IP65 |
Housing material |
ABS |
Above tests were carried out in 25 ° C .
