TOP Quality Fully Automatic Concrete Block Making Machine With Lower Price Concrete Block Machine (QT6-15)

TOP Quality Fully Automatic Concrete Block Making Machine With Lower Price Concrete Block Machine (QT6-15) photo-1

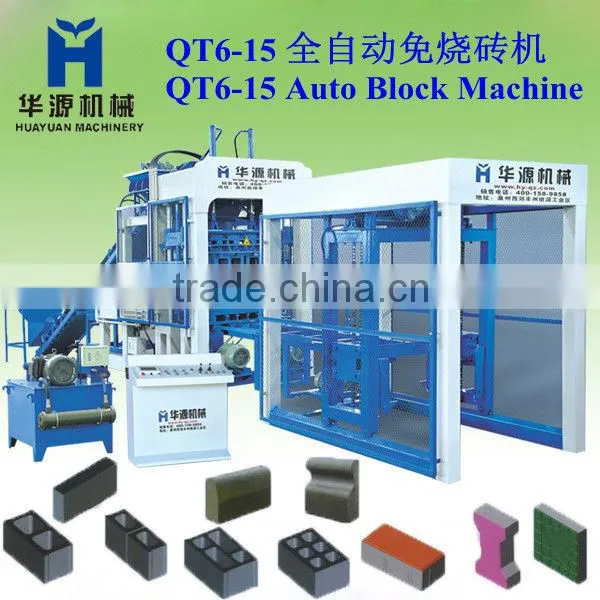

TOP Quality Fully Automatic Concrete Block Making Machine With Lower Price Concrete Block Machine (QT6-15) photo-2
TOP Quality Fully Automatic Concrete Block Making Machine With Lower Price Concrete Block Machine (QT6-15) photo-3
TOP Quality Fully Automatic Concrete Block Making Machine With Lower Price Concrete Block Machine (QT6-15) photo-4
TOP Quality Fully Automatic Concrete Block Making Machine With Lower Price Concrete Block Machine (QT6-15) photo-5
TOP Quality Fully Automatic Concrete Block Making Machine With Lower Price Concrete Block Machine (QT6-15) photo-6
US$ 50,000 - 56,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Cement
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Hollow Block Making Machine
Brick Raw Material Cement
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 20sets block making machine
Place of Origin Fujian, China
Brand Name HYM
Model Number QT6-15 block making machine
Voltage 380V
Power 37.4kw
Dimension(L*W*H) 9450*3300*2700mm
Certification ISO9001:2000
After-sales Service Provided Engineers available to service machinery overseas

 Block Making Machine for QT6-15
1.power: 37.4kw
2.Cycle time:15-20s
ure:31.5Mpa
4.pallet size:850*680*20mm

  TOP Quality fully automatic concrete block making machine with Lower price concrete block machine (QT6-15)

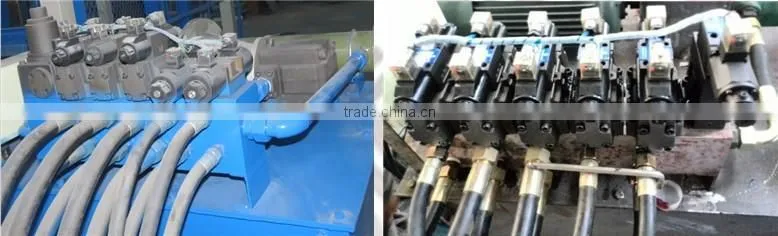

1,Main component of QT6-15 automatic concrete block making machine:

1. Recycle material feeding system: Economize in material for different or same density products.

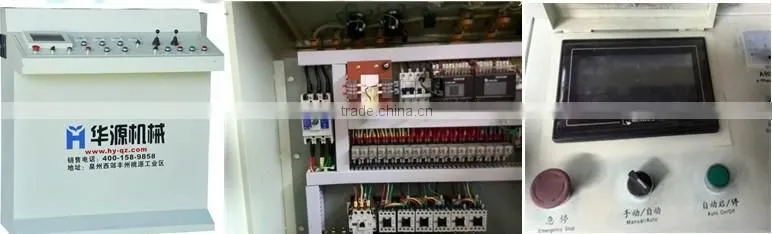

2. PLC (computer automatic control): Hundreds program and process are ready to install, suitable for complex dynamic environment, and easy to handle.
3. Multi-source vibration system: For ensure the accuracy, the vibration frequency is adjustable.
4. Automatic diagnosis system: Unique system, Real-time monitoring to find out the fault, achieved remote- control by using telephone line.

TOP Quality fully automatic concrete block making machine with Lower price concrete block machine (QT6-15)TOP Quality fully automatic concrete block making machine with Lower price concrete block machine (QT6-15)

2.Main technical parameters of QT6-15 automatic concrete block making machine :

Cycle Time

15-20 Sec

Vibration Type

hydraulic vibration

Total Power

37.4kw

Vibration

68(KN)

Vibration Frequency

3800-4500(times/sub)

Gross Weight

7500(kg)

Pallet Size

850×680×20(mm)

Machine Size

9450×3300×2700mm

Rated Pressure

31.5(mpa)

Stacking Machine Power

2.25kw

3.QT6-15 block making machine Capacity :

Brick

Sizes

Output/ mould

Output/Shift(8hours)



Blocks

390x190x190mm

6

8,640-11520







Porous bricks

240x115x90mm

15

21,600-28,800



Interlocking block

200x100x60mm

21

25,200-30,240



Solid bricks

240x115x53mm

30

47,200-63,600

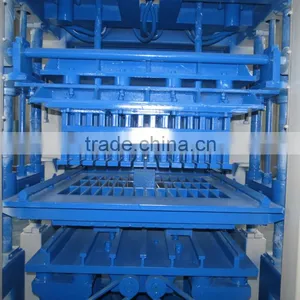

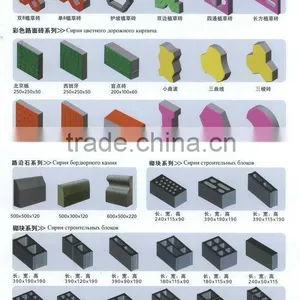

 About Brick shaped mold can be produced according to user needs.by QT6-15 block making machine .

4. Famous block making machine from Huayuan Machinery Manufactory:

TOP Quality fully automatic concrete block making machine with Lower price concrete block machine (QT6-15)

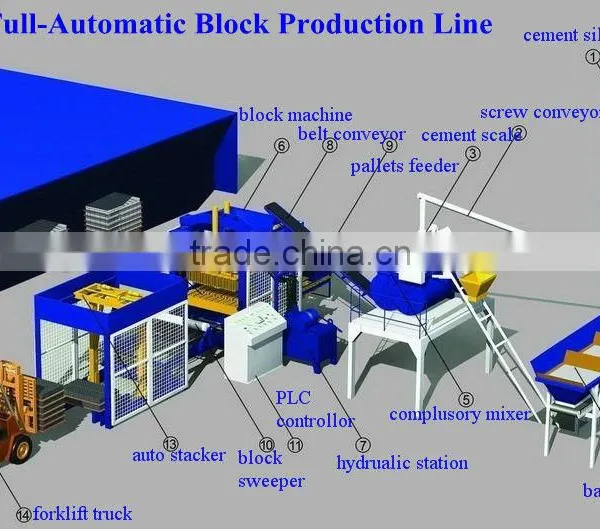

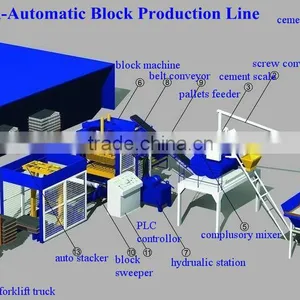

2)Simple automatic concrete blok making machine production line:

TOP Quality fully automatic concrete block making machine with Lower price concrete block machine (QT6-15)

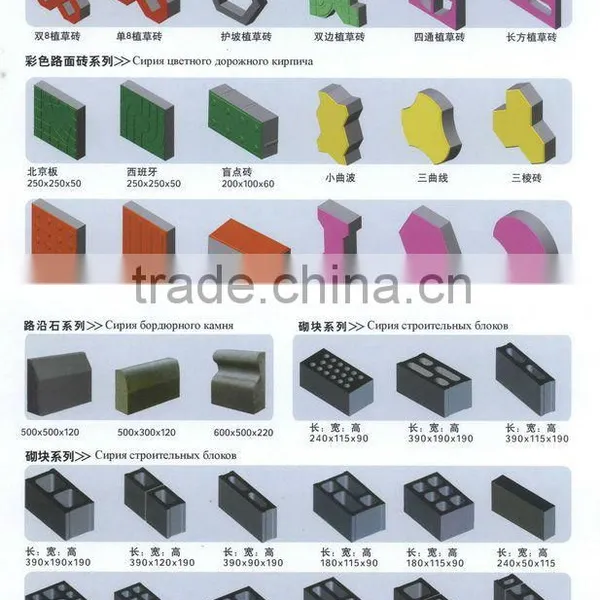

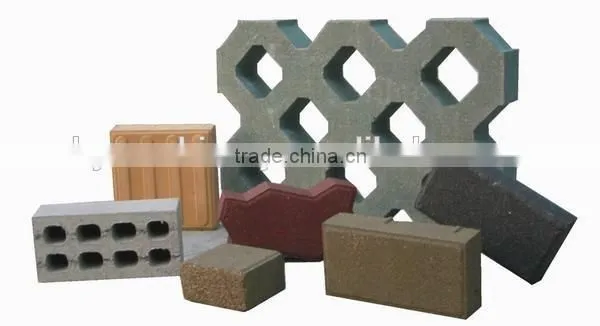

5,Sample blocks and brick produced by block making machine:

TOP Quality fully automatic concrete block making machine with Lower price concrete block machine (QT6-15)

Our Services

Our block making machine Installation Service:

Our factory could send one or two of our engineers to buyers place to direct the installation and give the operation training.

Block making machine After-sale service:

With1 years warranty,within one year time from the date of purchase,if malfunctions arise due to manufaturing quality factor,factory is responsible for free maintenance

Company Information

Our factory established in 1988,is a highly professional and experienced manufacturer for cement brick making machine,concrete block making machine, block making machine,paver making machine,curbstone making machine,batching plant,concrete mixer and so on,combining development,design, manufacture,sales and services.

TOP Quality fully automatic concrete block making machine with Lower price concrete block machine (QT6-15)

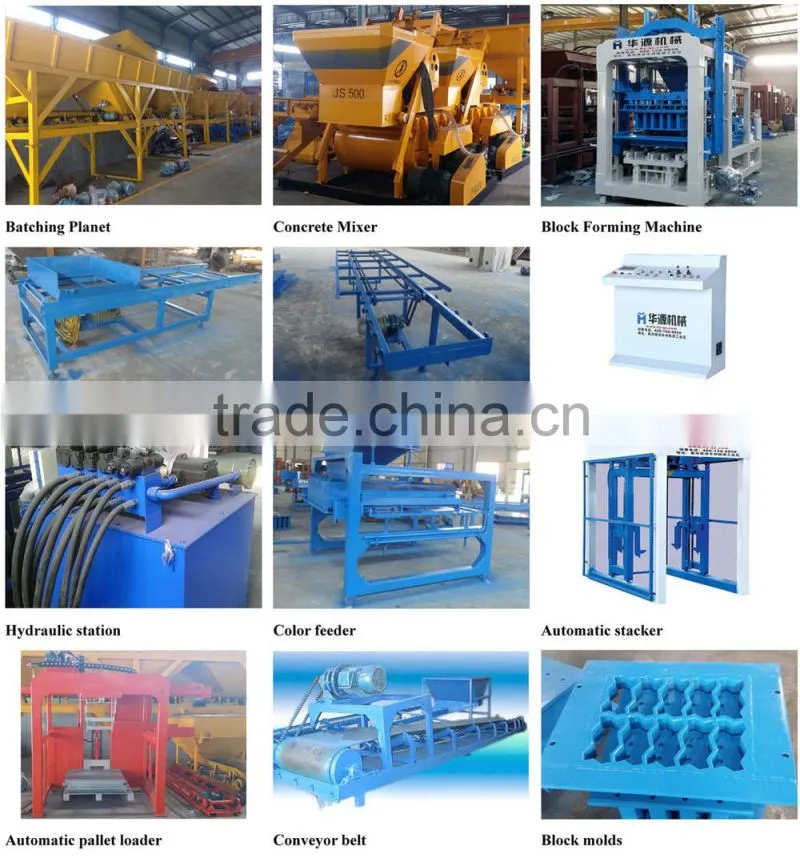

6,Block making machine Matching Equipments:

TOP Quality fully automatic concrete block making machine with Lower price concrete block machine (QT6-15)

7,Our concrete block making machine Customers From All Over The World:

 TOP Quality fully automatic concrete block making machine with Lower price concrete block machine (QT6-15)

8,Main Informations of Investing concrete block making machine:

Function:

Automatic block making machine can make Standard bricks, porous bricks, hollow bricks, paving bricks, curb stones, grass land bricks and so on. can be produced with various molds.

Process:

Our concrete block making machine is manpower saving for its operating rod control, automatic pallet conveyance, automatic leading-out and hydraulic molding.

Land area for QT6-15 block making machine:

* Stacking room: 5,000-6,000m2

* Raw material room: 400m2

* Operating workshop: 200m2

* Office: 50m2

Water and power:

* General power: 95Kw

* Average power consumption: 55Kw/h

* Average water consumption: 13T per day

Environmental protection:

It confirms to the environmental protection standard with no waste water, slag and waste gas in the production process.

Personnel quotate:

4-6 people

Brick Raw Material:

Concrete, Cement, Sand, Fly Ash, Construction waste, stone powder,etc

 8,The shipping of concrete block making machine price in india

TOP Quality fully automatic concrete block making machine with Lower price concrete block machine (QT6-15)





Block making machine Feedback;

Why Choose us?

We know you have many choices in block making machine. Here are some reasons to choose us.

1,Rich experience:
Factory with 20 years experience in block making machine field,up to now have more than 50 block making mchine lines in the oversea(such Congo, Algeria,Mozambique, Egypt, Jordan,Saudi Arabia ,Malaysia,Phillipiness,Indoneisia,India,Pakisitan,Sri-lanka,Chile,Peru and so on.

2,Reliability:
We are reputable and large manufacturers of block making machine with numerous certifications guarantee the quality of our machine. No smuggled goods.

3,Competitive price:
We always produce good quality block making machine with competitive price.









Welcome you inquiry!
