1,eps block machine QT4-15
2,foam block machine
3.cycle time:15-20s
4.Total power:22.9kw
5,Pallet size:850*560*20mm
Concrete Brick making machine,brick making machine,concrete brick machine,concrete block making machine,
hollow brick machine,hollow brick making machine
Huayuan foam block machine QT4-15 eps block machine
1, Main technical parameters of QT4-15 eps block machine :
Cycle Time |
15-20(s) |
Total Power |
22.9(kw) |
Vibration Type |
hydraulic vibration |
Motor Frequency |
50HZ |
Machine Dimension |
8200×4350×2700(mm) |
Pallet Size |
850×560×20(mm) |
Vibration Force |
58KN |
Gross Weight |
6200(kg) |
2,Brick Sizes and capacity:
Brick |
Sizes |
Output/ mould |
Output/Shift(8hours) |
picture |
Blocks |
390x190x190mm |
4 |
5,760-7,680 |
|
Porous bricks |
240x115x90mm |
12 |
17,280-23,040 |
|
Interlocking block |
200x100x60mm |
15 |
21,600-28,800 |
|
Solid bricks |
240x115x53mm |
24 |
34,560-46,080 |
|
QT4-15 eps block machine can prodcut all kinds of bricks size.

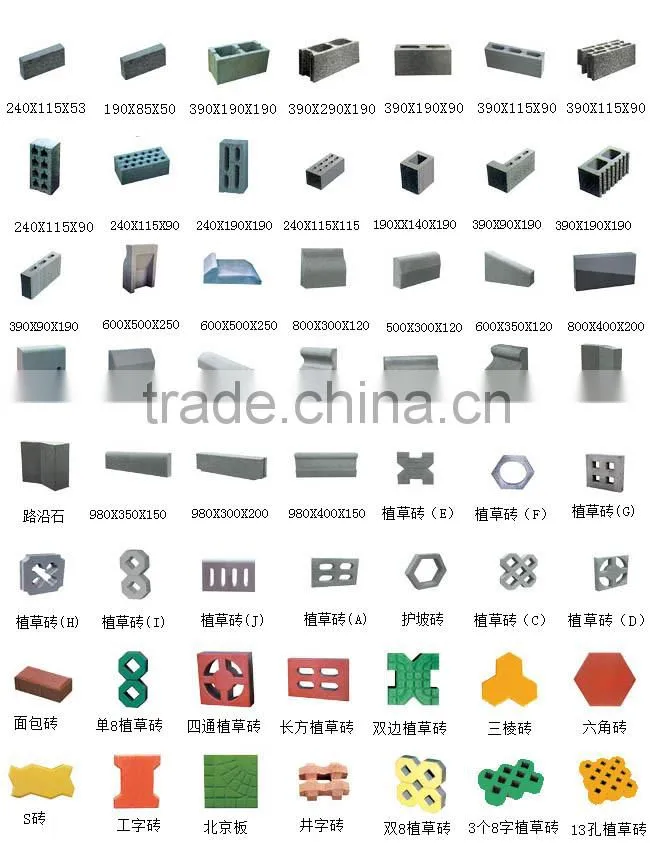

Bricks & Block Sample:
3,Main technical Specifications:
1. It consists of mechanic, electricity and hydraulic in one machine, and it runs automatically in circulation each procedure is interlocked, and the pressure is automatically assigned.
2. Useing intellent PLC control system, PCL touch screen , easy to change mechanical action according to different raw materials.
3. Fault self-diagnosis, comport for remote control guarantees technical support and maintenance.
Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .
multiple uses, it can produce all type of standard building blocks by changing mould.

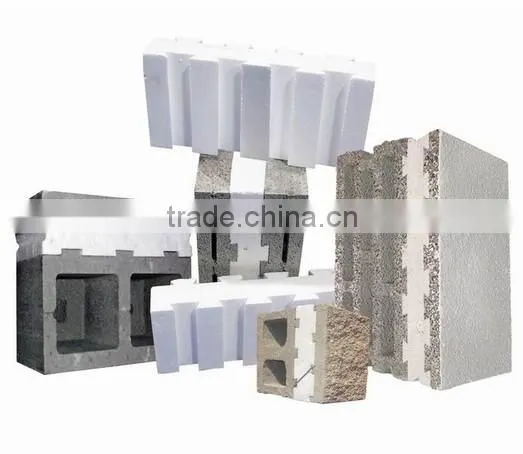

1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
4,QT4-15 eps block machine other information:
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : five or eight.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight:
(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. Raw material consumption per day:100-130T
6. water consumption per day:3%-5% of raw material Weight.
5,The Main Equipments of QT4-15 eps block machine :
| Batching plant PL800 with two bins | ||||
| CBM of Weighing Bin | 0.8 m3 | |
||
| CBM of Aggregate | 2*2m3 | |||
| Productivity | 48m3/h | |||
| Maximum weighing | 1,500kg | |||
| Quantity of Aggregates | 3 | |||
| Loading Height | 2,300 | |||
| Weighing System | Electronic Weighing System | |||
| Power | 6.6kw | |||
| Total Weight | 2,350kg | |||
| Machine Size(L*W*H) | 5470*1820*2810 mm | |||
| Specification of Concrete mixer JS500 | ||||
| Type | JS500 |
|
||
| Capacity of charging | 800 | |||
| Capacity of discharge | 500 | |||
| Productivity(m3/h) | ≥25 | |||
| Maximum diameter of / Cobble | 80 | |||
| Bone material (mm) /Crushed stones |
60 | |||
| Mixing fan / Turning speed(r/min) | 35 | |||
| Quantity | 2*7 | |||
| Mixing engine / Type | Y180M-4 | |||
| Power(kw) | 18.5 | |||
| Mixing engine /Type | YEZ132S-4-B5 | |||
| Power(kw) | 5.5 | |||
| Pump / Type | 50DWB20-8A | |||
| Power(kw) | 0.75 | |||
| Hosting speed of material holder | 18 | |||
| Outside size(mm) / Transport state | 3050*2300*2680mm | |||
| / Working state | 4461*3050*5225mm | |||
| Weight (kg) | 4000 | |||
| host machine QT4-15 eps block machine | |||
| Cycle Times | 15-20s |
|
|
| Total Power | 22.9(kw) | ||
| Motor Frequency | 50Hz | ||
| Pallet Size | 850*560*20mm | ||
| Rated Pressure | 21.5 (mpa) | ||
| Vibration Type | Hydraulic Vibration | ||
| Vibtation Force | 58(kn) | ||
| Gross Weight | 6200kg | ||
| Machine Size | 8200*4350*2000mm | ||
| Stacking Machine | 2.25 (kw) | ||
6,The Others Matching Machines of QT4-15 eps block machine :
7,Our eps block machine Customers From All over the World:
8, Pls don`t Feel hesitate to Contact Me by Following TO know more informations of QT4-15 eps block machine :
