automatic Brick Making Machine Price of QT12-15
1.Cycle time:15-20s
2.power:46.6kw
3,pallet size:1350*880*25mm
Huayuan Brick Machinery Manufactory
Since 1988,we have updated technique and mature experience.
brick making machine price ,concrete brick machine,concrete block making machine,hollow brick machine,hollow brick making machine..brick making machine,automatic brick making machine price
Intelligent Construction Machinery QT12-15 automatic cement brick making machine price in india
QT12-15 automatic brick making machine price Design characteristics:
Structure -- automatic brick making machine price
The brick making machine price is welded by using special thick-walled rectangle welding method. The transmission shaft and gears are made of alloy steel which makes them much stronger and more durable. The skip working platform is made of manganese, which extends its service life. Other parts of the machine are all in accordance with national standard. Beside, we are import spare parts from famous international company, such as Siemens from German.
Automatic brick making machine price is designed to produce standard bricks perforated bricks, hollow bricks, paving bricks, curbstones, concrete block by making wide use of raw materials, such as sand, stone chips, slag, coal gangue, coal ash, fly coal ash, construction waste , cement which are mixed in a certain proportion.
Automatic brick making machine price Control Device :
The automatic brick making machine employs the famous international PLC control of Siemens, besides, other electronic elements are import from world-famous manufacturers. It can work automatically, semi-automatically, manually according to your preference.
Technology specification:
Cycle Time | 15-20(s) | Vibration Type | hydraulic vibration |
Total Power | 46.6(kw) | Vibration | 150(KN) |
Vibration Frequency | 50HZ | Gross Weight | 14200(kg) |
Pallet Size | 1350×880×25(mm) | Machine Size | 11500×4550×2800(mm) |
Rated Pressure | 31.5(mpa) | Stacking Machine Power | 3(kw) |
Bricks | Sizes | Pcs/mould | Production per Shift(8 hours) | |
multi-holes block | 240x115x90mm | 30 | 43200-57600pcs | |
standard block | 240x115x51mm | 63 | 93600-124800pcs | |
hollow block | 390x190x190mm | 12 | 17280-23040pcs | |
color paver block | 200x100x60mm | 42 | 50400-60480pcs |
Items of investment :
Items | Quantity |
QT12-15 brick mking machine price | 1 |
Automatic brick conveyor machine | 1 |
Automatic pallet feeder | 1 |
Hydraulic unit | 1 |
Control system (German Siemens) | 1 |
Conveyer belt | 1 |
JS750 mixer | 1 |
Elevator/Lowerator | 1 |
Three-stage batching system(electronic calculation) | 1 |
Free mould | 1 |
Manual hydraulic forklift | 2 |

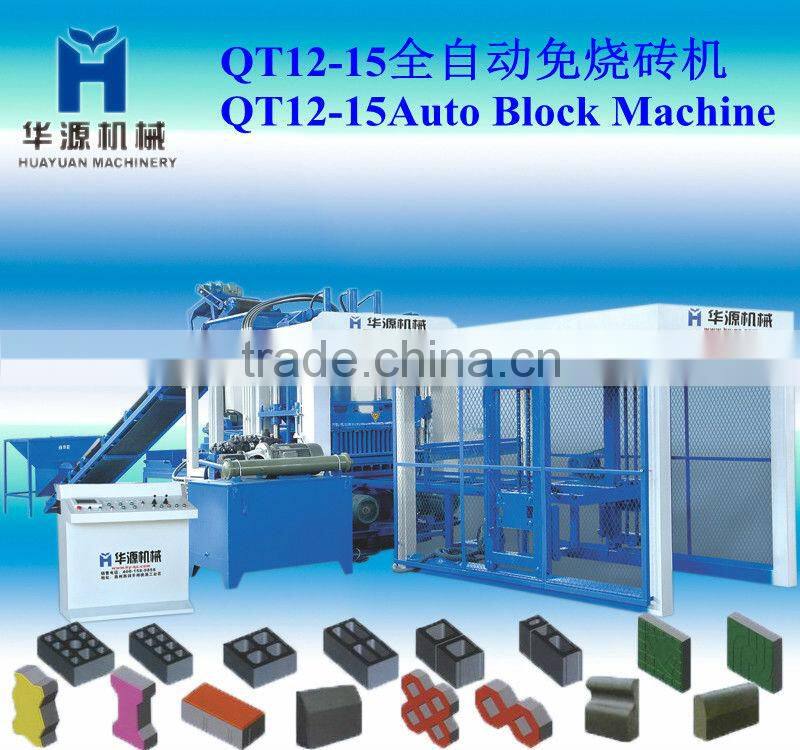

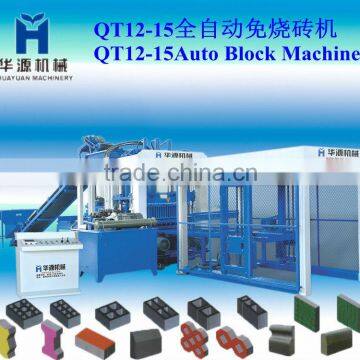

QT12-15 Simple Automatic brick making machine price production line:

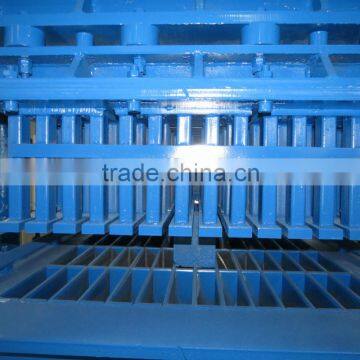

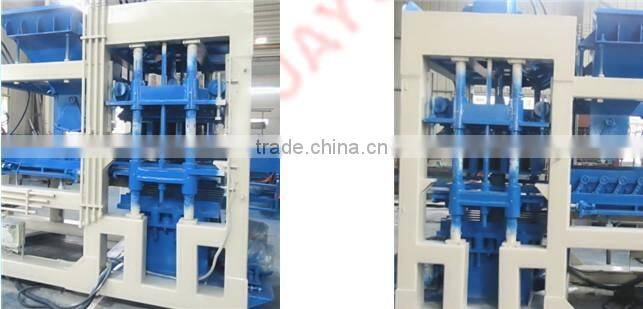

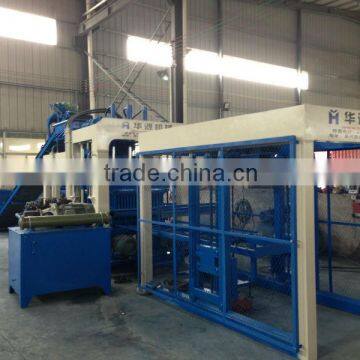

- Photos of QT12-15 fully automatic brick making machine price
| Batching plant PL1200 with three bins for automatic brick making machine price: | ||||
| CBM of Weighing Bin | 1.2 m3 | | ||
| CBM of Aggregate | 3*4m3 | |||
| Productivity | 60m3/h | |||
| Maximum weighing | 2,000kg | |||
| Quantity of Aggregates | 3 | |||
| Loading Height | 2,400 | |||
| Weighing System | Electronic Weighing System | |||
| Power | 10.6kw | |||
| Total Weight | 3,760kg | |||
| Machine Size(L*W*H) | 8390 * 2000 *2800mm | |||

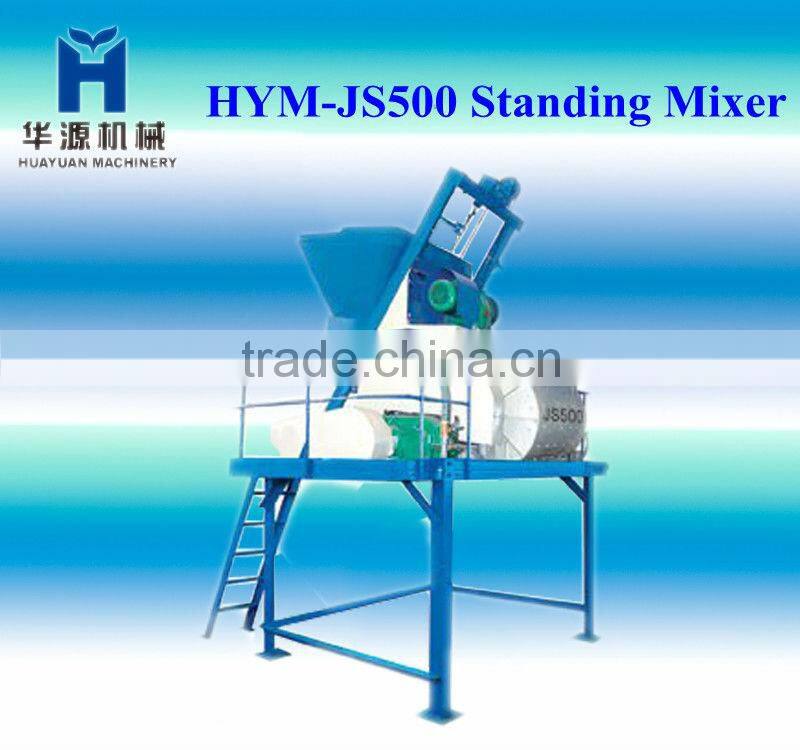

| Specification of Concrete mixer JS500 | ||||
| Type | JS500 | | ||
| Capacity of charging | 800 | |||
| Capacity of discharge | 500 | |||
| Productivity(m3/h) | ≥25 | |||
| Maximum diameter of / Cobble | 80 | |||
| Bone material (mm) /Crushed stones | 60 | |||
| Mixing fan / Turning speed(r/min) | 35 | |||
| Quantity | 2*7 | |||
| Mixing engine / Type | Y180M-4 | |||
| Power(kw) | 18.5 | |||
| Mixing engine /Type | YEZ132S-4-B5 | |||
| Power(kw) | 5.5 | |||
| Pump / Type | 50DWB20-8A | |||
| Power(kw) | 0.75 | |||
| Hosting speed of material holder | 18 | |||
| Outside size(mm) / Transport state | 3050*2300*2680mm | |||
| / Working state | 4461*3050*5225mm | |||
| Weight (kg) | 4000 | |||
| brick making machine price for QT12-15 | |||
| Cycle Times | 15-20s | | |
| Total Power | 38.1(kw) | ||
| Motor Frequency | 50Hz | ||
| Pallet Size | 1350×880×25mm | ||
| Rated Pressure | 31.5 (mpa) | ||
| Vibration Type | Hydraulic Vibration | ||
| Vibtation Force | 150(kn) | ||
| Gross Weight | 14200kg | ||
| Machine Size | 11500×4550×2800mm | ||
| Stacking Machine | 3 (kw) | ||
We need your help
When you interested in our brick making machine price Pls send us the inquiry, and let us know these information:we will try to meet your demand,
1.What is the daily capacity you want to make?
2.What kinds of brick do you want to make?simple brick? Brick pictures are welcomed!
Your Attention Will Be Highly Appreciated! Welcome for your Inquiry brick making machine price !!
Many thanks!!!
