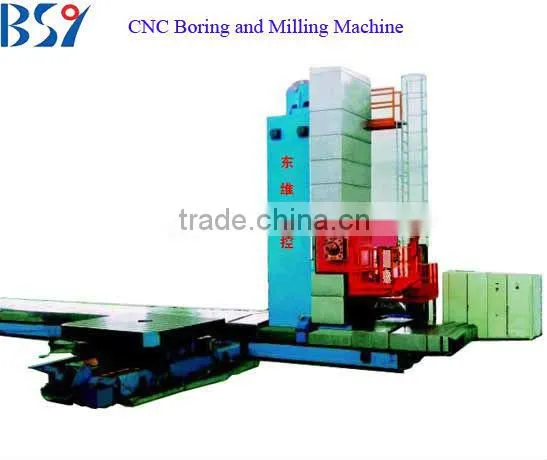

Help CenterCNC Boring and Milling Machine
Related Products
Specifications
1.Spindle diameter 160 mm2.Boring axis cone Is050
Performance and Characteristics:
1,Boring and milling machine tool using floor layout, in addition to using the rotary table outside the workpiece stationary, all movement by the spindle (tool) to complete, the spindle horizontal layout, I was shaped bed, column for vertical movement in the bed body (X axis) cross slide along the column for vertical movement (Y axis), ram spindle box on the cross slide for axial movement (Z axis), boring shaft for axial movement in the slip pillow (W-axis), fixed to the rotary table machine in front of the bench slide in the base table in a straight line along the Z axis (R axis), rotary table seat at the table slide along the Y axis rotates (B axis).
2,Guides: X / R / B-axis hydrostatic guideway cast iron, Y-axis with inlaid steel guide rail and laminating, Z-axis linear guides with roller.
3,Boring and milling spindle with telescopic spindle cell, spindle with automatic somra knife with AC spindle motor and gear hydraulic automatic transmission. Manually change angle, universal milling head, with AC spindle motor.
4,T-shaped landing platform with the structure of cast iron slot positioning platform .
5,Lubrication: Grease spindle, ball screw slide rail and intermittent use of thin oil lubrication centralized.
6,Static: Static pressure system using constant current quantitative pump.
7,Electrical and layout of the system: 7-axis CNC Siemens four-linkage.
Technical parameters |
TK6916×10 |
Spindle diameter |
160 mm |
Boring axis cone |
Is050 |
Ram size |
500×500 mm |
Table size |
2500×2500 mm |
Maximum table load |
30000kg |
Column travel (X) |
10000 mm |
Headstock travel (Y) |
2000 mm |
Ram travel (Z) |
1000 mm |
Boring axis travel (W) |
1000 mm |
Boring axis and the total ram stroke |
2000 mm |
Table straight trip (R) |
2000 mm |
Table rotation (B) |
360° |
Distance spindle axis to the platform face |
560~2560mm |
Maximum torque axis milling |
5000NM |
Spindle speed range |
10~1500rpm |
Spindle motor power (continuous / 30min) |
55/64KW |
Feed speed X, Y, Z, W, R |
1-4000mm/min |
T-slot size |
22H8(28H8) x16 mm |
|
Positioning accuracy X,Y,R Z,W |
0.035/1000 mm 0.045/1000 mm |
Repeat positioning accuracy |
0.025/1000 mm |
Machine Weight |
135T |
