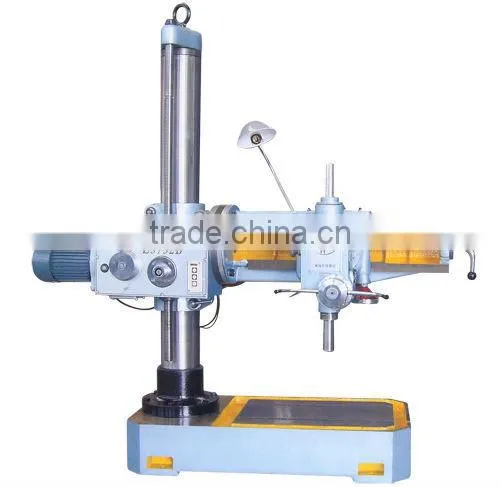

Radial Arm Drilling Machine Z3732B

Name: Radial Arm Drilling Machine Z3732B
Brand: DONGWEI
SKU: 129153159
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Drilling Speed:

173,425,686,960rpm

Shandong BSY Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Drilling Speed 173,425,686,960rpm

Place of Origin Shandong, China

Brand Name DONGWEI

Model Number Z3732B

Voltage 380

Power(W) 1.5kw

Weight 720KG

Certification ISO

Specifications

Z3732B be used to drill, broach ,ream , bore , and tap the parts,LARGE QUANTITY BE MANUFACTURING.

Features:

--- rocking arm is designed as a roller bearing with the internal and external posts.

--main shaft feeding ,cross arm going up and down ,recycling water cooling ,overload protection ,etc .

---It features good performance, low noise and price, easy operation and maintenance ,etc.

Specification	Z3732B
Max.drilling diameter	32mm
Morse taper of main shaft bore	3
Movable stoke of main shaft	130mm
Max.drilling from main shaft centerline to post trunk	315-815mm
Horizontal movable stoke of main shaft	500mm
Drilling from main shaft face to base plate	25-870mm
Main shaft stroke on post	845mm
Turning angle of main shaft normal to the post level line	360^o
Turning angle of cross arm around post	360^o
Value on dial	4
Speed grade of main shaft	173-960
Area of base plate	580×450mm
Motor type	Y90L-4
Motor power	1.5KW
Motor revolution	1410
Outline size (LxWxH)	1800x680x1991mm
