Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > Radial Arm Drilling Machine Z3132M

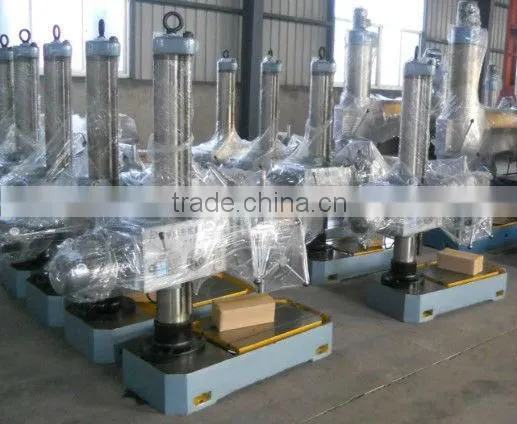

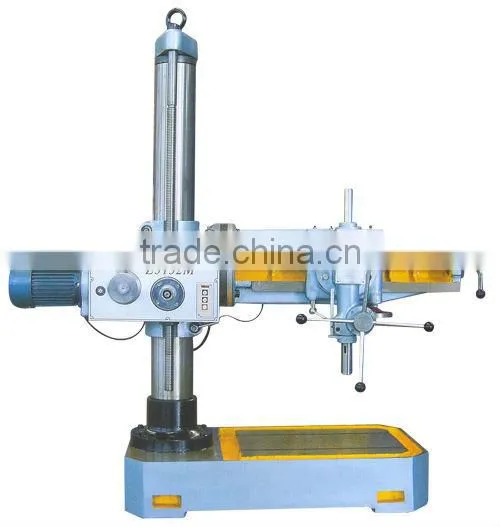

Radial Arm Drilling Machine Z3132M

Name: Radial Arm Drilling Machine Z3132M
Brand: DONGWEI
SKU: 129153155
Availability: InStock

Radial Arm Drilling Machine Z3132M thumbnail-1

Radial Arm Drilling Machine Z3132M photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

Normal

Drilling Speed:

173,425,686,960rpm

Contact Supplier Request Quote Chat Now

Shandong BSY Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not Normal

Drilling Speed 173,425,686,960rpm

Place of Origin Shandong, China

Brand Name DONGWEI

Model Number Z3132M

Voltage 380

Power(W) 1.5kw

Weight 720KG

Certification ISO

Specifications

Universal Radial Arm Drilling Machine Z3132M be used to drill, broach ,ream , bore , and tap the parts.

Features:

It is easy to operate since its rocking arm is designed as a roller bearing with the internal and external posts. It is well known for main shaft feeding ,cross arm going up and down ,recycling water cooling ,overload protection ,etc .It features good performance, low noise and price, easy operation and maintenance ,etc.

Specification	Z3132M
Max.drilling diameter	32mm
Morse taper of main shaft bore	3
Movable stoke of main shaft	130mm
Max.drilling from main shaft centerline to post trunk	815mm
Min.drilling from main shaft centerline to post trunk	315mm
Horizontal movable stoke of main shaft	500mm
Max.drilling from main shaft face to base plate	870mm
Min.drilling from main shaft face to base plate	25mm
Main shaft stroke on post	845mm
Turning angle of main shaft normal to the post level line	360^o
Turning angle of cross arm around post	360^o
Value on dial	1^o
Speed grade of main shaft	4
Revolution of main shaft	173 425 686 960
Area of base plate	580×450mm
Motor type	Y90L-4
Motor power	1.5 KW
Motor revolution	1410
Outline size (LxWxH)	1800x680x1991mm
Net weight of lathe	720 KG
