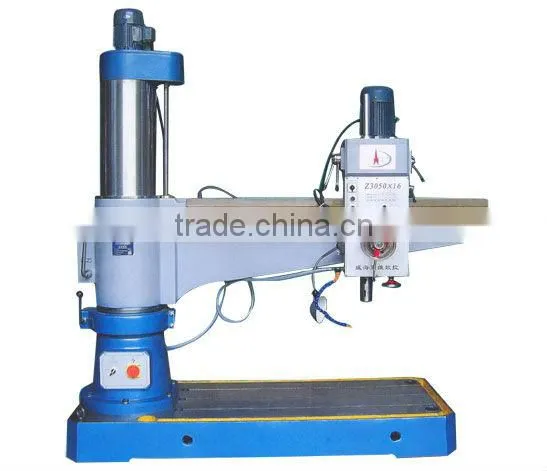

Radial Arm Drilling Machine Z3050*16

Name: Radial Arm Drilling Machine Z3050*16
Brand: DONGWEI
SKU: 129153167
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Drilling Speed:

68-1230rpm INFREQUENCY CHANGE

Shandong BSY Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Drilling Speed 68-1230rpm INFREQUENCY CHANGE

Place of Origin Shandong, China

Brand Name DONGWEI

Model Number Z3050*16

Voltage 380

Power(W) 3kw

Weight 2500KG

Certification ISO

Specifications

Z3050*16 with Cooling pump,funcitons inlcuding drill, broach ,ream , bore , and tap the parts,LARGE QUANTITY BE MANUFACTURING.

Features:

--- rocking arm is designed as a roller bearing with the internal and external posts.

--main shaft feeding ,cross arm going up and down ,recycling water cooling ,overload protection ,etc .

---It features good performance, low noise and price, easy operation and maintenance ,etc.

Specification	Z3050x16
Max. drilling diameter	50mm
Morse taper of main shaft bore	4
Movable stoke of main shaft	300mm
Distance from main shaft centerline to post trunk	310-1600mm
Horizontal movable stoke of main shaft	1290mm
Distance from main shaft face to base plate	290-1240mm
Main shaft stroke on post	650mm
Main shaft speed steps	6
Main shaft speed range	68-1230
Main shaft feeding steps	3
Main shaft feeding range	0.1-0.25
Area of base plate	1450x720mm
Main motor type	Y100L2-4-B5
Main motor power	3kw
Pump motor power	40w
Outline size	2335x900x2380mm
Net weight of lathe	2500kg
