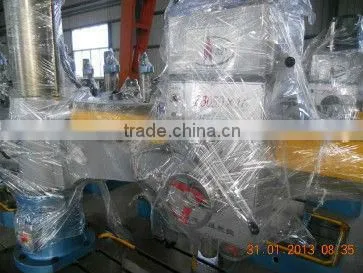

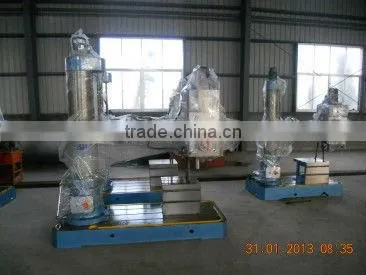

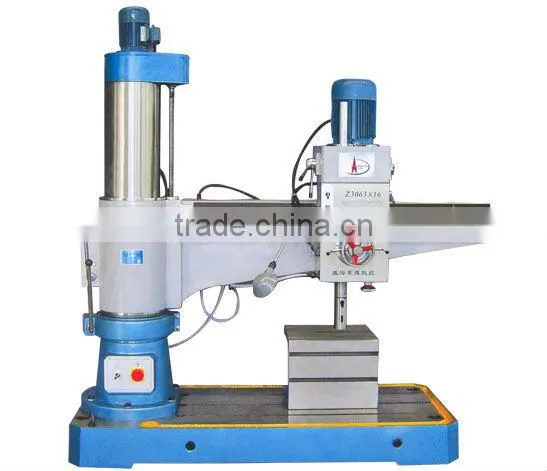

Radial Drilling Machine Z3063*16

Name: Radial Drilling Machine Z3063*16
Brand: DONGWEI
SKU: 129153151
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Drilling Speed:

47-1232rpm

Shandong BSY Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Drilling Speed 47-1232rpm

Place of Origin Shandong, China

Brand Name DONGWEI

Model Number Z3063*16

Voltage 380

Power(W) 4kw

Dimension(L*W*H) 2350x900x2510mm

Weight 2900KG

Certification ISO

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Radial Arm Drilling Machine Z3063*16 be used to drill, broach ,ream , bore , and tap the parts ,over twenty years manfacturing.

Features:

---rocking arm is designed as a roller bearing with the internal and external posts.

---well known Meatalworking brand in China--- Dongwei;

--main shaft feeding ,cross arm going up and down ,recycling water cooling ,overload protection ,etc

.--- low noise and price, easy operation and maintenance ,etc.

Specification	Z3063×16
Max. drilling diameter	63mm
Morse taper of main shaft bore	5
Movable stoke of main shaft	300mm
Distance from main shaft centerline to post trunk	360-1600mm
Horizontal movable stoke of main shaft	1240mm
distance from main shaft face to base plate	250-1190mm
Main shaft stroke on post	650mm
Turning angle of cross arm around post	±180°
Main shaft speed steps	12
Main shaft speed range	47-1232rpm
Main shaft feeding steps	3
Main shaft feeding range	0.1-0.25
Diameter of vertical post	320mm
Area of base plate	1450×720mm
Main motor type	YD132S-6/4
Main motor power	3kw/4kw
Pump motor power	40w
Outline size (LxWxH)	2350x900x2510mm
Net weight	2900kg
