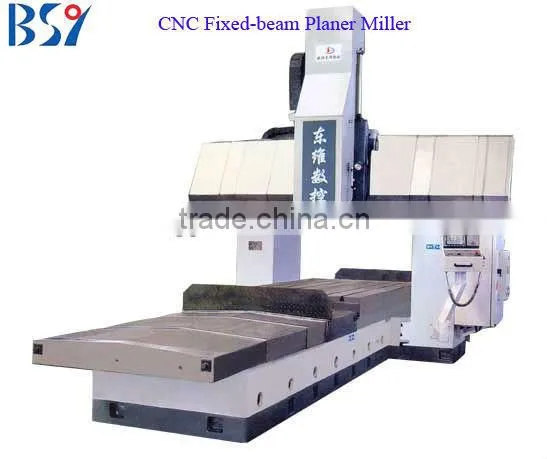

Help CenterCNC Fixed-beam Milling Planer
Related Products
Specifications
1.Bench(W x L) 1600x3000(mm)2.Spindle rotation speed 60-3500(rpm)
1.Main parts of the machine: machine bed, worktable, upright post , beam, horizontal sliding plate, Vertical sliding plate and milling head. All the machine parts are made with long time precision maintenance and cutting under considcration.
2, The machine adopts gantry frame structure, worktable does X axle movement along machine bed rail ,vertical milling head does Y axle movement along beam , and milling head does Zaxle movement along horizontal sliding plate, the X, Y, Z movement is driven by AC servo motor, transmitted by screw through gear wheels.
3, It adopts imported milling and cutting spindle, motor realizes stepless speed regulation by transformer and program controller, and the rotation range is 60-3500rpm.
4, It adopts pncumatic blade shifting device, which makes tool loading casy and swift.
5, Electronic brake and balance device is allocated for vertical lifting movcment, to maintain stable running and avoid blade disconnection on Z axle.
6, It adopts auto interval lubrication device to guarantee all rails to run smooth.
Specification |
XSK1830 |
Bench(W x L) |
1600×3000(mm) |
Stroke of X axis |
3000(mm) |
Stroke of Y axis |
1800(mm) |
Stroke of Z axis |
850(mm) |
Distance from upright milling head to table |
150-1000(mm) |
Spindle rotation speed |
60-3500(rpm) |
Upright post space |
1900(mm) |
Spindle taper hole |
BT50 |
Spindle outer diameter |
Φ190(mm) |
Fast moving speed of X,Y,Z |
5000(mm/min) |
Work speed of X,Y,Z |
30-5000(mm/min) |
Max diamcter of milling facer |
Φ250(mm) |
Max loading weight |
6000(kg) |
Motor power of main shaft |
11-15(kw) |
Motor power of X axis |
3.5(kw) |
Motor power of Y axis |
3.5(kw) |
Motor power of Z axis |
3.5(kw) |
Lubricating motor power |
0.03(kw) |
Air pressure |
6(kg/cm2 ) |
Electricity supply |
25.53(kw) |
Covering size |
8200×4060(mm) |
Machine height |
4500(mm) |
Net weight |
30000(kg) |
