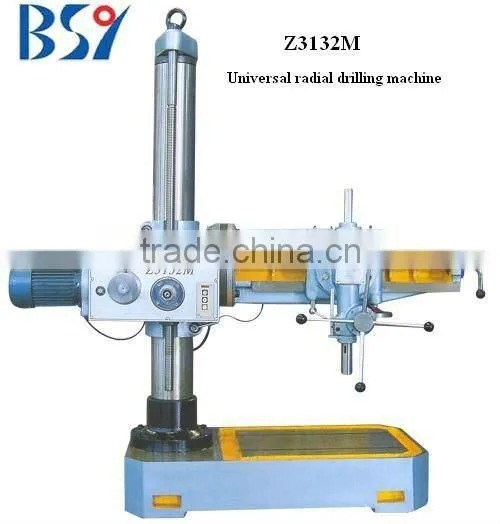

Z3132M Universal Radial Drilling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BSY
Model Number:
Z3132M
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
BSY
Model Number
Z3132M
Rated Power
1.5 KW
Weight
720 KG
Specifications
The lathe belongs to a universal radial driller,it can move from left to right in the main shaft,and along the horizontal railsSpecification |
Z3132M |
Max.drilling diameter |
32mm |
Morse taper of main shaft bore |
3 |
Movable stoke of main shaft |
130mm |
Max.drilling from main shaft centerline to post trunk |
815mm |
Min.drilling from main shaft centerline to post trunk |
315mm |
Horizontal movable stoke of main shaft |
500mm |
Max.drilling from main shaft face to base plate |
870mm |
Min.drilling from main shaft face to base plate |
25mm |
Main shaft stroke on post |
845mm |
Turning angle of main shaft normal to the post level line |
360o |
Turning angle of cross arm around post |
360o |
Value on dial |
1o |
Speed grade of main shaft |
4 |
Revolution of main shaft |
173 425 686 960 |
Area of base plate |
580×450mm |
Motor type |
Y90L-4 |
Motor power |
1.5 KW |
Motor revolution |
1410 |
Outline size (LxWxH) |
1800x680x1991mm |
Net weight of lathe |
720 KG |
