Home > Manufacturing & Processing Machinery > Metallurgy Machinery > Z3063 X16 Radial Drilling Machine

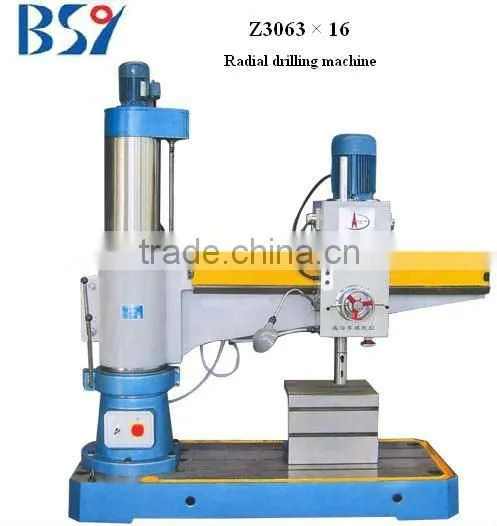

Z3063 X16 Radial Drilling Machine

Z3063 X16 Radial Drilling Machine thumbnail-1
Z3063 X16 Radial Drilling Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BSY
Model Number:
Z3063 x16
Contact Supplier Request Quote Chat Now
Shandong BSY Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name BSY
Model Number Z3063 x16

Specifications

It is easy to operate since its rocking arm is designed as a roller bearing with the internal and external posts.

Specification

Z3063x16

Max. drilling diameter

63mm

Morse taper of main shaft bore

5

Movable stoke of main shaft

300mm

Distance from main shaft centerline to post trunk

360-1600mm

Horizontal movable stoke of main shaft

1240mm

distance from main shaft face to base plate

250-1190mm

Main shaft stroke on post

650mm

Main shaft speed steps

12

Main shaft speed range

47-1232

Main shaft feeding steps

3

Main shaft feeding range

0.1-0.25

Diameter of vertical post

320mm

Area of base plate

1450x720mm

Main motor type

YD132S-6/4

Main motor power

3kw/4kw

Pump motor power

40w

Outline size (LxWxH)

2350x900x2510mm

Net weight of lathe

2900kg
Z3063 x16 Radial drilling machine
