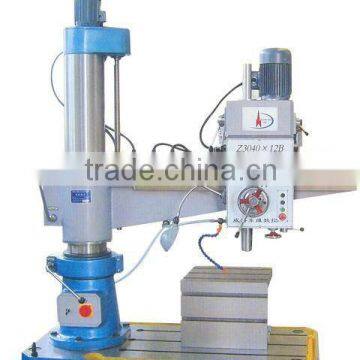

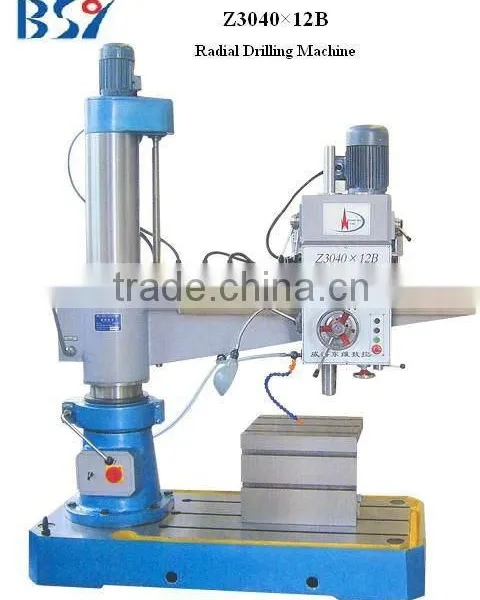

Z3040x12B Radial Drilling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BSY
Model Number:
Z3040x12B
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
BSY
Model Number
Z3040x12B
Rated Power
2.2kw
Weight
1900kg
Specifications
It features good performance, low noise and price, easy operation and maintenance ,etc.Specification |
Z3040×12B |
Max. drilling diameter |
40mm |
Morse taper of main shaft bore |
4 |
Movable stoke of main shaft |
270mm |
Distance from main shaft centerline to post trunk |
300-1200mm |
Horizontal movable stoke of main shaft |
900mm |
Distance from main shaft face to base plate |
230-1150mm |
Main shaft stroke on post |
920mm |
Main shaft speed steps |
6 |
Main shaft speed range |
40-1250 |
Main shaft feeding steps |
3 |
Main shaft feeding range |
0.1-0.25 |
Area of base plate |
1050×660mm |
Main motor type |
Y100L1-4-B5 |
Main motor power |
2.2kw |
Pump motor power |
40w |
Outline size (LxWxH) |
1950x800x2220mm |
Net weight of lathe |
1900kg |
