Gantry Grinding Metalworking Machine

Gantry Grinding Metalworking Machine thumbnail-1
Gantry Grinding Metalworking Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Dong Wei
Model Number:
MK2460
Contact Supplier Request Quote Chat Now
Shandong BSY Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO SHANGGHAI GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Dong Wei
Model Number MK2460

Specifications

Hydraulic system,High precision grinding head is use antifriction bearing,International control system.

Technical parameters

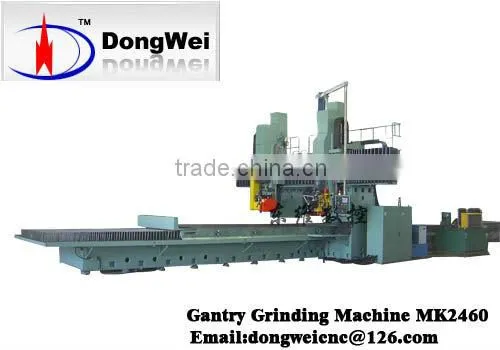

DONGWEI gantry grinding machine MK2460

Working table size

6000×2000;

2000×1000;3000×1600;4000×1600;5000×2000; 8000×2000mm

Maximum working size

6000×2400×1200 2000×1400×850,3000×1800×850,4200×1800×850,
5000×2400×1000,8000×2400×1000mm

Main spindle center to working table distance (horizontal spindle)

200~1000~1200mm

Main spindle center to working table distance (vertical spindle)

0~650mm 0~850mm

Working load capacity

12000kg

Horizontal grinding head motor power

18.5kw

Vertical grinding head motor power

11kw

Working table lenthway moving speed

 5~18m/min

Grinding head horizontal moving speed

30~2000mm/min

Grinding head vertical moving speed

30~1000mm/min

Each grid Horizontal and vertical feeding

0.005mm

Hydraulic box motor power

7.5kw; 15kw

Horizontal feeding motor power

3kw

Vertical feeding motor power

3kw(With electromagnetic brake )

Horizontal grinding wheel size

Φ500x75xΦ203mm

Vertical grinding wheel size

Φ400x60xΦ127mm
