Help CenterWUXI H I BOX Beam Build up Welding Automatic h Beam Production Equipment
Related Products
-
H Beam I Beam Box Beam Automatic Submerged Arc SAW Welding DeviceUS$ 10,000 - 30,000MOQ: 1 Set -
HW12 H I C Beam Horizontal Welding Production Line MachineryUS$ 50,000 - 100,000MOQ: 1 Set
-
H C I Beam Horizontal Welding Production Line Machinery Automatic h Beam Welding MachineUS$ 50,000 - 100,000MOQ: 1 Set
-
HW15 H I Beam Horizontal Submerged Arc Welding LineUS$ 45,000 - 80,000MOQ: 1 Set
-
HW15 H I Beam Horizontal Welding Production Line Machinery Automatic h Beam Welding MachineUS$ 50,000 - 100,000MOQ: 1 Set
Specifications
WUXI H I BOX Beam build up welding automatic h beam production equipment1.H / I beam Web height: >200mm
1. WUXI H I BOX Beam build up welding automatic h beam production equipment technology
1 |
Flange thickness |
mm |
6-40,8-100 |
2 |
Flange width |
mm |
200-800,200-1000 |
3 |
Web height |
mm |
200-1500,2000,2500 |
4 |
H beam length |
mm |
4000-16000 |
5 |
Web thickness |
mm |
6-40,8-60,80 |
6 |
Hydraulic |
1 set, Chinese or other brand customer choose |
|
7 |
Toal length of a compelet line |
mm/min |
108m |
8 |
Output per month |
T |
500-900 |

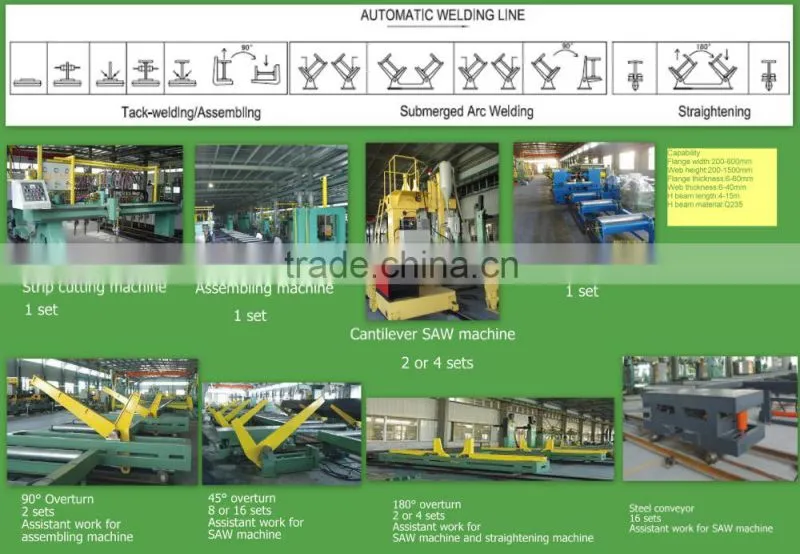

2. WUXI H I BOX Beam build up welding automatic h beam production equipment work process
3.Application of WUXI H I BOX Beam build up welding automatic h beam production equipment
Cranes manufacture, steel structure manufacture,bridge building,h beam build up,automatic light h beam welding,spot welding machine, steel fabrication
4.Advantage of WUXI H I BOX Beam build up welding automatic h beam production equipment
Easy operation, automatic welding,easy installation,lasting life
5.Machine seat and support column process of WUXI H I BOX Beam build up welding automatic h beam production equipment
Steel box column processed on CNC machining center, to make sure good fitting and high strength
6.Strict and serious quality testing for WUXI H I BOX Beam build up welding automatic h beam production equipment
There are two moving quality inspectors at each process, and the manager for each shift and monitor the production closely. Inspect and correct the parts after machining before assembling.
7.Factory and Workshop show for WUXI H I BOX Beam build up welding automatic h beam production equipment
8. Package and shipment for WUXI H I BOX Beam build up welding automatic h beam production equipment
9. Warranty and Service after sales for WUXI H I BOX Beam build up welding automatic h beam production equipment
Warranty time: 12months since machinery installation finished.
Service after sales:
Professional Installation and training at customer spot factory,during time decides by different machine.
Lower price of consumable parts than markets .
Trouble response: 24hours online reply. If broken parts is not comsumable parts or breaks by wrong operation, we can send the broken parts free once confirmed.
Engineer service available overseas.
10.Exhibitons and products WUXI H I BOX Beam build up welding automatic h beam production equipment
