Specifications
H beam I beam box beam automatic submerged arc SAW welding device1.h beam
2.steel fabrication
3.steel building,steel struct
Technology of H beam I beam box beam automatic submerged arc SAW welding device
This production welding line is used to produce the H/I beam that been used to fabricate the steel structure workshop. This line has the high automatization and is suitable for the big scale production which can improve the production efficiency greatly. The whole line consists of: CNC cutting machine, H beam auto-assembling machine, transporting roller, 90 degrees movable overturn support, 45 degrees welding tilting support, Cantilever SAW welding machine, Steel conveyor, 180 degrees movable overturn support, H beam straightening machine. This line can realize the automatic production of the H beam, except the cutting and the H BEAM assembling and after straightening, which need the overhead crane to carry the beams. This line has the features of high production efficiency and low labor strength.
Parameter of H beam I beam box beam automatic submerged arc SAW welding device
Flange width |
200-800 mm |
Web height |
≥200 mm |
H beam length |
4000-20000 mm |
Rail span |
1400mm |
Rail length |
24000 mm |
Welding speed: 250-750 mm/min (according to welding technology) |
|
Rapid speed |
3000 mm/min |
Welding type |
Fillet welding in the flat position |
Welding wire |
Φ3-Φ5 mm |
Flux recovery unit |
100 kg×1 |
Drive mode |
Dual drive |
Control mode |
Inverter step less speed adjustment |
Power supply |
380 V/3 PH/50 HZ |
Machine power |
5 kW exclude welder |

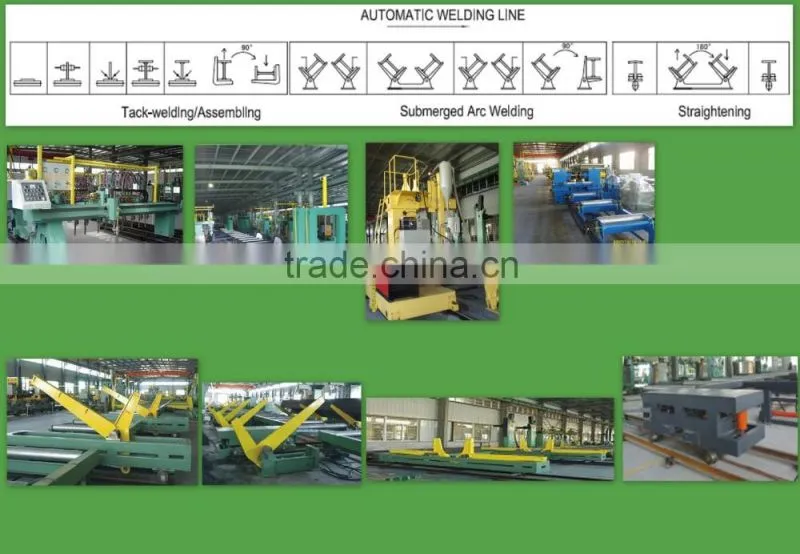

Process of H beam I beam box beam automatic submerged arc SAW welding device
Products of H beam I beam box beam automatic submerged arc SAW welding device
H beam process for a complete prodction line
Professional package and timely shipment
Independent,professional and serious quality control team
Reliable production capability is made sure by advaned facilities and good management

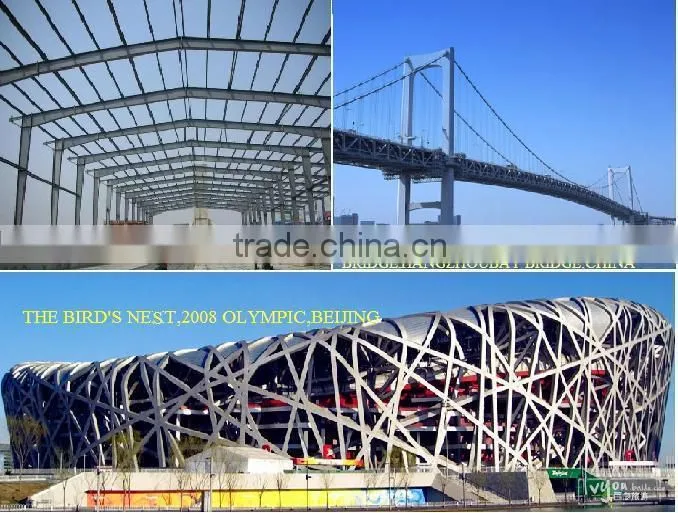

Application of H beam I beam box beam automatic submerged arc SAW welding device
Products sample and exihibitons
