H C I beam Horizontal Welding production line machinery automatic h beam welding machine

Specifications

HW15 H C I beam Horizontal Welding production line machinery automatic h beam welding machine
save space,labor cost

1. HW15 H C I  beam Horizontal Welding production line machinery automatic h beam welding machine

Horizontal H beam Welding Line  is a new special design special for light h beam welding produciton.



The line consists of assembling machine, front welding machine, turn-over device, back welding machine and H beam transmission conveyors. The whole line divides into 4 steps, which realizes H beam assembling, saw welding, 180º turn-over device and H beam transmission between each steps. It adopts the advanced technology of head assembling, horizontal leveling stand welding, single arc and double wire welding, and realizes fast welding of H beam, reducing welding distortion. It is the perfect device for producing large quantity of H beam.



2. Main technical data of  HW15 H I  beam Horizontal Welding production line machinery automatic h beam welding machine

H beam diemsnion

Web height                      300-1500mm

Web thickness                  5-10mm

Flange width                     100-500mm

Flange thickness                   5-20mm

Workpiece lenght                  5~15m

Inclination of H beam              ≤8°

Welding type                        single arc and double wire saw welding

Welder                                 DC1000, Lincoln, USA

Welding speed                      300-1500mm/min(step less speed adjustment)

Welding wire dia                   φ1.6

Machine power                     about 350KVA

Voltage                                380V,50Hz, 3ph

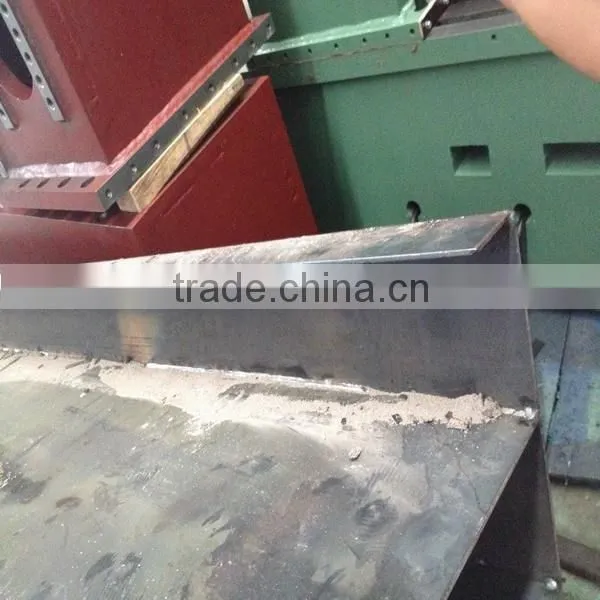

3.Products  of  HW15 H C I  beam Horizontal Welding production line machinery  automatic h beam welding automatic h beam welding machine machine









4.Advantage of  HW15 H C  I  beam Horizontal Welding production line machinery  automatic h beam welding machine





5.Machine seat and support column process of   HW15 H C I  beam Horizontal Welding production line machinery  automatic h beam welding machine





 Steel box column processed on CNC machining center, to make sure good fitting and high strength













 6.Strict and serious quality testing for  HW15 H C I  beam Horizontal Welding production line machinery







There are two moving quality inspectors at each process, and the manager for each shift and monitor the production closely. Inspect and correct the parts after machining before assembling.













7.Factory and Workshop show for  HW15 H C I  beam Horizontal Welding production line machinery











8. Package and shipment for  HW15 H C I  beam Horizontal Welding production line machinery







9. Warranty and Service after sales for  HW15 H C I  beam Horizontal Welding production line machinery

Warranty time: 12months since machinery installation finished.



Service after sales:



Professional Installation and training at customer spot factory,during time decides by different machine.



Lower price of consumable parts than markets .



Trouble response: 24hours online reply. If broken parts is not comsumable parts or breaks by wrong operation, we can send the broken parts free once confirmed.



Engineer service available overseas.



10.Application of   HW15 H C I  beam Horizontal Welding production line machinery



Cranes manufacture, steel structure manufacture,bridge building,h beam build up,automatic light h beam welding,spot welding machine, steel fabrication
