Specifications
HW15 H I beam Horizontal Welding production line machinery automatic h beam welding machinesave space,labor cost
1. HW15 H I beam Horizontal Welding production line machinery automatic h beam welding machine

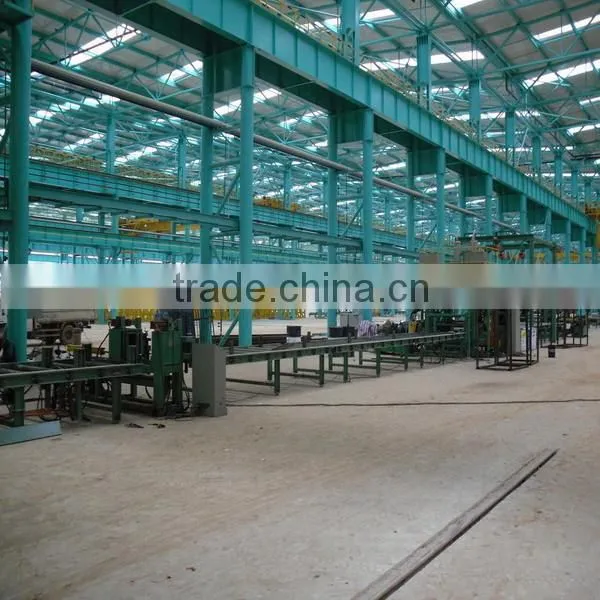

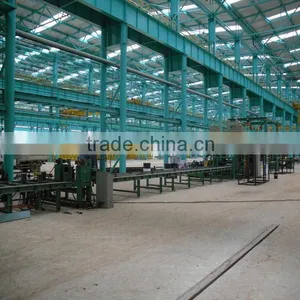

Horizontal H beam Welding Line is a new special design special for light h beam welding produciton.
The line consists of assembling machine, front welding machine, turn-over device, back welding machine and H beam transmission conveyors. The whole line divides into 4 steps, which realizes H beam assembling, saw welding, 180º turn-over device and H beam transmission between each steps. It adopts the advanced technology of head assembling, horizontal leveling stand welding, single arc and double wire welding, and realizes fast welding of H beam, reducing welding distortion. It is the perfect device for producing large quantity of H beam.
2. Main technical data of HW15 H I beam Horizontal Welding production line machinery automatic h beam welding machine
H beam diemsnion
Web height 300-1500mm
Web thickness 5-10mm
Flange width 150-500mm
Flange thickness 5-20mm
Workpiece lenght 5~15m
Inclination of H beam ≤8°
Welding type single arc and double wire saw welding
Welder DC1000, Lincoln, USA
Welding speed 300-1500mm/min(step less speed adjustment)
Welding wire dia φ1.6
Machine power about 350KVA
Voltage 380V,50Hz, 3ph
3.Products of HW15 H I beam Horizontal Welding production line machinery automatic h beam welding automatic h beam welding machine machine
4.Advantage of HW12 H I beam Horizontal Welding production line machinery automatic h beam welding machine
5.Machine seat and support column process of HW12 H I beam Horizontal Welding production line machinery automatic h beam welding machine
Steel box column processed on CNC machining center, to make sure good fitting and high strength
6.Strict and serious quality testing for HW15 H I beam Horizontal Welding production line machinery
There are two moving quality inspectors at each process, and the manager for each shift and monitor the production closely. Inspect and correct the parts after machining before assembling.
7.Factory and Workshop show for HW15 H I beam Horizontal Welding production line machinery
8. Package and shipment for HW15 H I beam Horizontal Welding production line machinery
9. Warranty and Service after sales for HW15 H I beam Horizontal Welding production line machinery
Warranty time: 12months since machinery installation finished.
Service after sales:
Professional Installation and training at customer spot factory,during time decides by different machine.
Lower price of consumable parts than markets .
Trouble response: 24hours online reply. If broken parts is not comsumable parts or breaks by wrong operation, we can send the broken parts free once confirmed.
Engineer service available overseas.
10.Application of HW15 H I beam Horizontal Welding production line machinery
Cranes manufacture, steel structure manufacture,bridge building,h beam build up,automatic light h beam welding,spot welding machine, steel fabrication
