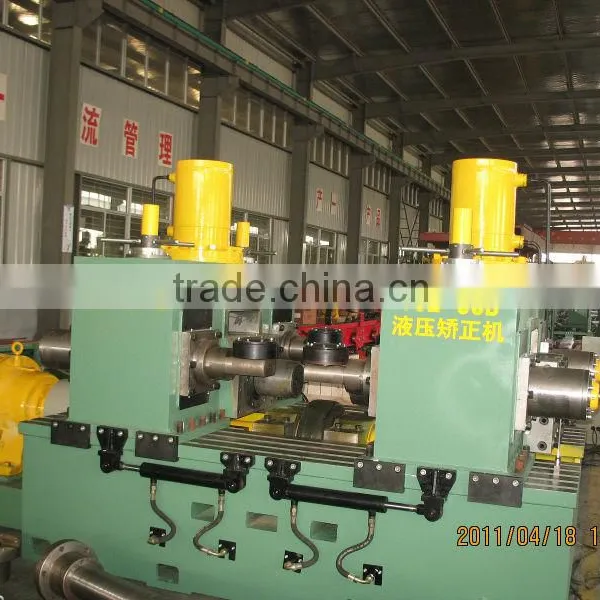

Help CenterYJZ80B H I BOX Beam Plate Hydraulic Straightening Machine
Related Products
-
ZHJ15 H I Beam 3 in 1 Combination Automatic Welding MachineUS$ 35,000 - 50,000MOQ: 1 Unit -
WUXI H I BOX Beam Build up Welding Automatic h Beam Production EquipmentUS$ 50,000 - 69,900MOQ: 1 Set
-
H Beam I Beam Box Beam Automatic Submerged Arc SAW Welding DeviceUS$ 10,000 - 30,000MOQ: 1 Set
-
HW12 H I C Beam Horizontal Welding Production Line MachineryUS$ 50,000 - 100,000MOQ: 1 Set
-
H C I Beam Horizontal Welding Production Line Machinery Automatic h Beam Welding MachineUS$ 50,000 - 100,000MOQ: 1 Set
Specifications
H I BOX Beam Plate Hydraulic Straightening Machine1.H / I beam Web height: >200mm
2.H / I beam Flange thickness: 20 - 60mm
1. YJZ60A H I BOX Beam Plate Hydraulic Straightening Machine technology
1 |
Flange thickness |
mm |
8-100 (ST37),8-60(ST52) |
2 |
Flange width |
mm |
200-800 |
3 |
Web height |
mm |
>450 |
4 |
H beam length |
mm |
4000-16000 |
5 |
Web thickness |
mm |
8-60,80 |
6 |
Hydraulic |
1 set, Chinese or other brand customer choose |
|
7 |
Straightening(leveling) speed |
mm/min |
6000 |
8 |
Roller table length |
mm |
24000 |
2. YJZ80B H I BOX Beam Plate Hydraulic Straightening Machine work process
YJZ60 hydraulic straightening machine is specially designed for the straightening of Heavy duty H beam, which has big different with the normal H beam straightening machine. It adopt the straightening principle of pressing wheel stretching at same axis line, and the up-pressing wheel is controlled by hydraulic cylinder to up/down moving. It has the advantages of equal receiving force on flange when straightening, small rebounding after straightening, simple structure and easy operation etc. The equipment is fitted with floating roller structure, which is hydraulic controlled. It is the very important equipment for producing Heavy duty H beam.
3.Application of YJZ80B H I BOX Beam Plate Hydraulic Straightening Machine
Cranes manufacture, steel structure manufacture,bridge building,h beam build up,automatic light h beam welding,spot welding machine, steel fabrication
4.Advantage of YJZ80B H I BOX Beam Plate Hydraulic Straightening Machine
Easy operation, automatic welding,easy installation,lasting life
5.Machine seat and support column process of YJZ80B H I BOX Beam Plate Hydraulic Straightening Machine
Steel box column processed on CNC machining center, to make sure good fitting and high strength
6.Strict and serious quality testing for YJZ80B H I BOX Beam Plate Hydraulic Straightening Machine
There are two moving quality inspectors at each process, and the manager for each shift and monitor the production closely. Inspect and correct the parts after machining before assembling.
7.Factory and Workshop show for YJZ80B H I BOX Beam Plate Hydraulic Straightening Machine
8. Package and shipment for YJZ80B H I BOX Beam Plate Hydraulic Straightening Machine
9. Warranty and Service after sales for YJZ80B H I BOX Beam Plate Hydraulic Straightening Machine
Warranty time: 12months since machinery installation finished.
Service after sales:
Professional Installation and training at customer spot factory,during time decides by different machine.
Lower price of consumable parts than markets .
Trouble response: 24hours online reply. If broken parts is not comsumable parts or breaks by wrong operation, we can send the broken parts free once confirmed.
Engineer service available overseas.
10.Exhibitons and products YJZ80B H I BOX Beam Plate Hydraulic Straightening Machine
