8 port opto-isolated rs485 hub splitter distributer1 RS232/485 Output
1500W lightning protection
2500V isolation voltage
8 port opto-isolated rs485 hub splitter distributer details:
Performance parameters
1. Industrial grade RS485 hub splitter distributer;
2. 1 channel RS232/485 to 8-channel RS485;
3. Interface characteristics : Interface compatible ELA / TLA 's RS-232C, RS-485 standard
4. Electrical Interface : RS-232C interface 5PIN terminals 1-3 feet RS-485 interface 5PIN terminals 4-5 feet
5. Transmission media: twisted pair or shielded cable
6. Working mode: asynchronous half-duplex
7. Signal indication: eleven Signal Indicators Power (PWR), transmit (TXD), Receive (RXD), fault (E1-E8)
8. Isolation: isolation voltage 2500VRMS 500VDC continuous DC / DC isolation module
9. Transmission rate : 300BPS-115.2K
10. Protection Class : RS-232 interface to +15 KV ESD protection RS-485 interface 1500W per line lightning surge protection
11. Transmission distance : 5 km (115,200-300BPS)
12. Size : 210mmX130MMX33mm
13. Use of the environment :-40C to 80C, relative humidity 5 % to 95%
Board and the signal indication of the product

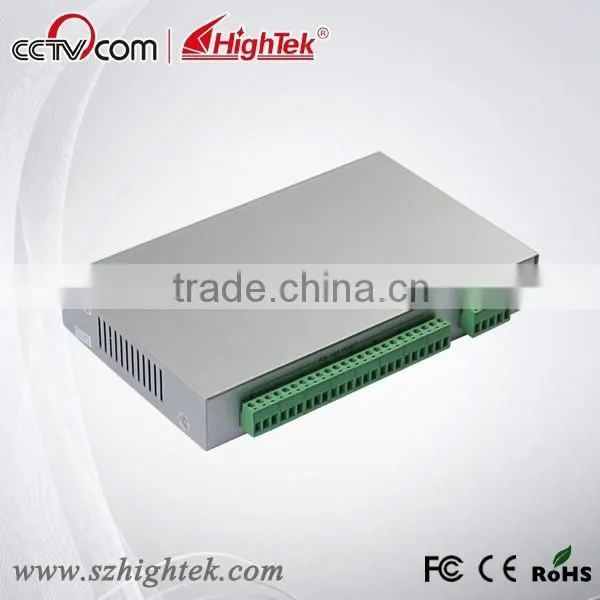

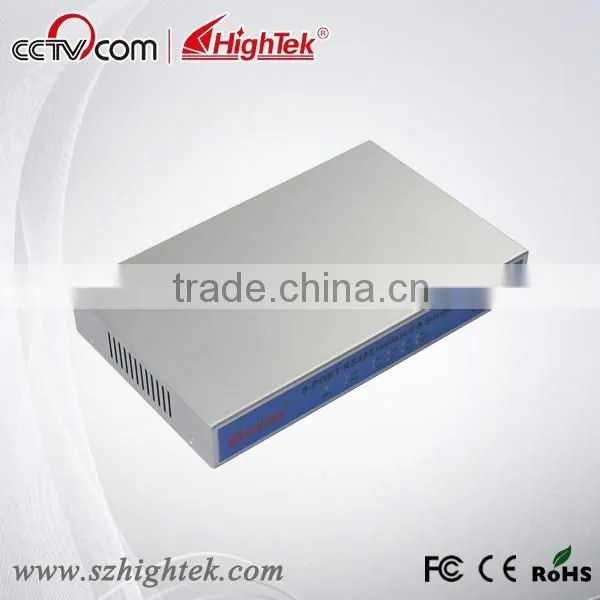

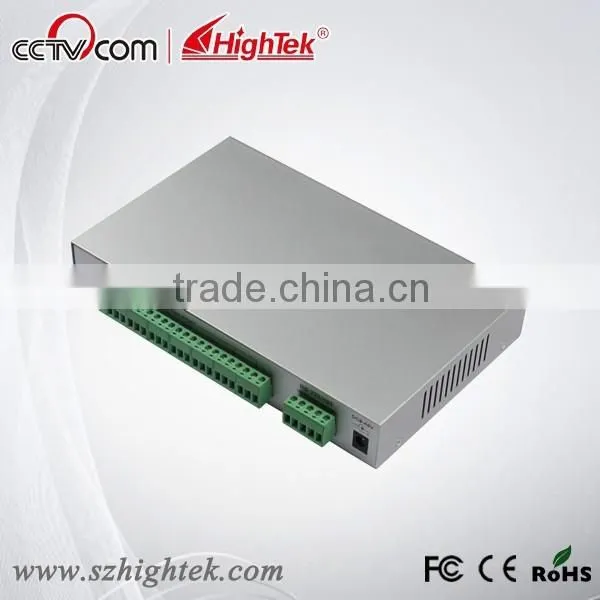

HK-5112 's front panel there are 11 indicators , there is a 5PLN rear panel terminals to RS-485, RS-232 input terminals 8 3PLN of eight port is optically isolated input.
4, The electrical interface and their definitions
1. RS-232/RS485 input interface definition
5PIN |
Define |
Single |
1 |
TXD |
OUT |
2 |
RXD |
IN |
3 |
GND |
|
4 |
485+ |
|
5 |
485- |
|
2. RS-485Pin Define:
3PIN |
RS-485 |
1 |
485+ |
2 |
485- |
3 |
GND |

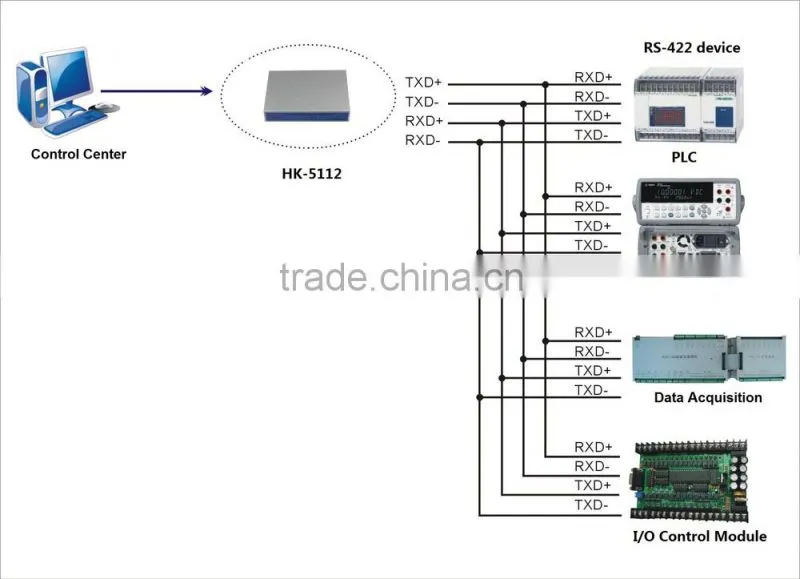

HK-5112 eight RS-485 Hub Application
Master serial (RS-232C) to eight high-reliability applications RS-485 interface
485 have been extended to eight high-reliability applications RS-485 interface, RS-485 bus at the same time in parallel 128 RS-485 hub.
Master serial (RS-232C) to multiple high-reliability applications RS-485 interface. Or have been extended to more than 485 high-reliability applications RS-485 interface, RS-485 bus at the same time in parallel 128 RS-485 hub.
RS-485 port failure warning and protection
RS-485 port fault alarm and protection is the solution to connect multiple RS-485 devices , an effective way to enhance its reliability , HK-5112 has four lower machine ports, and each port has short circuit protection, and can work in shutdown mode. When either an RS-485 port circuit only affects its RS-485 bus system , does not affect other RS-485 interface connection system to work properly, the user can quickly determine fault warning light failed port and other connected faulty equipment .
Power and lightning protection
HK-5112 uses a small external power supply specifications for DC9-48V/350MA, refrain from casual users to use other without the pressure steady power supply to avoid damage to the product .
HK-5112 for all RS-485 interface has a 1500W lightning protection , can effectively inhibit the Lightning (lighting) and ESD, user communication process in order to ensure safe and reliable grounding , to avoid floating.
